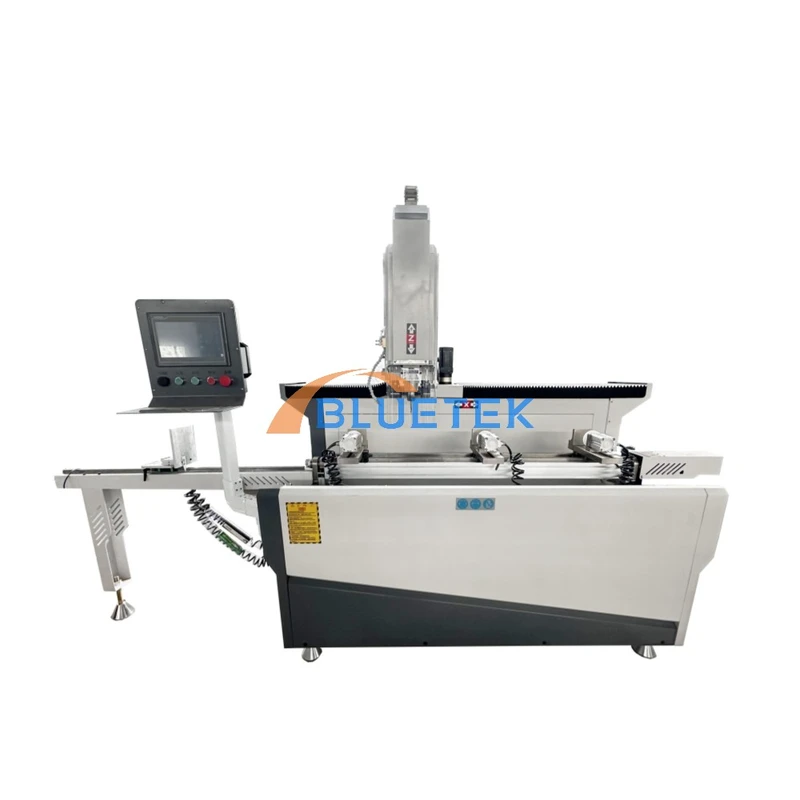

MAIN FEATURES
1. Comprehensive functions. PVC window CNC copy router adopts servo system to realize milling, drilling, engraving, and other processes.
2. Efficient and fast. The work surface can be automatically turned over 90 degrees, 0 degrees and -90 degrees, and one installation can complete the processing of three sides, which is efficient and fast.
3. High processing accuracy. The effective processing range of the X-axis is 1200 mm, the transmission pair adopts a helical gear rack; the Y-axis and Z-axis adopt ball screws. servo motors are used for X, Y, and Z axes. High precision and high stability.
4. Simple operation. The system of aluminum window cnc milling machine stores almost all the graphics of door and window-shaped holes, only need to select the graphics and enter the size, CNC milling can automatically complete the milling, very simple and convenient.
5. Security. Aluminum profile cnc milling machine is equipped with a phase sequence protection device, which can protect the equipment when the phase sequence is disconnected or connected incorrectly.
TECHNICAL SPECIFICATION
| Model | SKZX-A3-CNC-1200 | SKZX-A3-CNC-2000 |
| X Axis Process Range | 1200mm | 2000mm |
| Y Axis Process Range | 150mm | 150mm |
| Z Axis Process Range | 150mm | 150mm |
| Spindle Power | 3.5 KW | 3.5 KW |
| Total Power | 6.0 KW | 6.0 KW |
| Tool Clamp Size | ER25 | ER25 |
| Air Pressure | 0.6-0.8 MPa | 0.6-0.8 MPa |
| Process Angles | -90° ,0°, +90° | -90° ,0°, +90° |
| Spindle Speed | 18000 rpm | 18000 rpm |
| Overall Dimension | 3300*1500*2000mm | 4100*1500*2000mm |
| Gross Weight | 500 KGS | 600 KGS |

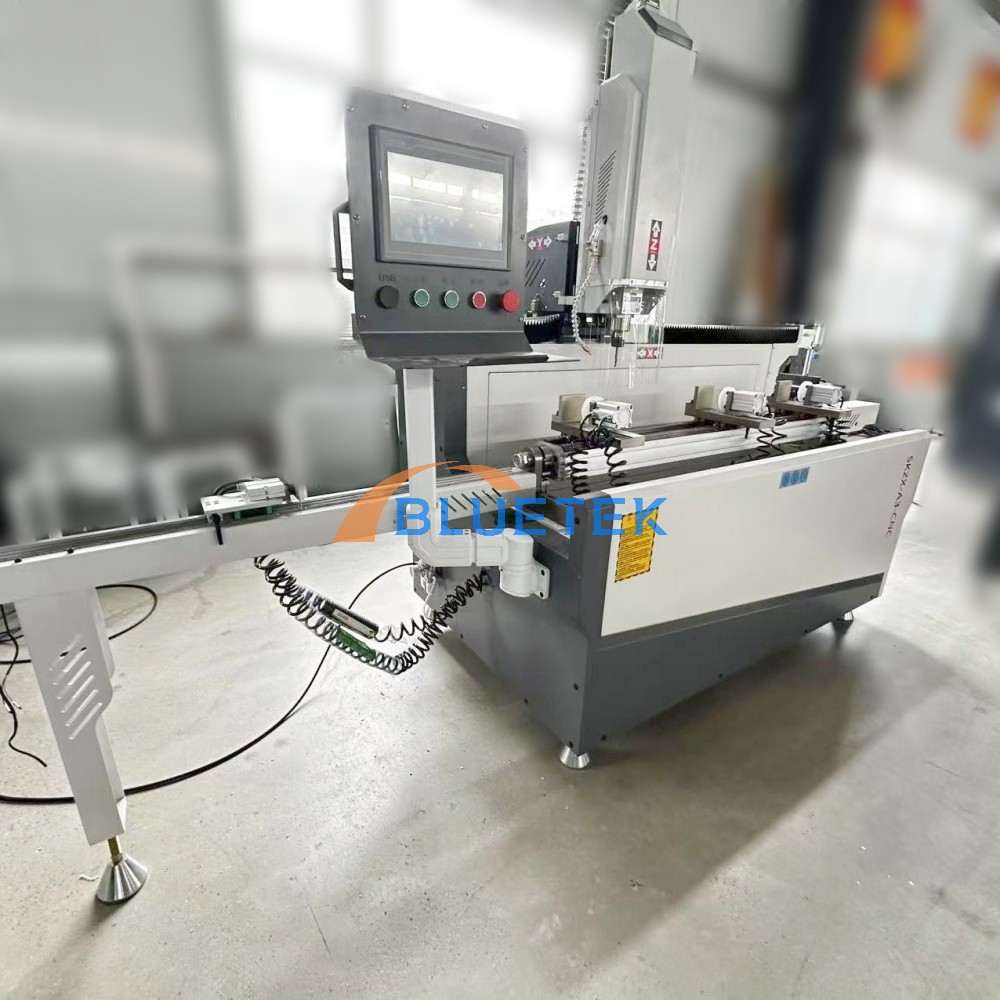

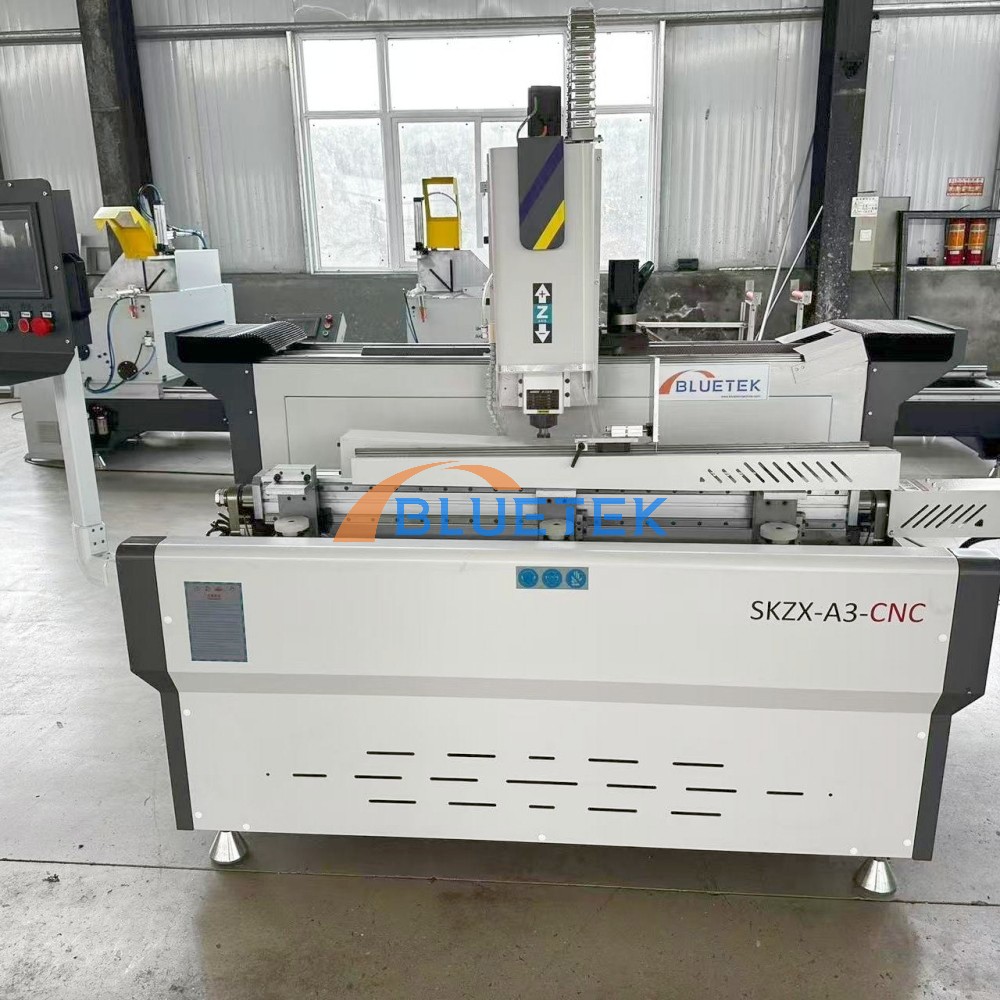

DETAILS OF PVC WINDOW CNC COPY ROUTER

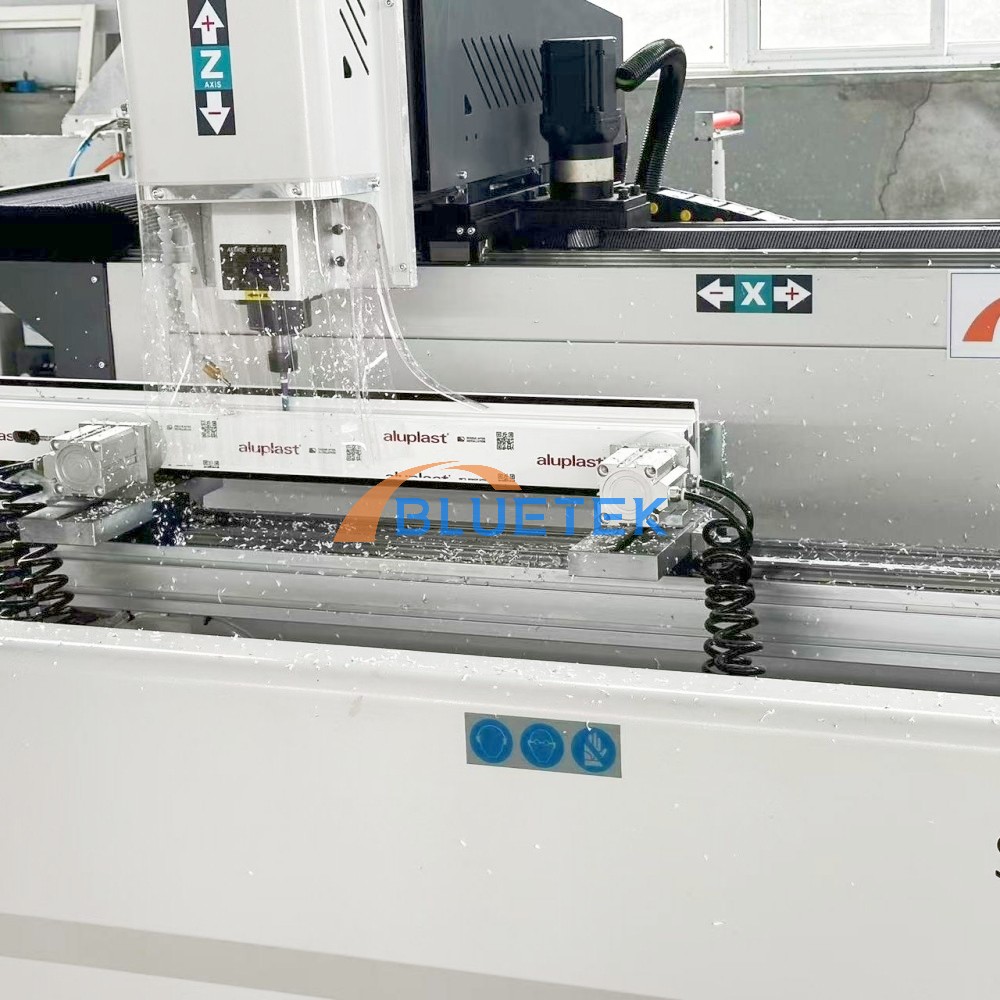

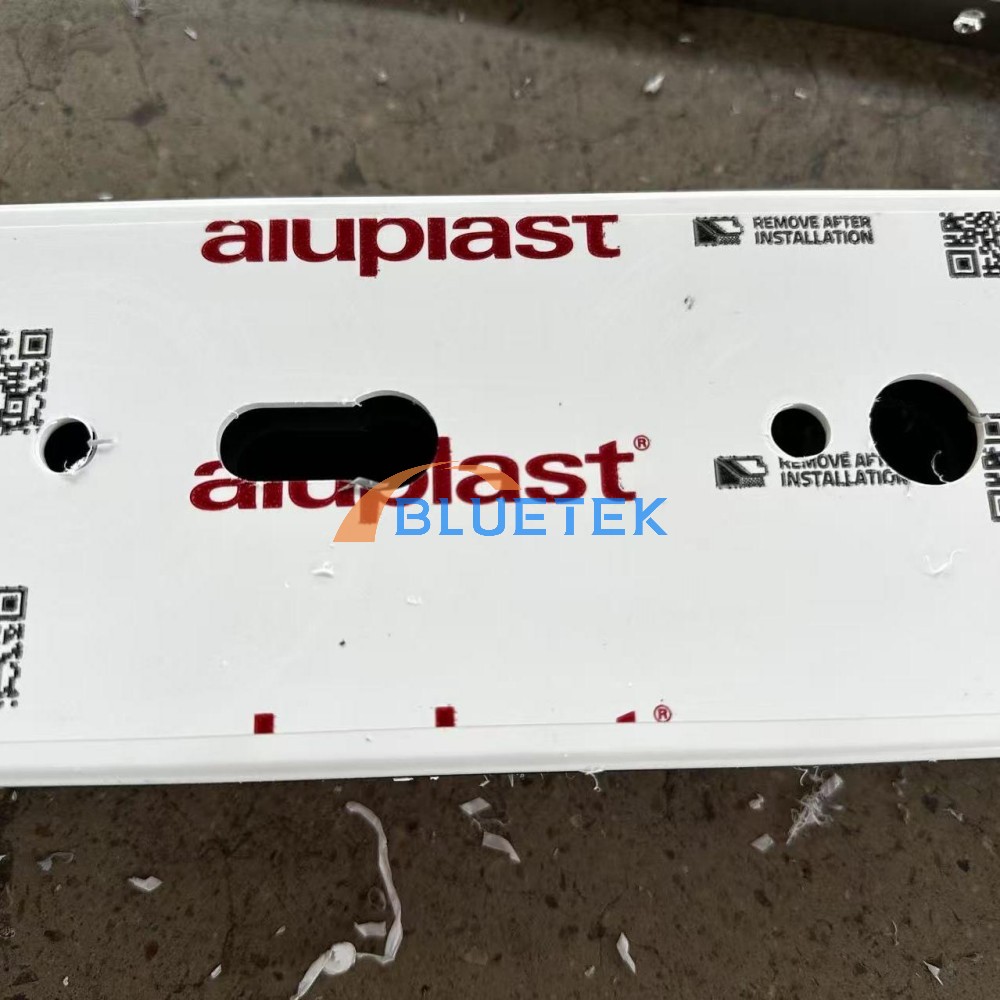

This machine is used for milling drilling hole and slot of pvc window door, aluminum window door, such as keyholes, handle holes, drain holes, air pressure balance holes, other special-shaped holes, etc.
Select the graphics in the library, enter the size data, such as length, width, radius, diameter, etc., set the X-axis and Y-axis positions of the image, and save it to the system. When processing, you only need to select the corresponding file name to automatically complete the milling.

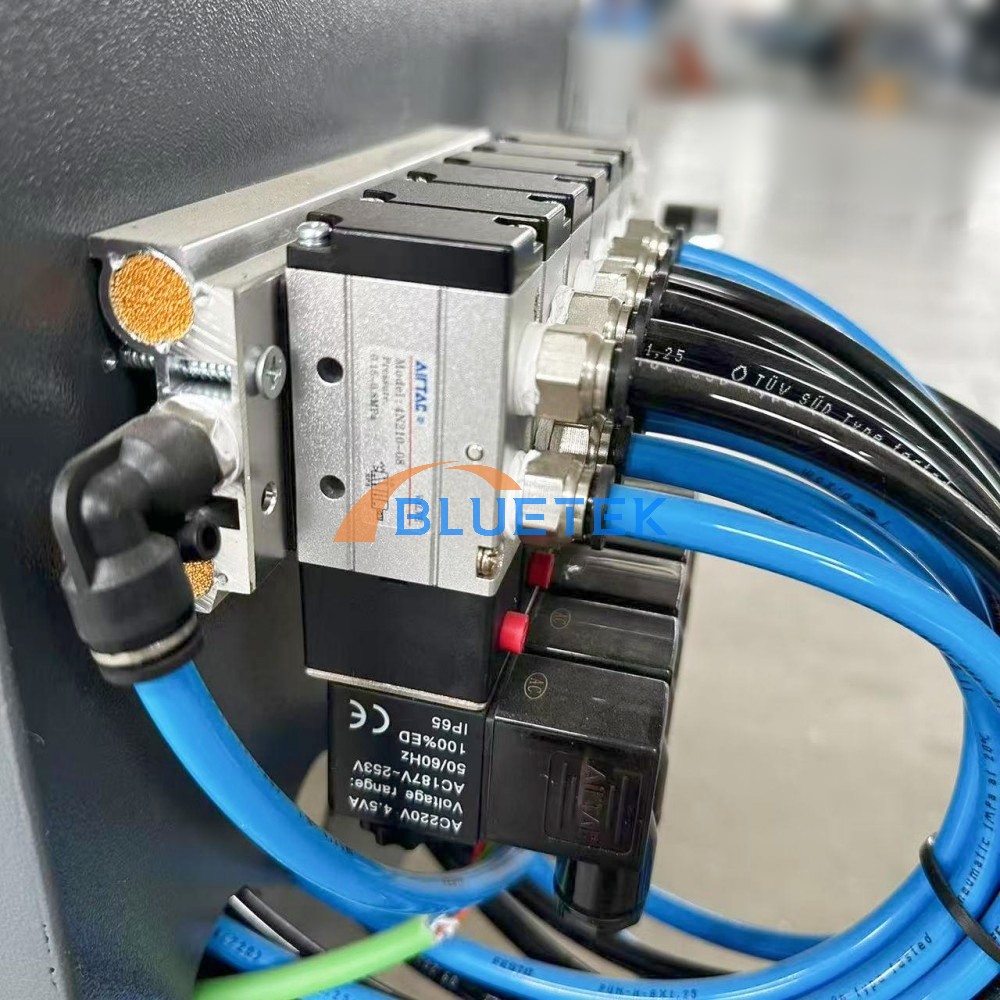

The pneumatic components are from Taiwan AirTAC, with stable and reliable quality.

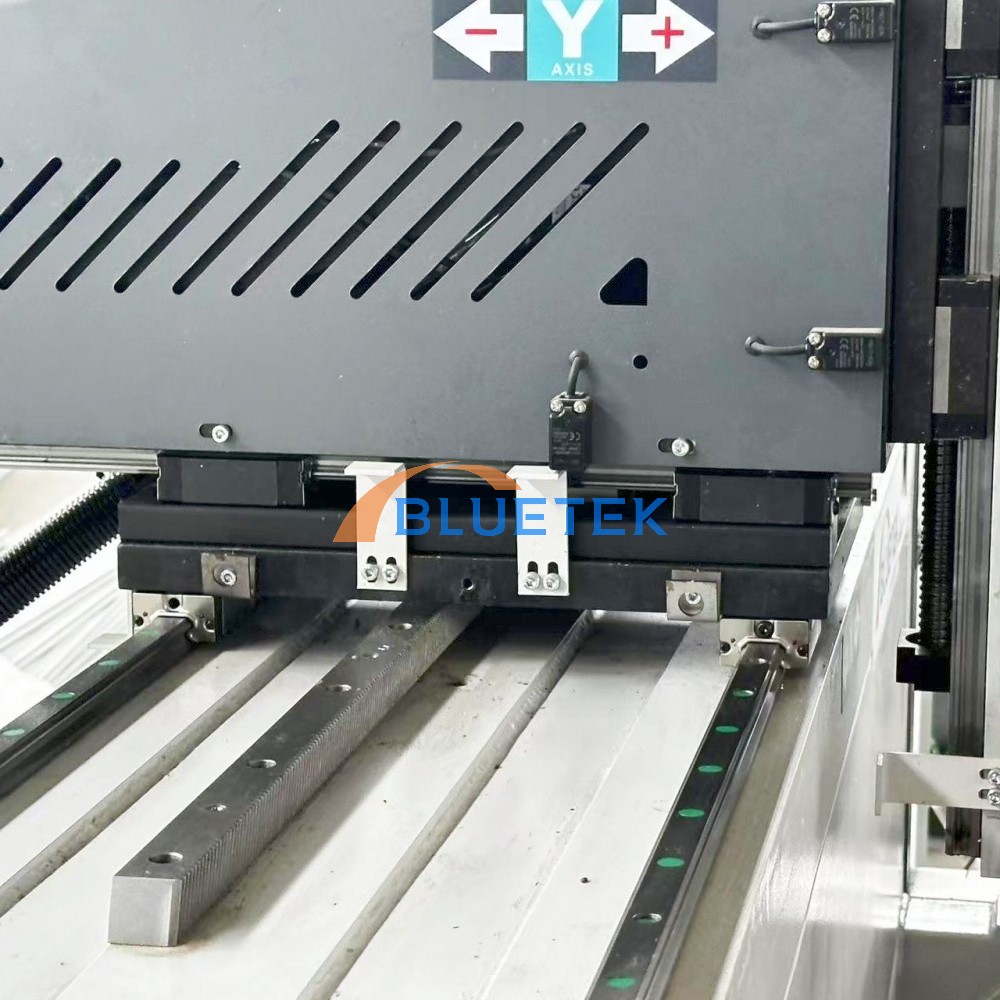

Linear guides and helical gear racks are used to improve repeated positioning accuracy.
Adopt China's well-known operating system and servo motors instead of stepper motors.
ABOUT BLUETEK
BLUETEK is located in Jinan, Shandong, and have been specialized in mid-to-high-end aluminum door and window manufacturing machines, aluminum curtain wall manufacturing machines, PVC door and window manufacturing machines, as well as industrial aluminum processing equipment and solutions for 20 years.

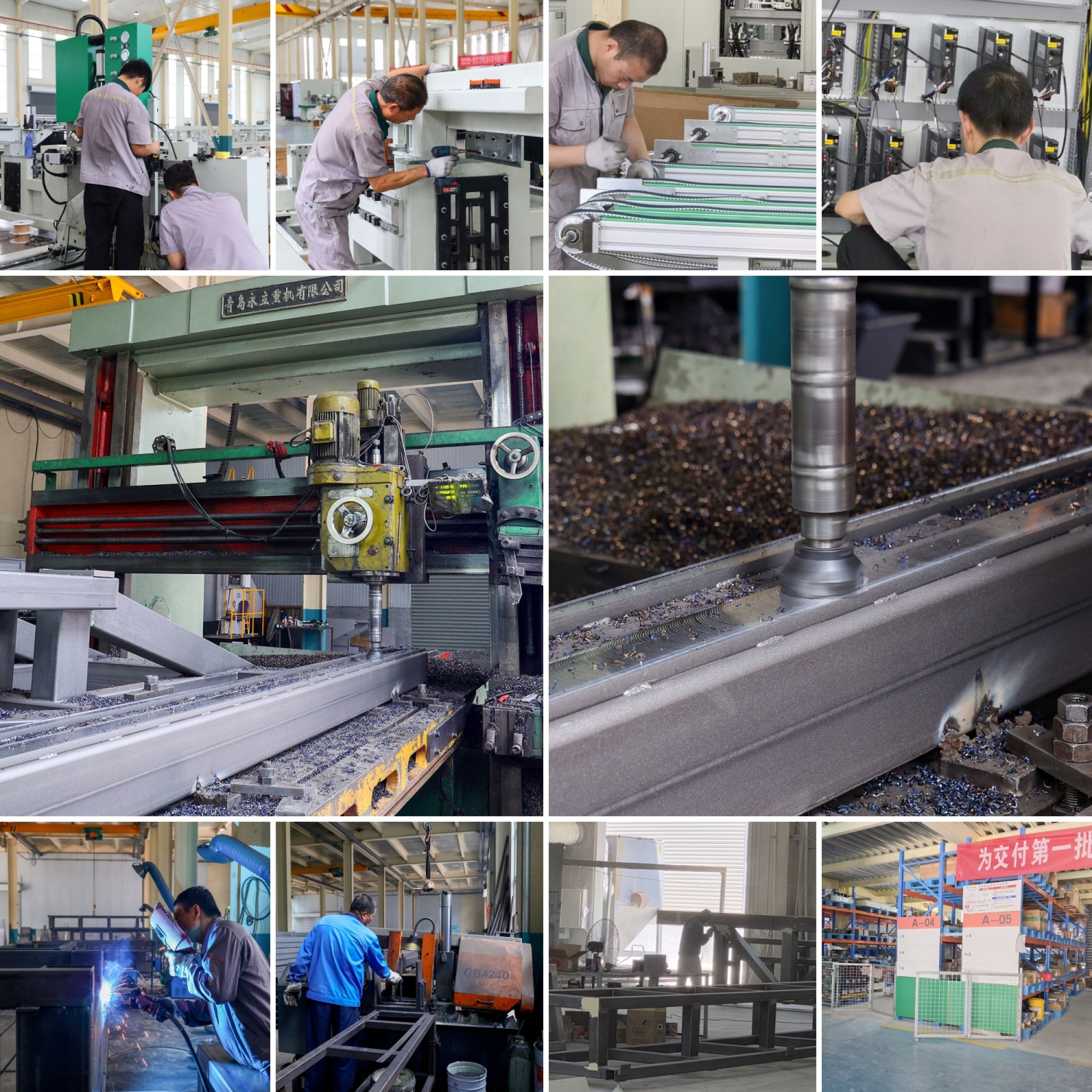

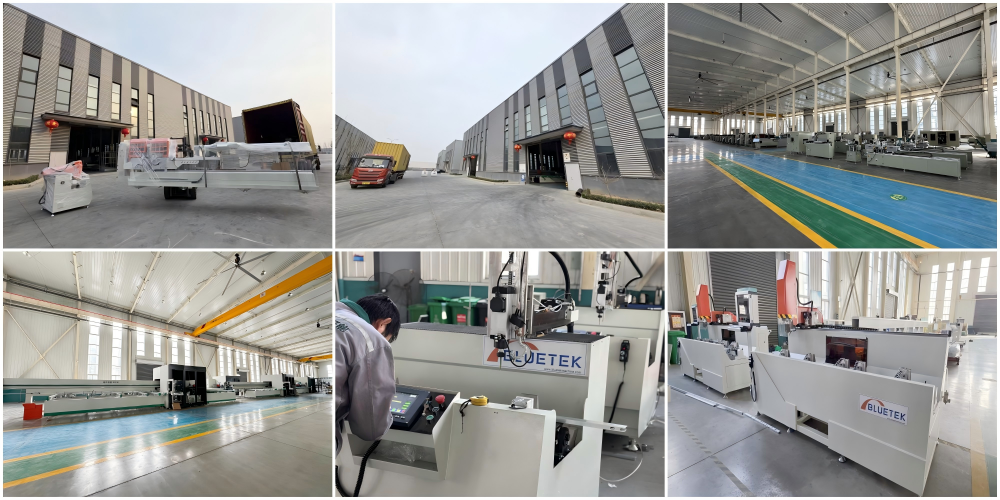

Our company currently has three modern workshops with a total area of 18,000 square meters, with its own machining, sheet metal processing, and spraying. The total number of employees is more than 100, with a research and development team of more than a dozen people.
Professional exhibitions at home and abroad

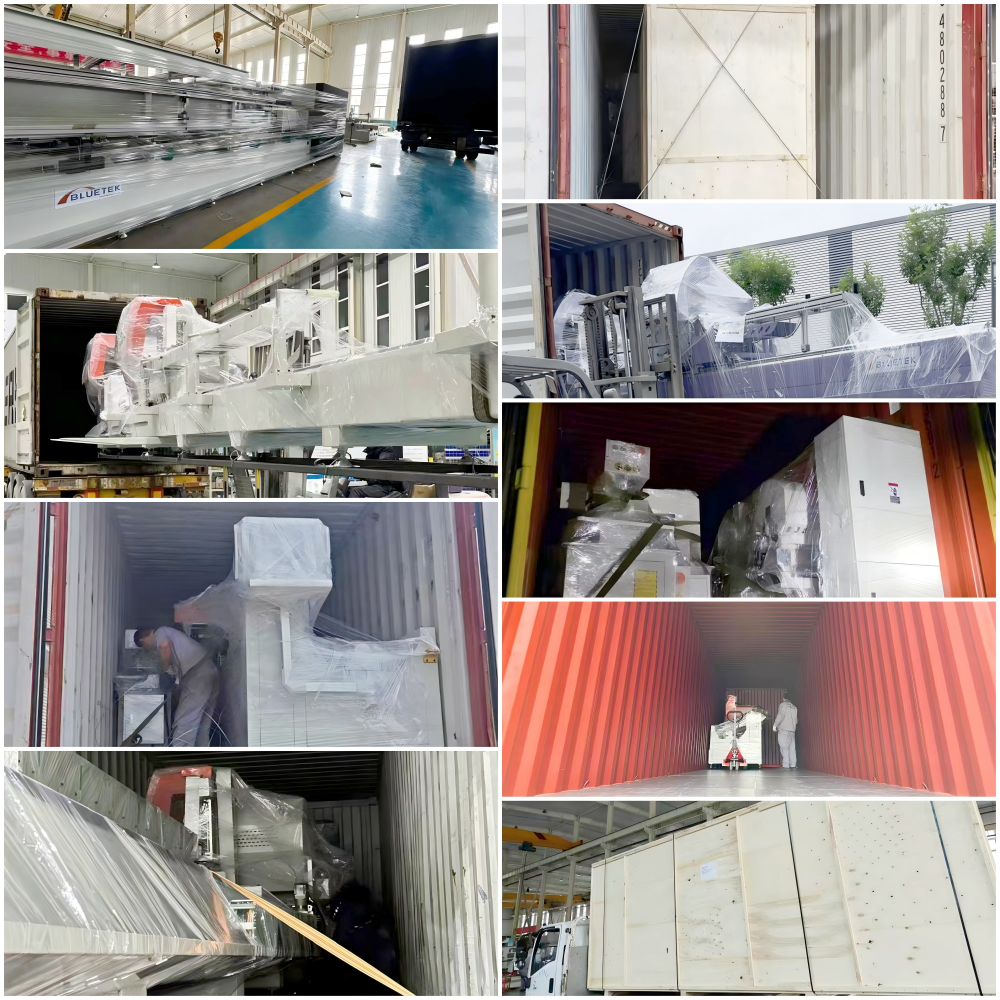

Transportation mode: By sea, rail, land
Loading mode: FCL, LCL
Packing: plastic waterproof film + plywood box
