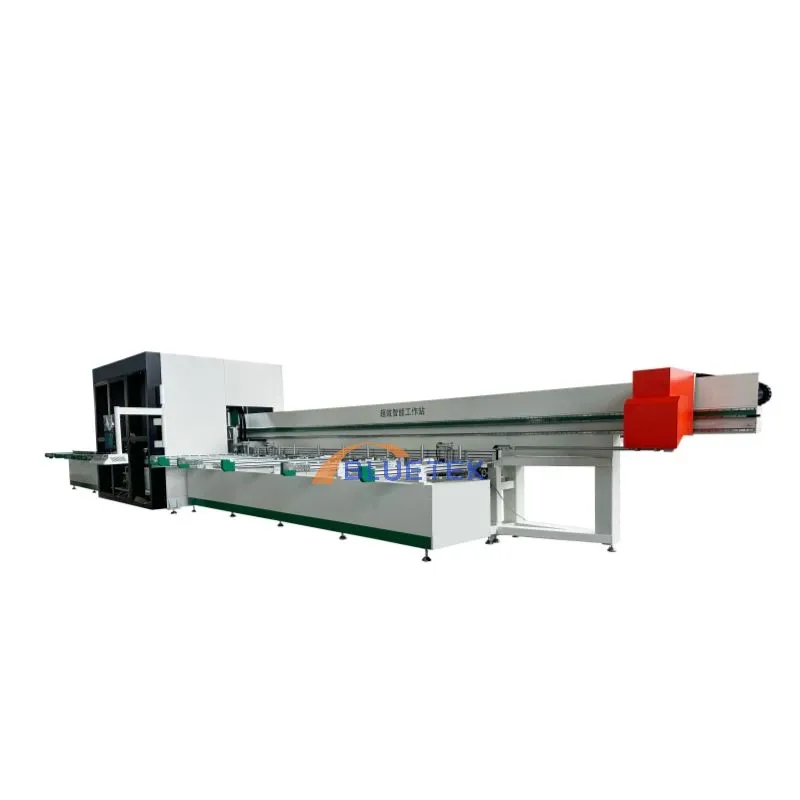

· SZA610 upvc window door machining center is an intelligent workstation specially developed to improve the production efficiency and processing accuracy of UPVC doors and windows and reduce the labor intensity of workers. It can complete profile loading, feeding, automatic positioning, 45 to 90 degree cutting, milling and drilling (lock hole, handle hole, drain port, air pressure balance hole, installation hole, etc.)

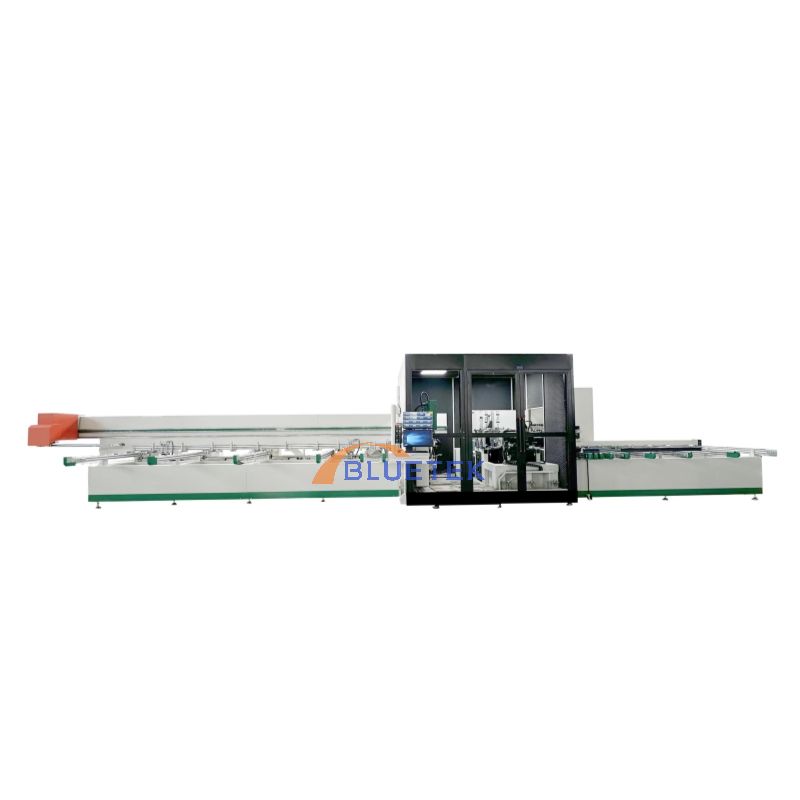

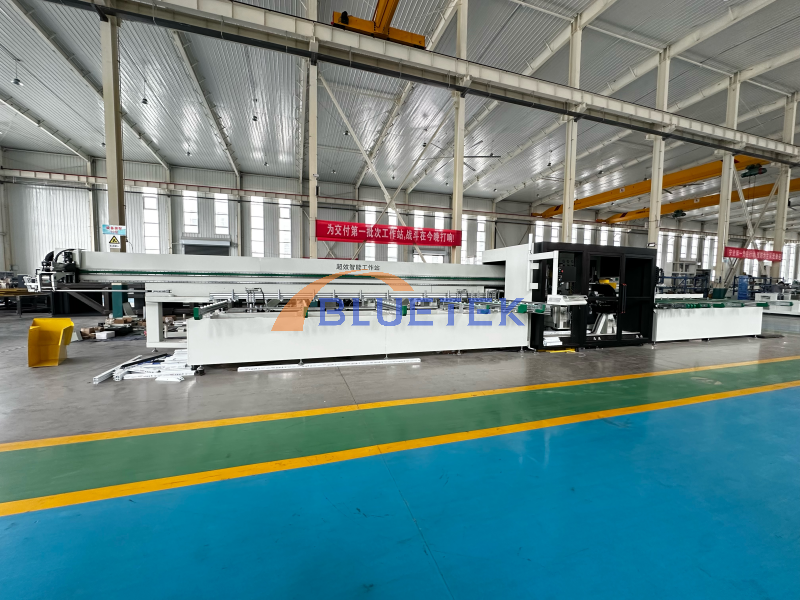

· The appearance of machine adopts a simple and practical design language, which conforms to contemporary aesthetics. The structural design is very rigorous and reasonable. The machine is divided into a loading part, a processing part (cutting, milling holes) and a unloading part.
· In order to make the machine more convenient for export transportation, the size of the whole machine is reduced in proportion and can be loaded in a 40-foot container, which greatly reduces the difficulty of loading and unloading, and also reduces the transportation cost.

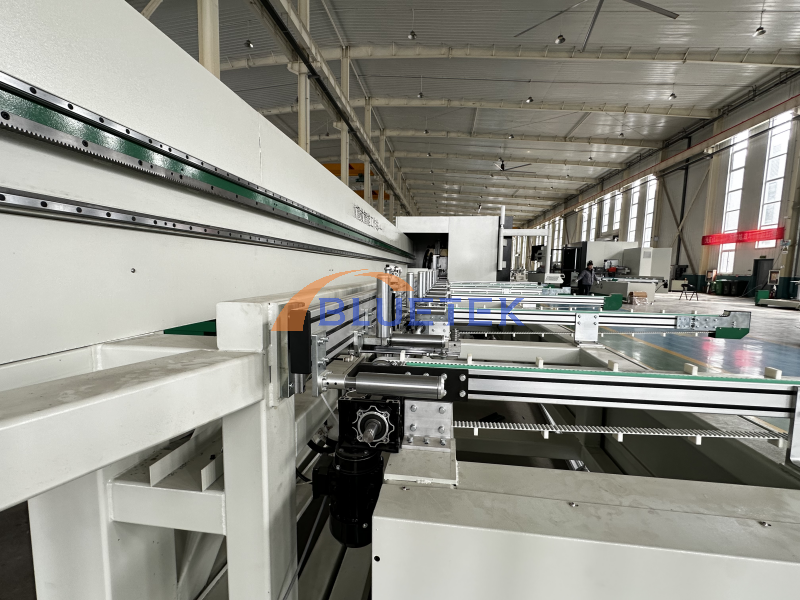

· The loading part can hold 9 profiles at the same time and discharge them in a cycle. The servo-controlled mechanical arm can achieve precise clamping and fast feeding.

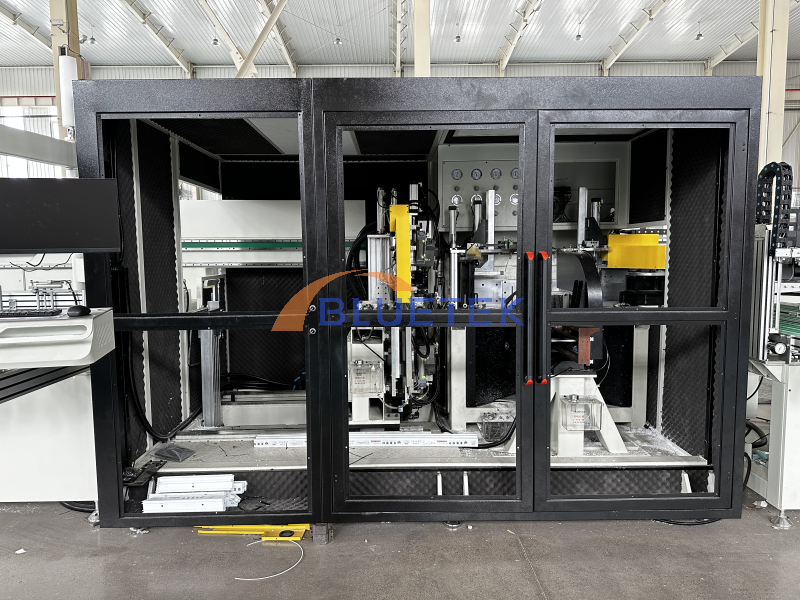

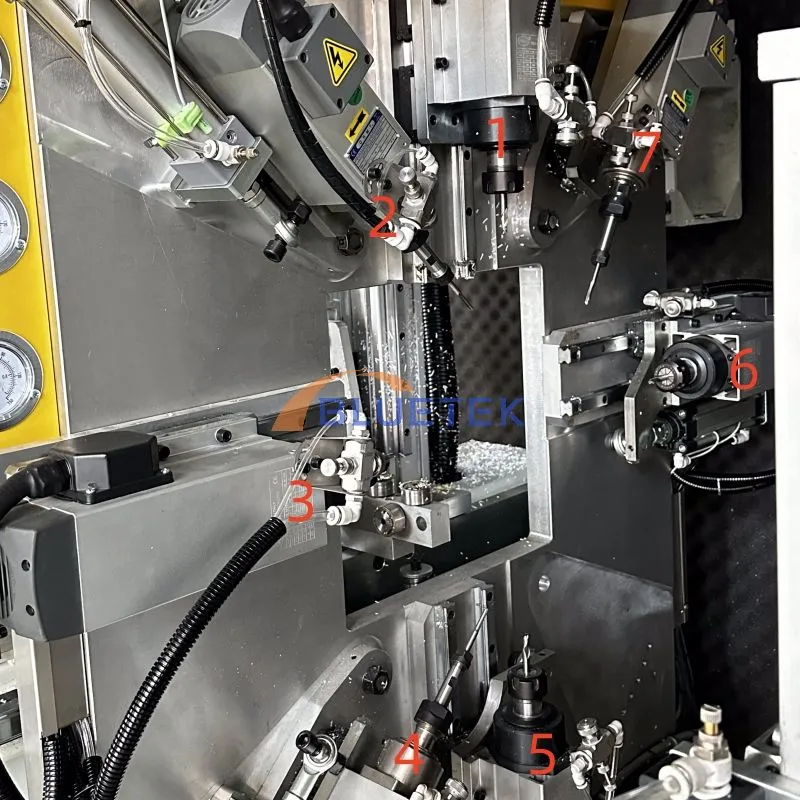

· The processing part of UPVC Window Door Machining Center is divided into cutting and milling. The two areas are processed simultaneously without interfering with each other. The profile can be positioned once to complete angle cutting, milling, drilling, and double-angle double-station alternating cutting, which increases efficiency by 80%.

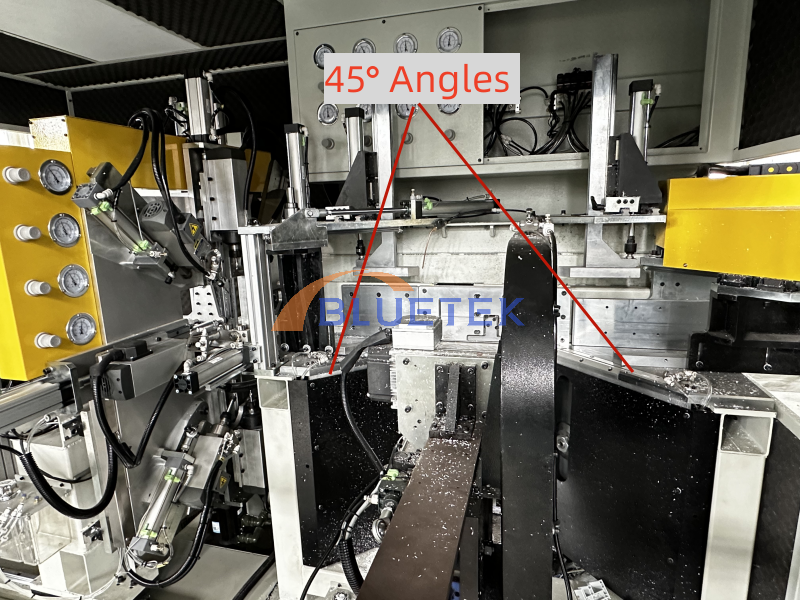

· Double blades for cutting 45° angles, adopts Up cutting mode, with avoidance function, the saw blade moves horizontally before retracting to prevent the saw blade from rubbing against the end face of the profile.

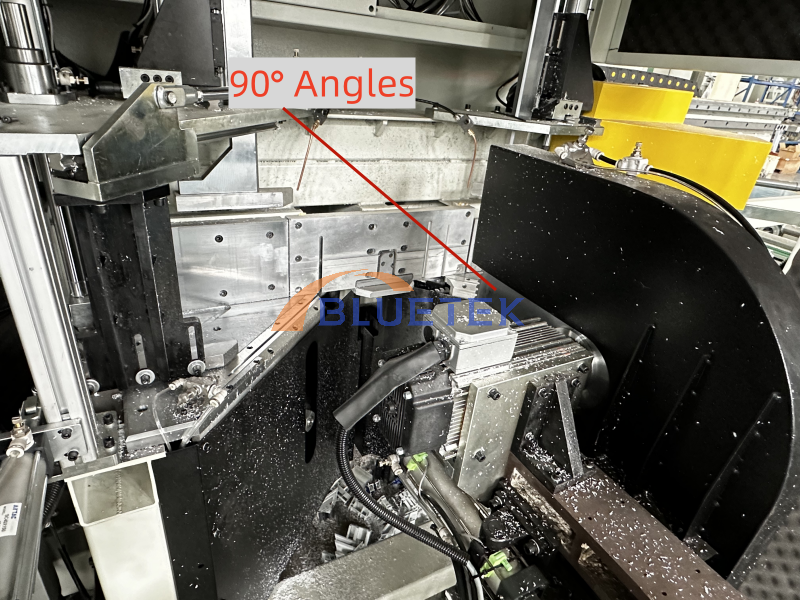

· 90° angle cutting by horizontal blade.

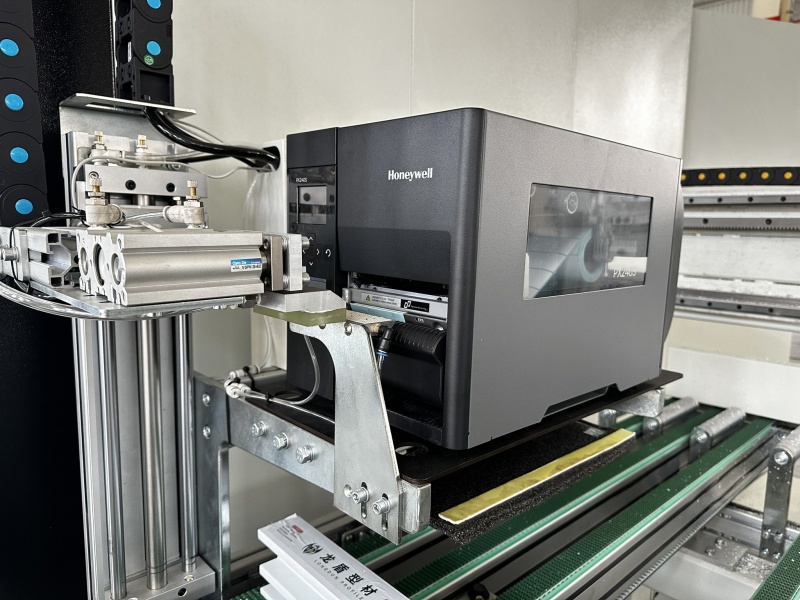

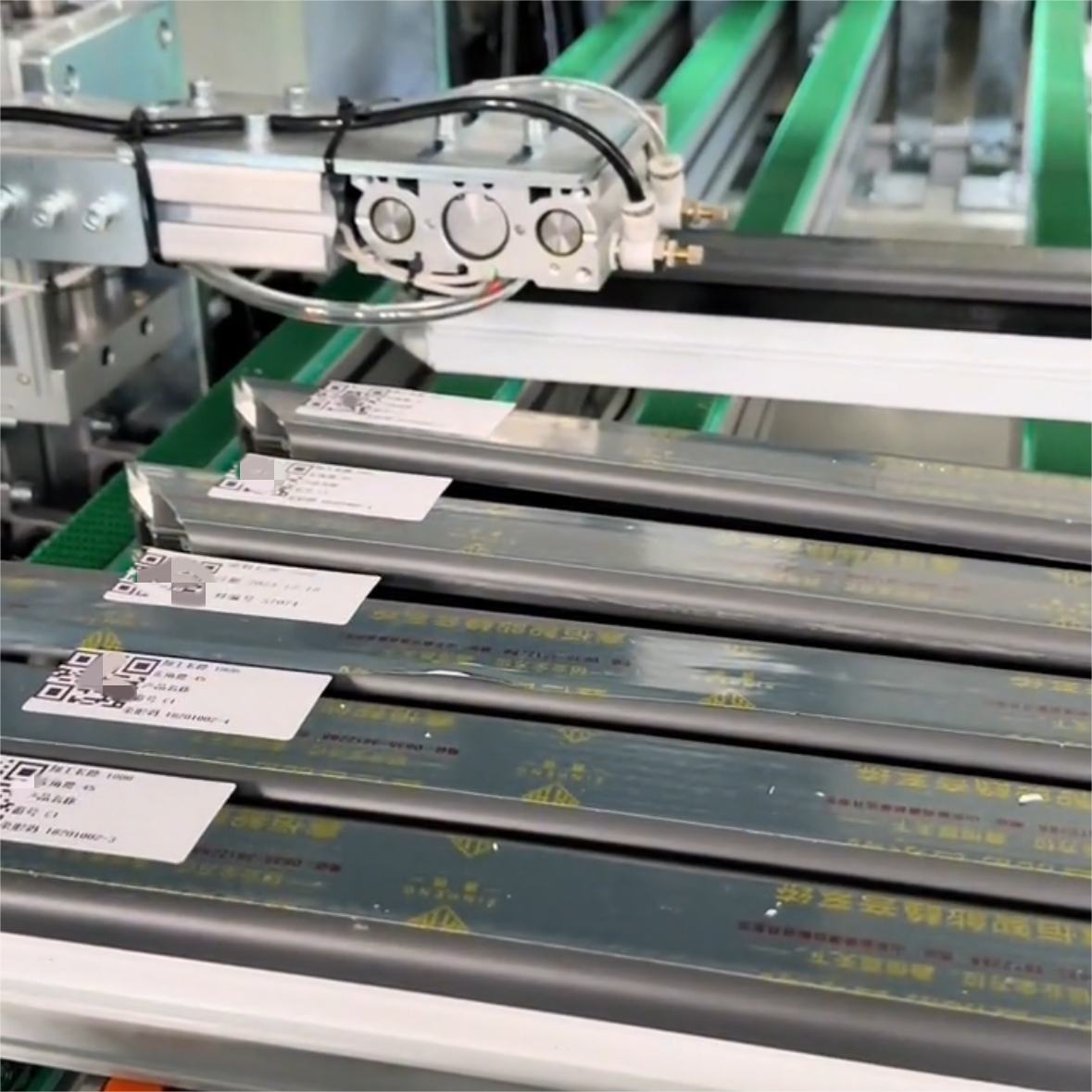

· Well-known label printer hardware and system, the printed content can be edited independently, and can print barcodes or QR codes, profile information, process information, quantity, etc.
TECHNICAL PARAMETERS OF SZA610 UPVC WINDOW DOOR MACHINING CENTER
Power voltage | 380V 50Hz 3 Phase |
Working air pressure | 0.6 ~0.8 Mpa |
Air consumption | 200 L / Min |
Total power : | 42.45 KW |
Spindle motor speed | 2850 r/min |
Diameter of saw blades | Φ 550x4.4xΦ30mm 120T |
Cutting angles | 45° , 90°，45° |
Processing range Height * Width | 150*180 mm |
Max. Profile length | 6500 mm |
Cutting accuracy | ±0.1MM |
Manipulator feed stroke | 6500 mm |
Manipulator unloading stroke | 1000 mm |
Blade cutting speed | 20~25 M/min |
Overall dimensions | 17000*4000*3000 mm |
Package Size | 11600*2200*2200mm. |
Gross weight | 8000 KGS |
MAIN CONFIGURATION
Control System | HAN’S , China Top |
PLC | HAN’S , China Top |
Servo Motor | INOVANCE, China Top |
Servo Drive | INOVANCE, China Top |
Frequency Converter | INOVANCE, China Top |
Reduction Gear | Nidec, Japan |
Solenoid Valve | AirTAC, Taiwan China |
Low Voltage Appliances | Schneider, France |
Buttons | Schneider, France |
Power Switch | MEAN WELL, Taiwan China |
Blades | Diamond blade |
