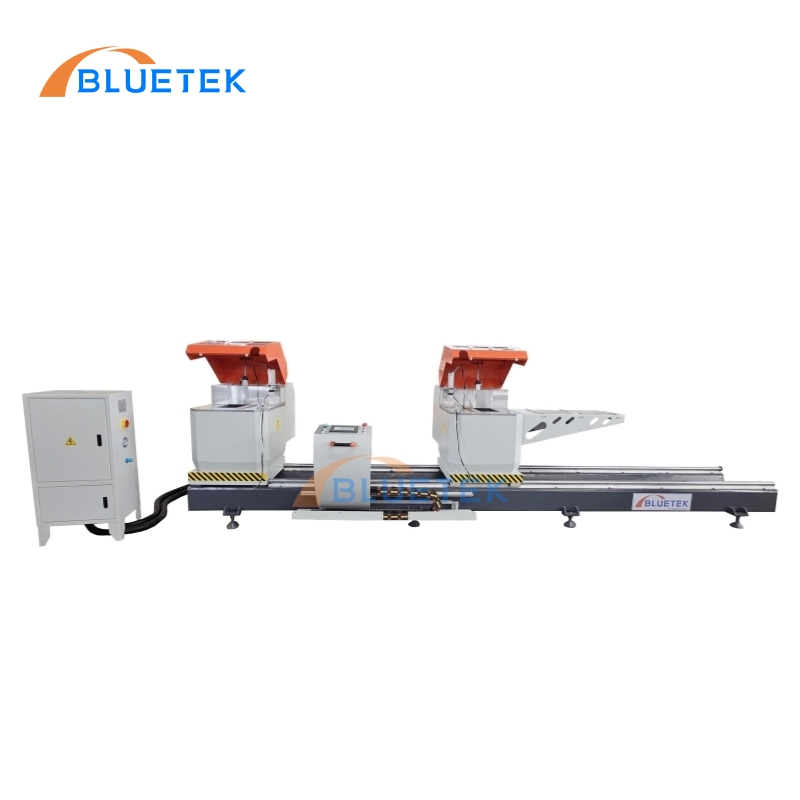

MAIN FEATURES
• CNC high precision vinyl window cutting machine is not only cutting vinyl window profiles, but also aluminum profiles and light metals, such as aluminum door and window profiles, aluminum tubes, aluminum rods, photovoltaic aluminum frames, other aluminum materials, etc.
• Pneumatic swing angles within 45 degrees and 90 degrees, the saw blade feeds from bottom to top.
• Super large cutting range, up to 350 mm wide.
• The right head is positioned by servo motor, matched with helical gear rack, with high repeat positioning accuracy.
• Adopt Taiwan Delta CNC system, including touch screen, PLC, drive, servo motor, etc.
• Multiple cutting modes: manual mode, form mode, ultra-short cutting mode and ultra-long cutting mode.
• Diamond saw blade, longer service life.
• Two-handed operation mode, safer.
• Vertical and horizontal cylinder clamping device.
• Equipped with air gun and cooling spray device.
• Optional: Label printer
• Optional: Barcode scanner
• Optional: Bag vacuum cleaner
TECHNICAL SPECIFICATION
Model | LJZ2E-CNS-500X4200 | LJZ2E-CNS-550X4200 |
Total Power | 5.0KW | 5.0KW |
Input Power | 380V 50Hz 3Phase | 380V 50Hz 3Phase |
Motor Power | 2.2KW * 2 | 2.2KW * 2 |
Motor Speed | 2840 r/min | 2840 r/min |
Air Pressure | 0.6-0.8 MPa | 0.6-0.8 MPa |
Diameter of Blades | Φ500mm×φ30mm | Φ550mm×φ30mm |
Cutting Angles | 45°, 90° | 45°, 90° |
Cutting Width | Max.350 mm | Max.370 mm |
Cutting Height 45° | 110 mm | 125 mm |
Cutting Height 90° | 150 mm | 170 mm |
Cutting Length | 300 ~4200mm | 300 ~4200mm |
Overall Dimension | 5800*1500*1800 mm | 5800*1500*1800 mm |
Net Weight | 1500 KGS | 1500 KGS |
Packing Size | 5800*1550*1800mm | 5800*1550*1800mm |
Gross Weight | 1700 KGS | 1700 KGS |
STANDARD ACCESSORIES
Low-voltage electrical appliances | Schneider , France |
Buttons | Schneider , France |
Solenoid valve | AirTAC, Taiwan China |
Square Guide Rail | HIWIN,Taiwan China |
Cylinder | EASUN, Italian joint venture |
Saw Blade | Diamond Saw Blades |
Motor | Anhui Zhenyang, China top brand |
Air Filter Device | STNC, China top brand |
DETAILS OF VINYL WINDOW CUTTING MACHINE

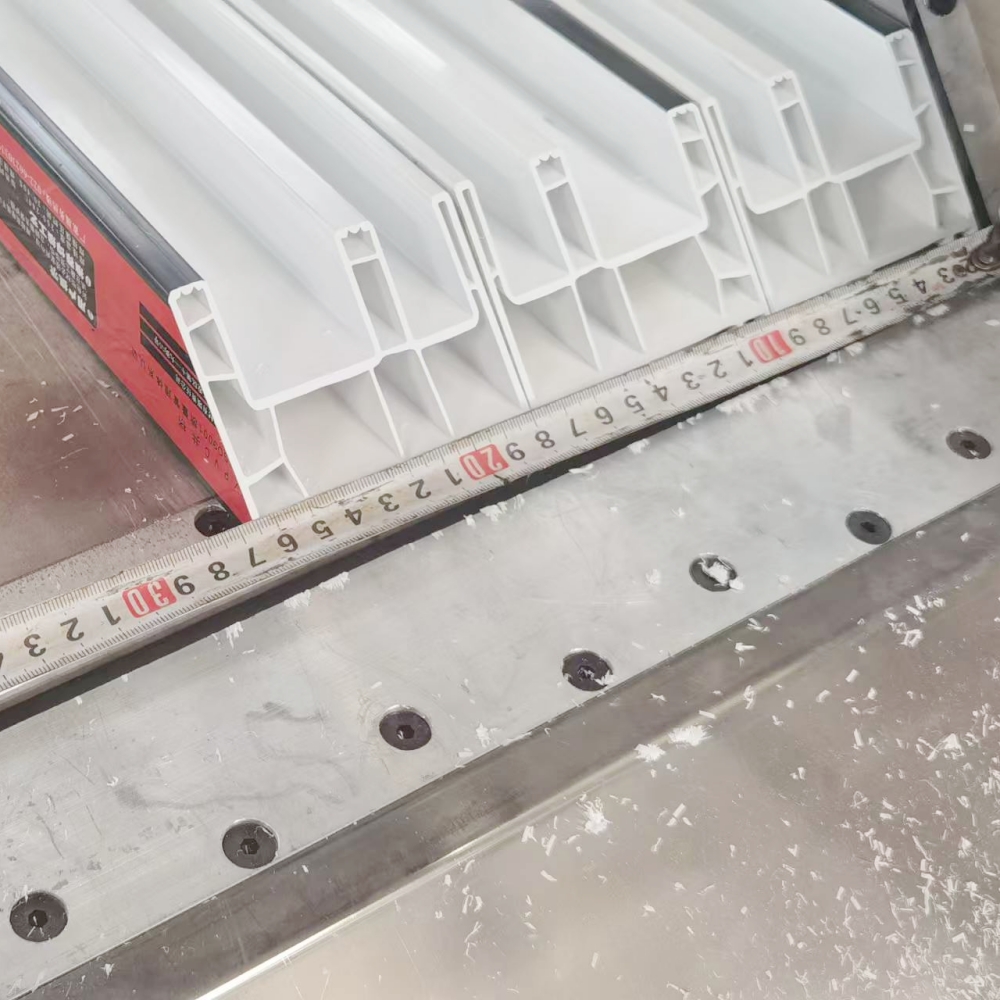

Up cutting for inner 45° and 90° angles, can cut 2-4 pieces of vinyl window frames at same time.

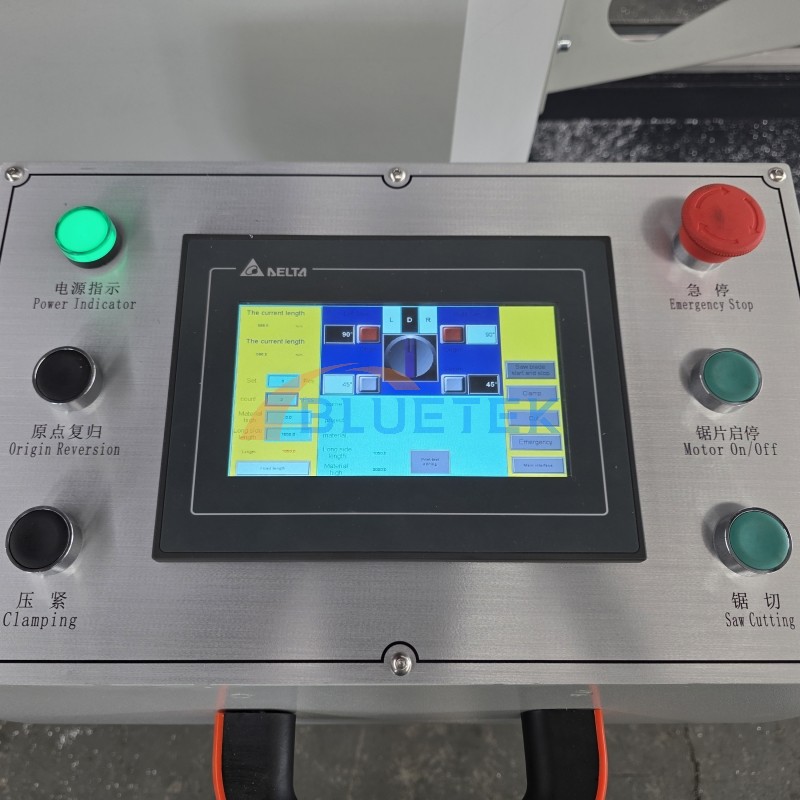

It adopts DELTA CNC system （ Optional system: Siemens, Germany）

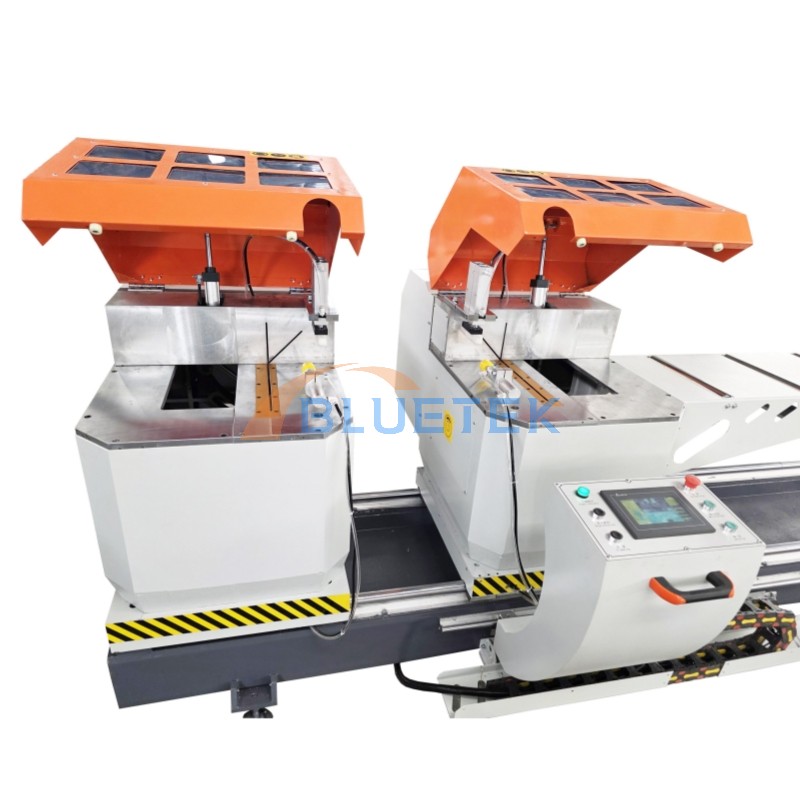

Automatic protective cover, which is safer.

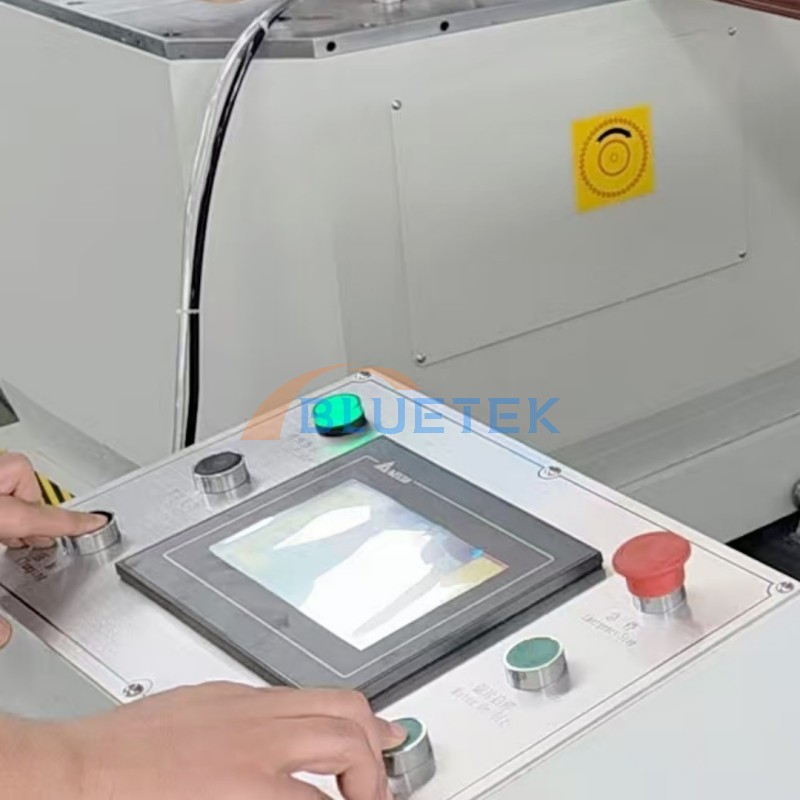

Double buttons control
ABOUT BLUETEK
BLUETEK is located in Jinan, Shandong, and have been specialized in mid-to-high-end aluminum door and window manufacturing machines, aluminum curtain wall manufacturing machines, PVC door and window manufacturing machines, as well as industrial aluminum processing equipment and solutions for 20 years.
Our company currently has three modern workshops with a total area of 18,000 square meters, with its own machining, sheet metal processing, and spraying. The total number of employees is more than 100, with a research and development team of more than a dozen people.
Professional exhibitions at home and abroad
Our products have passed European CE certification, BV certification, CNAS test report, etc., ensuring the safety of the products.
Transportation mode: By sea, rail, land
Loading mode: FCL, LCL
Packing: plastic waterproof film + plywood box
