MAIN FEATURES
1. Aluminum single head arbitrary angle cutting saw adopts diameter 600mm cemented carbide saw blade, which has a large cutting range and high precision. It can cut large-size aluminum profiles, such as aluminum for sun rooms and aluminum for curtain walls.
2. The cutting angle is digital displayed , the positioning is more accurate, and there is no error in the cutting angle.
3. The gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.
4. LDJR-600 arbitrary angle cutting saw can cut any angle between 22.5 degrees and 157.5 degrees.
5. Two ways to adjust cutting angels: Top handle and Handwheel for worktable.
TECHNICAL SPECIFICATION
| Model | LDJR-600 | LDJR-650 |
| Power Voltage | 380V 50hz | 380V 50hz |
| Air Pressure | 0.6-0.8 Mps | 0.6-0.8 Mps |
| Input Power | 4.0 KW | 4.0 KW |
| Diameter of Saw Blade | 600mm | 650mm |
| Cutting Angles | 22.5° ~90°~157.5° | 22.5° ~90°~157.5° |
| Cutting Height | 200mm | 220mm |
| Cutting Width 90° | 200mm | 220mm |
| Cutting Width 45° | 150mm | 160mm |
| Gross Weight | 700 KGS | 700 KGS |
| Overall Dimension | 10000*1500*2000mm | 10000*1500*2000mm |

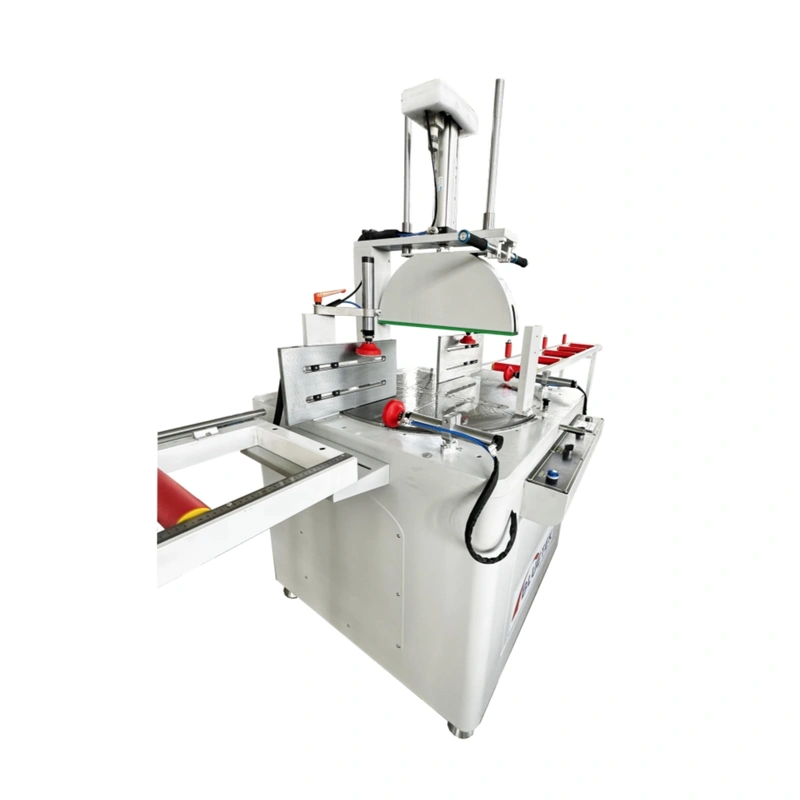

DETAILS OF 600MM /650MM ALUMINUM SINGLE HEAD ARBITRARY ANGLE CUTTING SAW

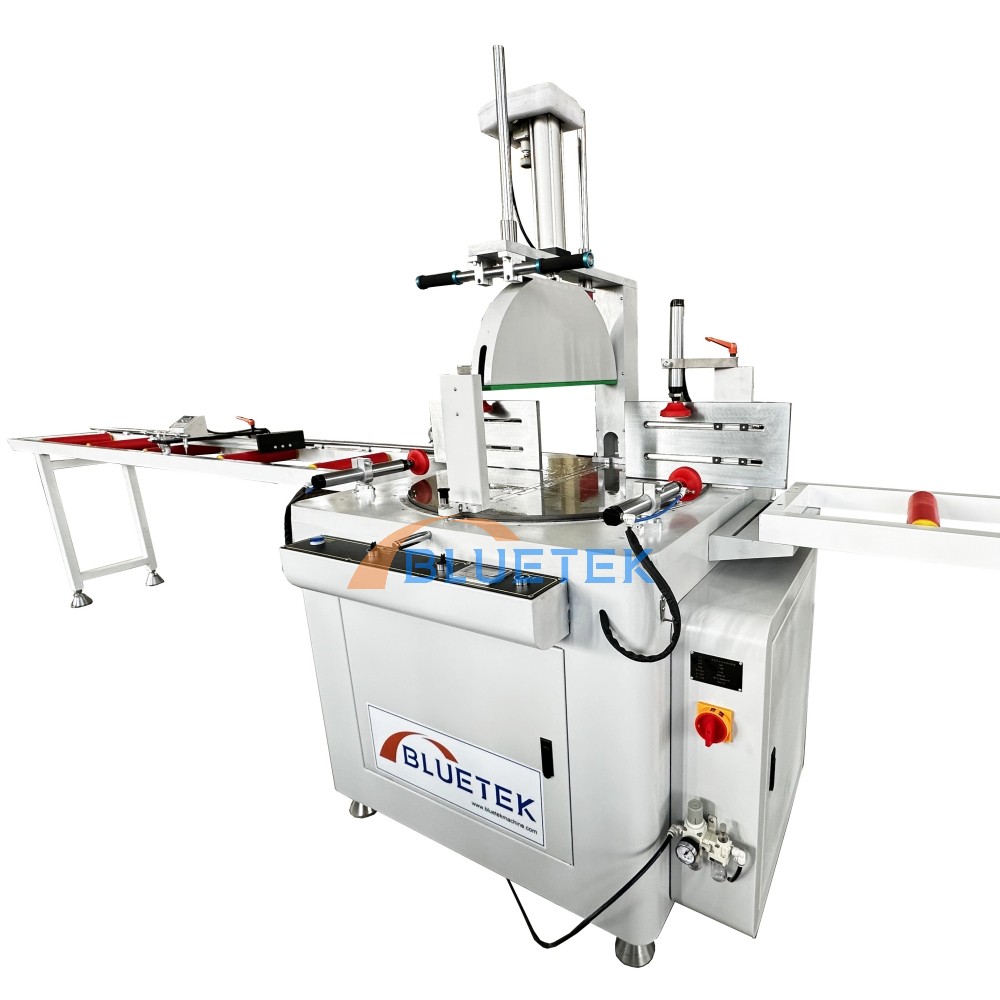

Aluminum single head arbitrary angle cutting saw, equipped with digital display measuring table and feed rack, suitable for arbitrary angle cutting of large-sized aluminum materials.

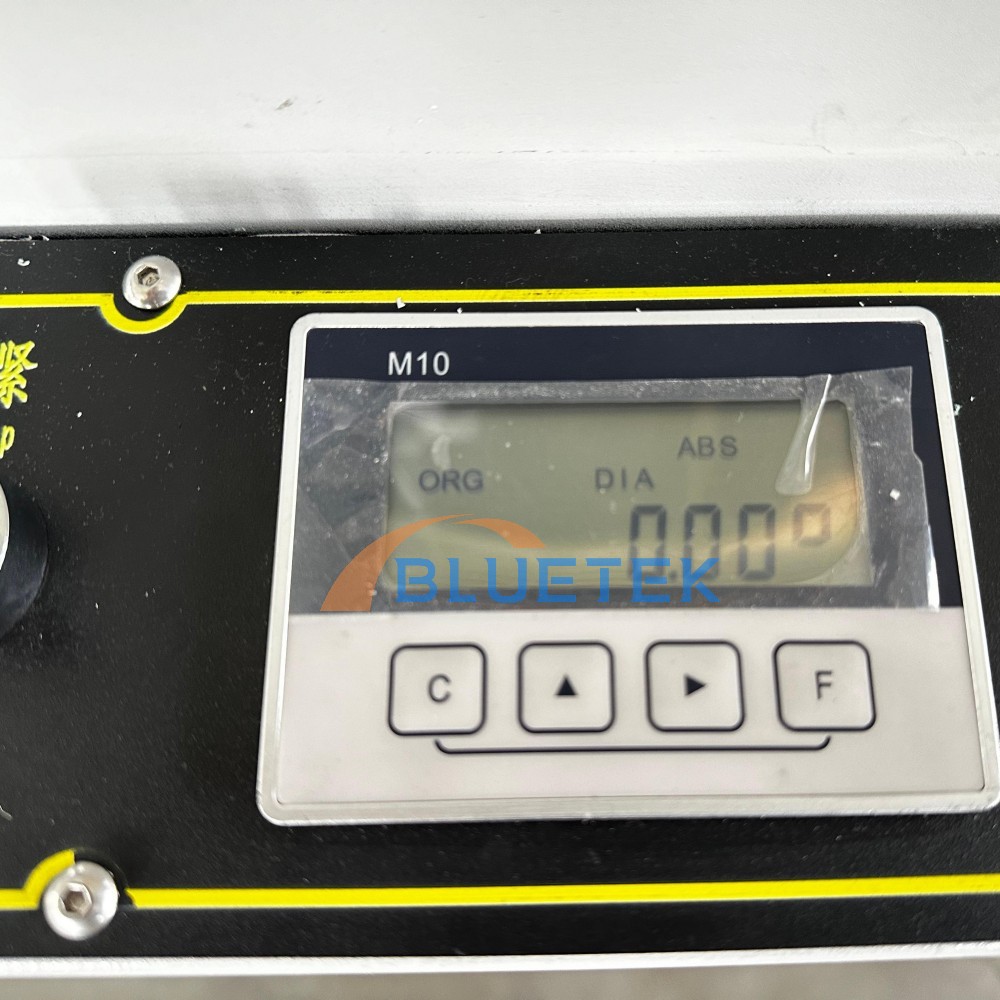

Angle digital display for easy angle adjustment.

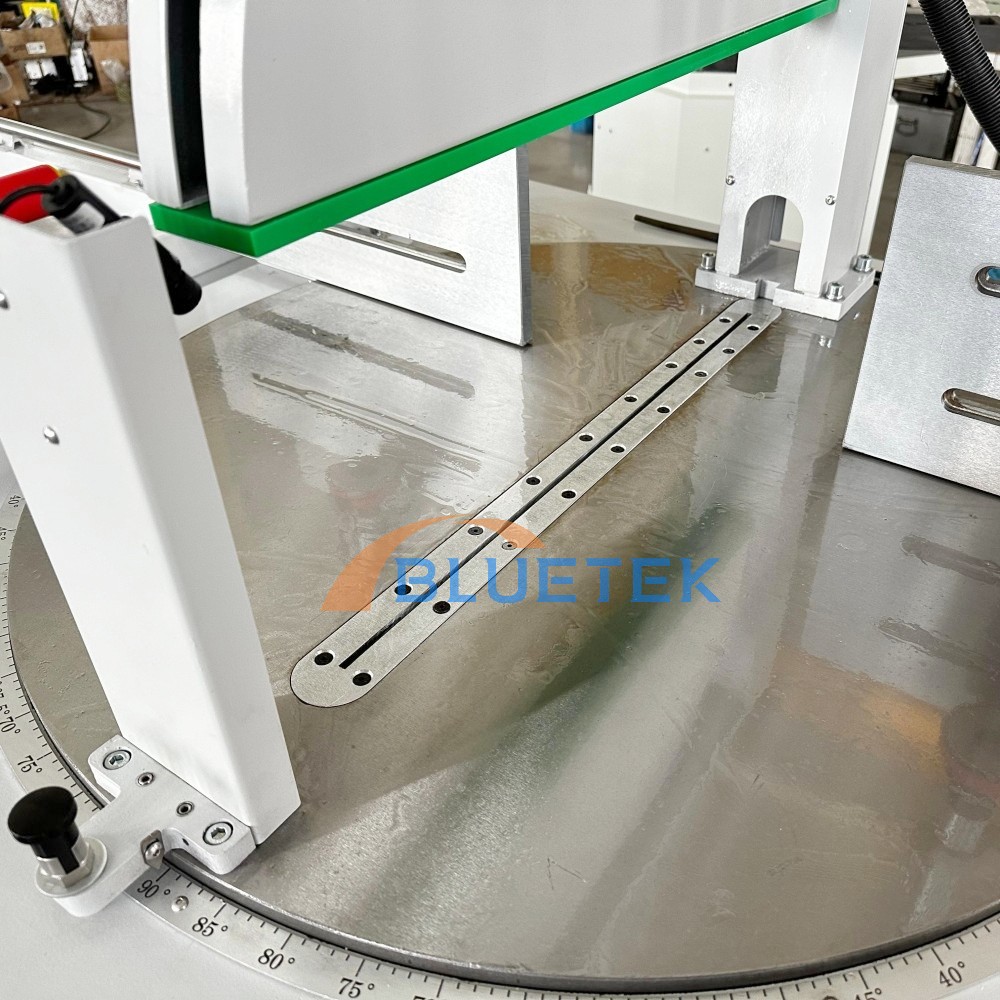

Large cutting range of aluminum single head arbitrary angle cutting saw

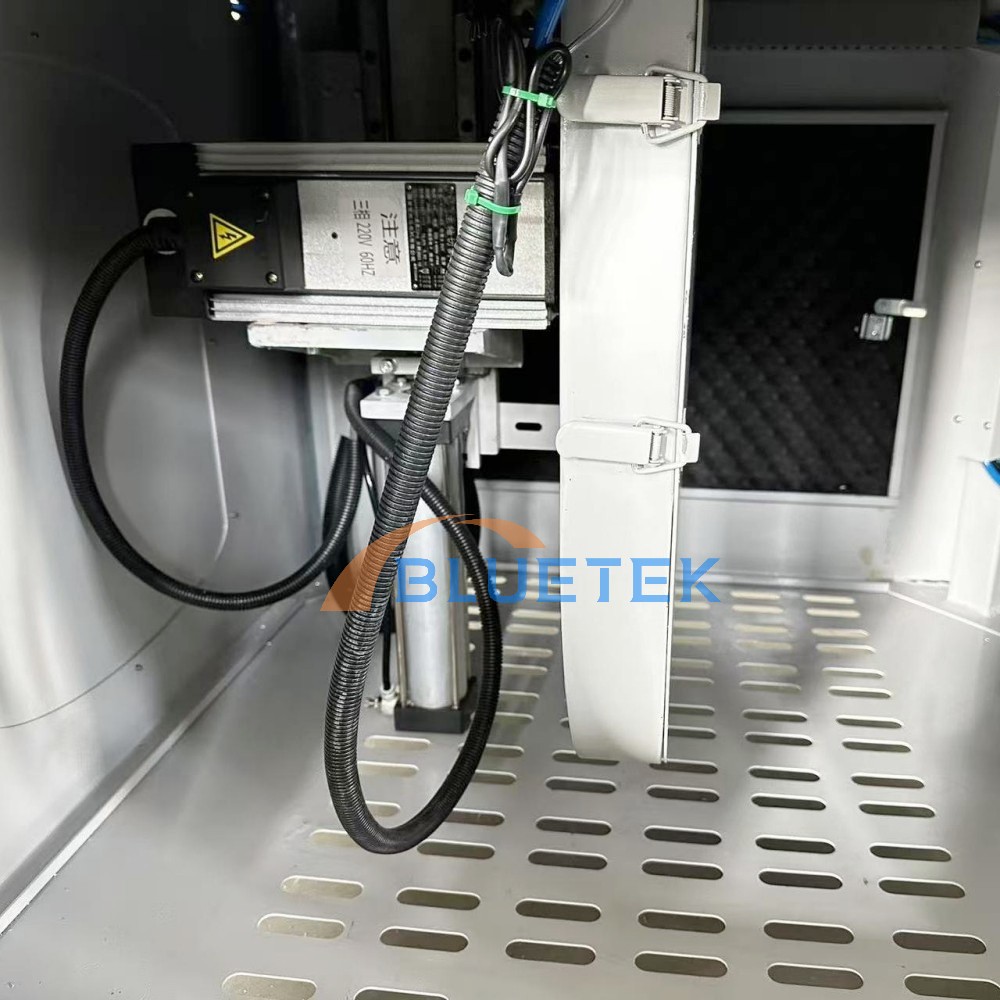

High-power spindle motor, matched with diamond saw blade, high cutting precision.
ABOUT BLUETEK
BLUETEK is located in Jinan, Shandong, and have been specialized in mid-to-high-end aluminum door and window manufacturing machines, aluminum curtain wall manufacturing machines, PVC door and window manufacturing machines, as well as industrial aluminum processing equipment and solutions for 20 years.
Our company currently has three modern workshops with a total area of 18,000 square meters, with its own machining, sheet metal processing, and spraying. The total number of employees is more than 100, with a research and development team of more than a dozen people.
Professional exhibitions at home and abroad
Our products have passed European CE certification, BV certification, CNAS test report, etc., ensuring the safety of the products.
Transportation mode: By sea, rail, land
Loading mode: FCL, LCL
Packing: plastic waterproof film + plywood box
