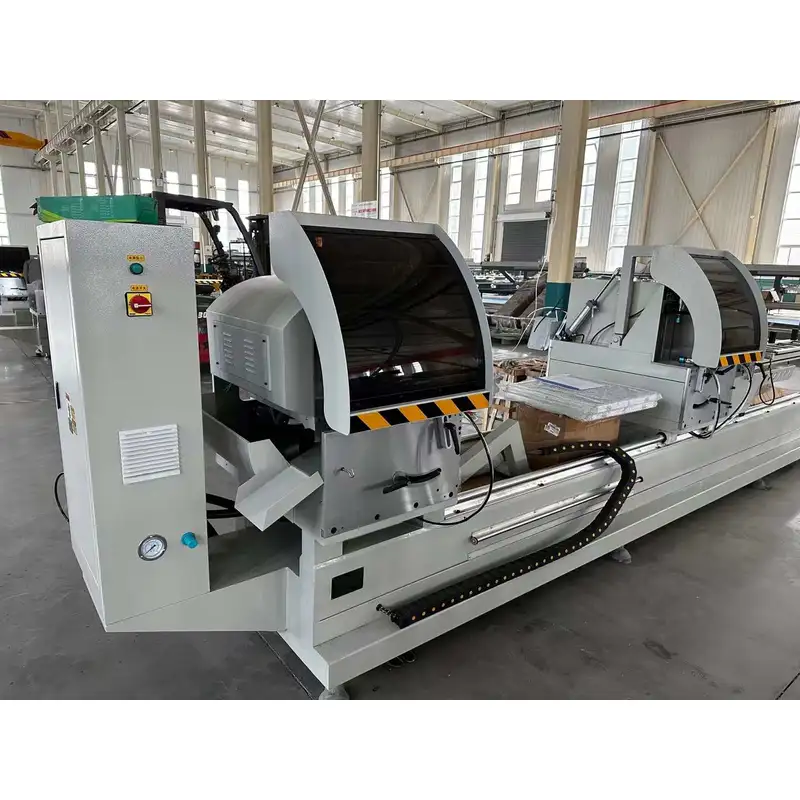

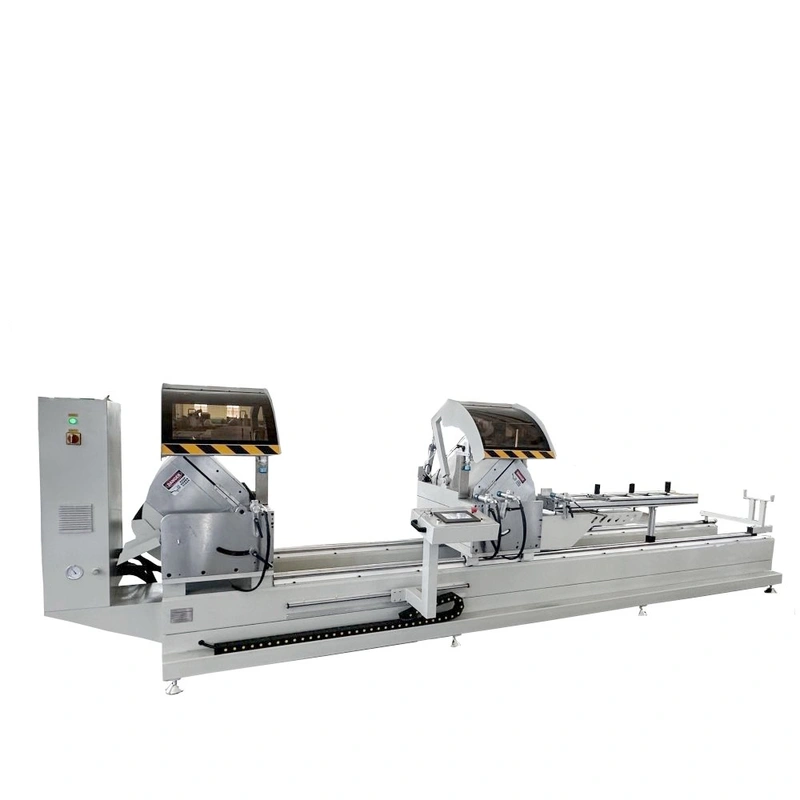

MAIN FEATURES
• This Aluminium Door and Window Making Machine is mainly used for cutting of aluminum door window profiles, curtain wall profiles, PVC door window profiles and other industrial aluminum profiles.
• With imported carbide saw blades, 22.5degrees,45 degrees and 90 degrees can be freely converted.
• Feeding and cutting is from back to front, using the gas-liquid damping mechanism and the linear guide pair, the operation is more stable.
• Two direction cylinder clamping device for smoother sawing and positioning.
• Auto opening safe shield with rubber seal make the user safe.
• With middle profile supporter and movable carrier.
• The safety cover is automatically opened and closed, and the double-button operation is safer when sawing.

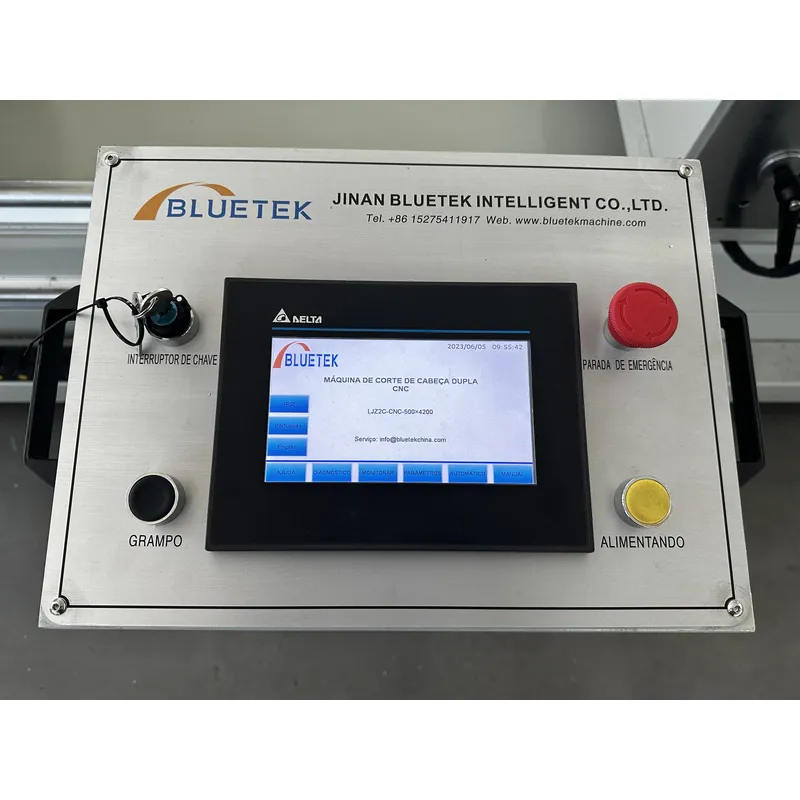

• CNC double mitre cutting saw adopts automatic control system from SIEMENS or Mitsubishi , including PLC, touch screen, servo motor,servo driver,etc.
• Right head can feed and cut automaticlly when cut 90 degrees angle.
TECHNICAL SPECIFICATION
| Model | LJZ2C-CNC-500X4200 |
| Servo System | SIEMENS / DELTA |
| Motor Power | 3.0KW*2 |
| Air Pressure | 0.6~0.8 MPa |
| Blade Diameter | 500mm*30mm*4.4mm |
| Cutting Angle | 45° / 90° |
| Cutting Width | 135mm |
| Cutting Height | 200-300mm |
| Machine Size | 5600*1300*1600mm |
| Gross Weight | 1800 KG |
STANDARD ACCESSORIES
| PLC | SIEMENS , Germany ( Option: DELTA Taiwan ) |
| Servo Motor | SIEMENS , Germany ( Option: DELTA Taiwan ) |
| Servo Driver | SIEMENS , Germany ( Option: DELTA Taiwan ) |
Low-voltage Apparatus | Schneider , France |
Saw Blade | WAGEN , Japan |
Solenoid Valve | AirTAC , Taiwan China |
Air Filter Device | AirTAC , Taiwan China |
| Cylinder | EASUN , Italian Joint Venture |
| Spindle Motor ( Sawblade ) | ORMT , Italian Joint Venture |
Good Price Aluminium Door and Window Making Machine, China Aluminium Door and Window Making Machine Manufacturer, Aluminium Door Window Making Machine, Aluminium Windows and Doors Making Machines, Buy Aluminium Door and Window Making Machine, Aluminium Door and Window Making Machine Supplier in China
Aluminium Door and Window Making Machine Solution 1
| |||
Item | Machine Name | Model | Remark |
1 | Aluminium Double Head Cutting Saw | SSJ06-450x3700 | Cutting |
2 | Aluminium Window Corner Crimping Machine | LZJ-130 | Corner connecting |
3 | End-face Milling Machine | LXD-200 | Milling mullion end |
4 | Aluminium Punching Machine | LYA6-50 | Punching holes |
5 | Aluminium Window Copy Router Machine | LXF-300x150 | Milling holes |
Aluminium Door and Window Making Machine Solution 2
| |||
Item | Machine Name | Model | Remark |
1 | CNC High Precision Double Head Cutting Saw | LJZ2B-CNS-500X4200 | Cutting |
2 | Automatic Corner Connector Cutting Saw | LJJ01-450 | Cutting |
3 | Heavy Duty Corner Crimping Machine | LZJ05-160 | Corner connecting |
4 | Automatic End-face Milling Machine | LXD05A-200 | Milling mullion end |
5 | Aluminium Punching Machine | LYA-90 | Punching holes |
6 | 800mm Aluminium 3 Axis CNC Milling Machine | LSKX-CNC-800 | Milling & Drilling |
