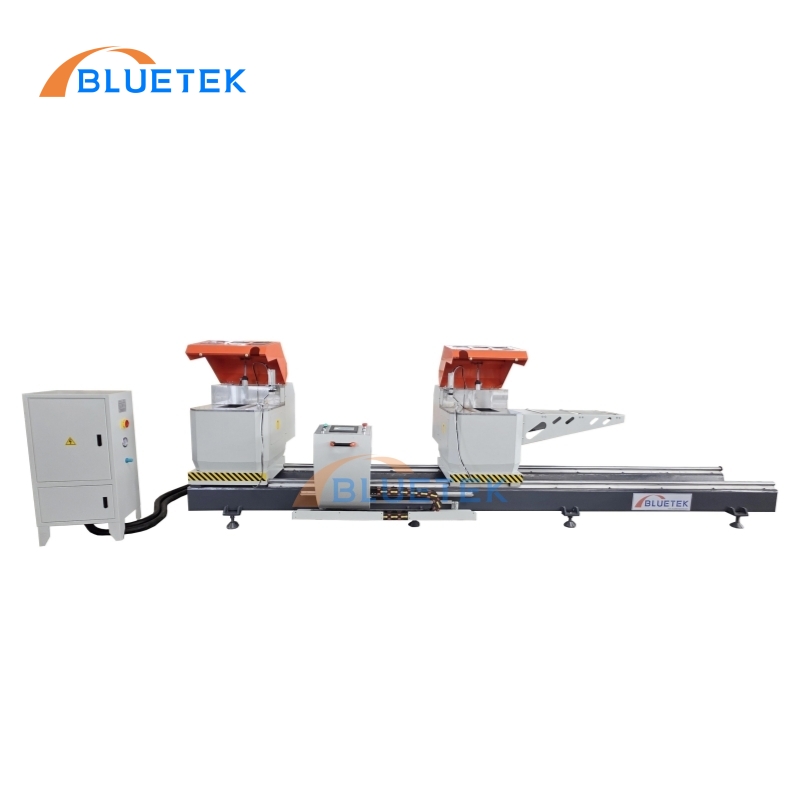

CNC aluminum cutting machine for up sawing

Name : Double Heads CNC Aluminium Cutting Machine

Model : LJZ2E-CNC-500x4200

Cutting Angle : 45 / 90 degrees

Sawblade diameter : 500 mm

Control System : SIEMENS



Description

CNC aluminum cutting machine, manufacturer, factory price

CNC aluminum cutting machine


MAIN FEATURES


• CNC high precision double-head cutting machine is used for cutting aluminum profiles and light metals, such as aluminum door and window profiles, PVC door and window profiles, aluminum tubes, aluminum rods, photovoltaic aluminum frames, other aluminum materials, etc.

• Pneumatic swing angles within 45 degrees and 90 degrees, the saw blade feeds from bottom to top.

• Super large cutting range, up to 350 mm wide.

• The right head is positioned by servo motor, matched with helical gear rack, with high repeat positioning accuracy.

• Adopt Taiwan Delta CNC system, including touch screen, PLC, drive, servo motor, etc.

• Multiple cutting modes: manual mode, form mode, ultra-short cutting mode and ultra-long cutting mode.

• Diamond saw blade, longer service life.

• Two-handed operation mode, safer.

• Vertical and horizontal cylinder clamping device.

• Equipped with air gun and cooling spray device.


Optional: Digital display precision cutting saw


TECHNICAL SPECIFICATION

Model

LJZ2E-CNC-500X4200

LJZ2E-CNC-550X4200

Total Power

5.5KW

5.5KW

Input Power

380V 50Hz 3Phase

380V 50Hz 3Phase

Motor Power

2.2KW * 2

2.2KW * 2

Motor Speed

2840 r/min

2840 r/min

Air Pressure

0.6-0.8 MPa

0.6-0.8 MPa

Diameter of Blades

Φ500mm×φ30mm

Φ550mm×φ30mm

Cutting Angles

45°,  90°

45°,  90°

Cutting Width

Max.350 mm

Max.370 mm

Cutting Height 45°

110 mm

125 mm

Cutting Height 90°

150 mm

170 mm

Cutting Length

300 ~4200mm

300 ~4200mm

Overall Dimension

5800*1500*1800 mm

5800*1500*1800 mm

Net Weight

1500 KGS

1500 KGS

Packing Size

5800*1550*1800mm

5800*1550*1800mm

Gross Weight

1700 KGS

1700 KGS


DETAILS OF LJZ2E-CNC-500X4200 CNC ALUMINUM CUTTING MACHINE

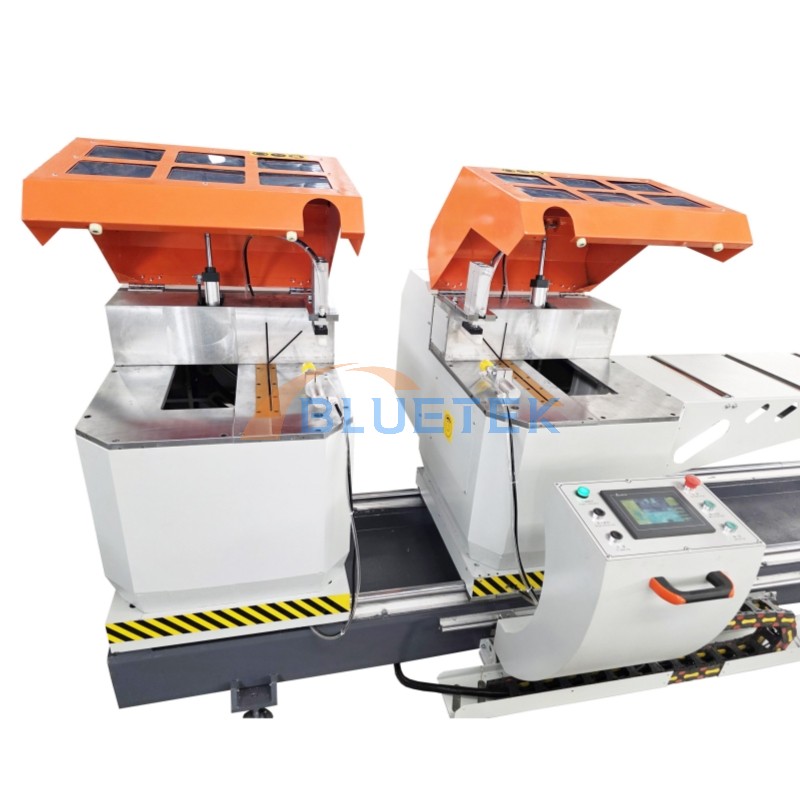

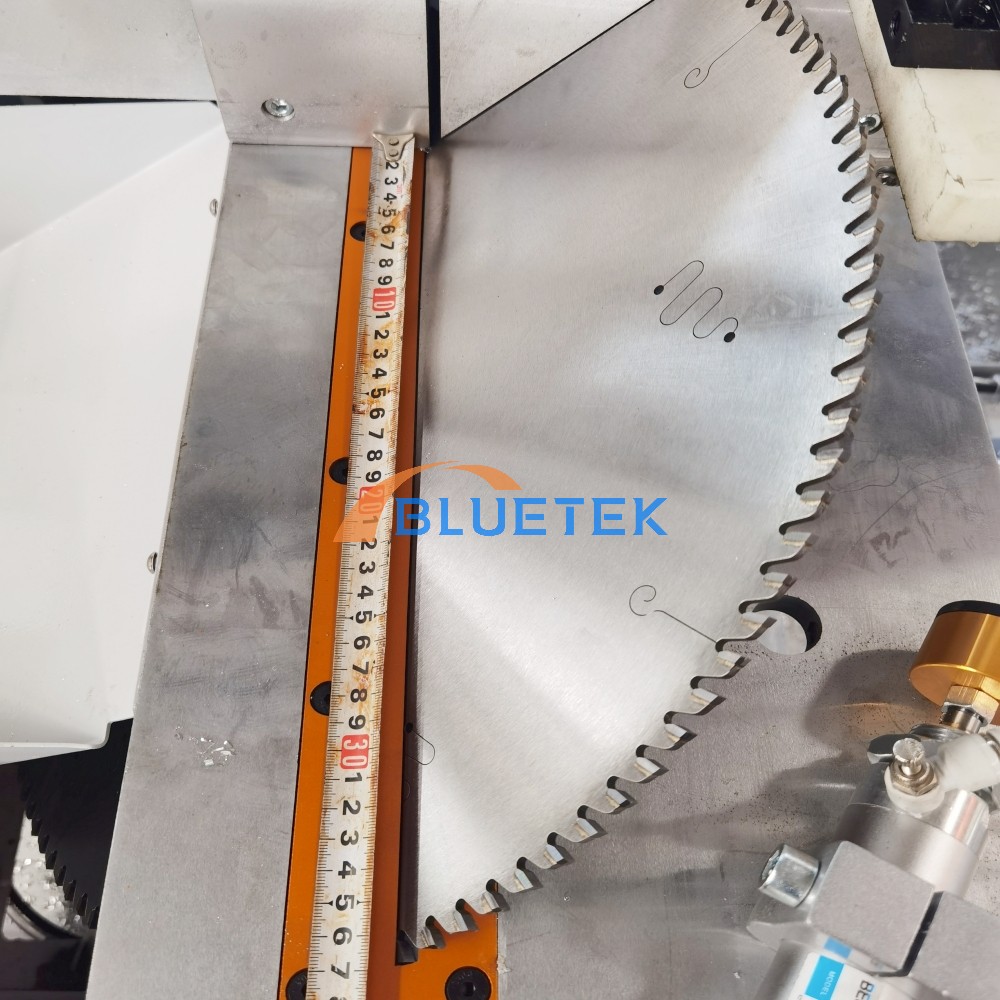

Cutting range of CNC aluminum cutting machine

Up cutting for inner 45° and 90° angles, suitable for cutting extra wide aluminum profiles.


Taiwan Delta servo system of CNC aluminum cutting machine

A full set of Taiwan Delta servo system, high precision and high stability.

SIEMENS system is optional

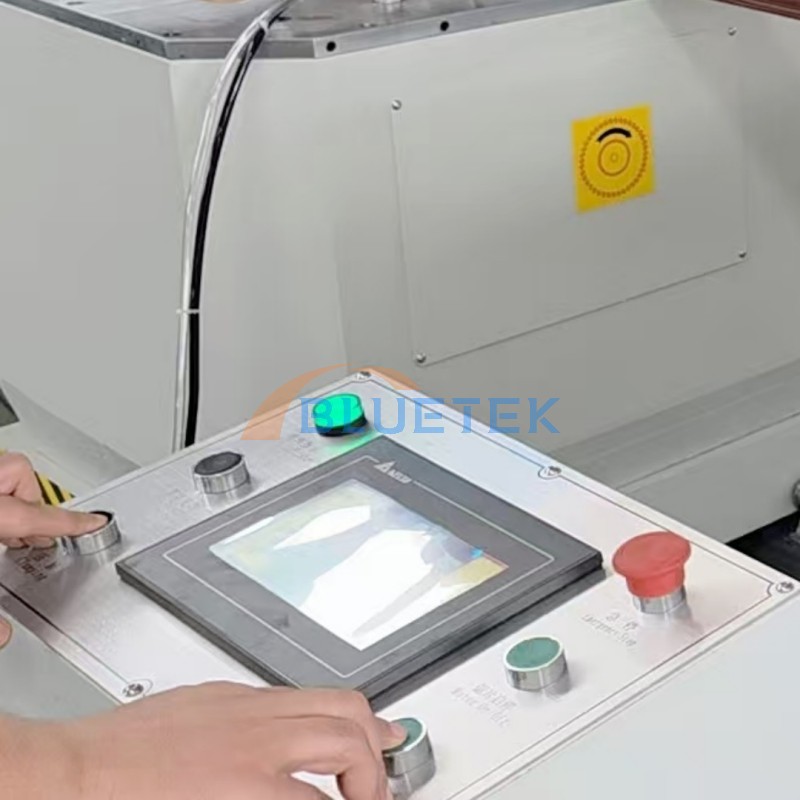

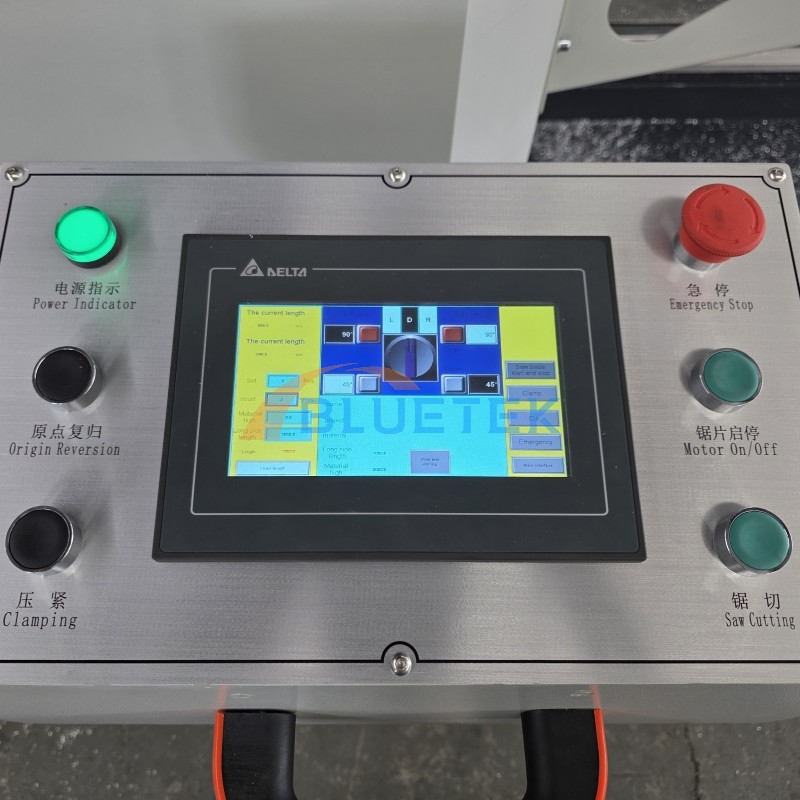

CNC aluminum cutting machine is safer

Two-button operation mode, which is safer.

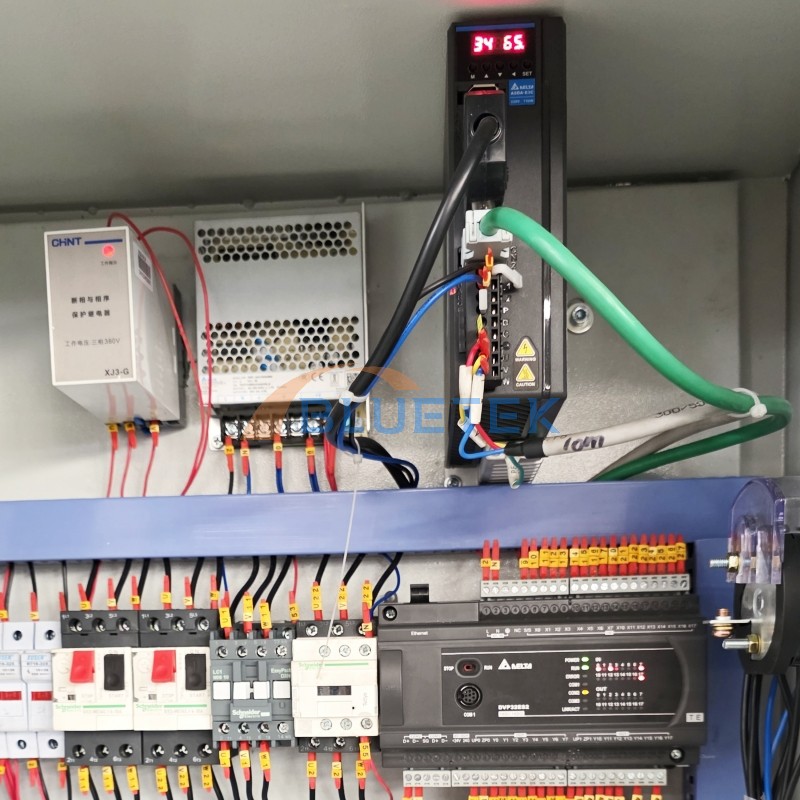

low voltage electrical appliances of CNC aluminum cutting machine

Industrial grade low voltage electrical appliances from Schneider.

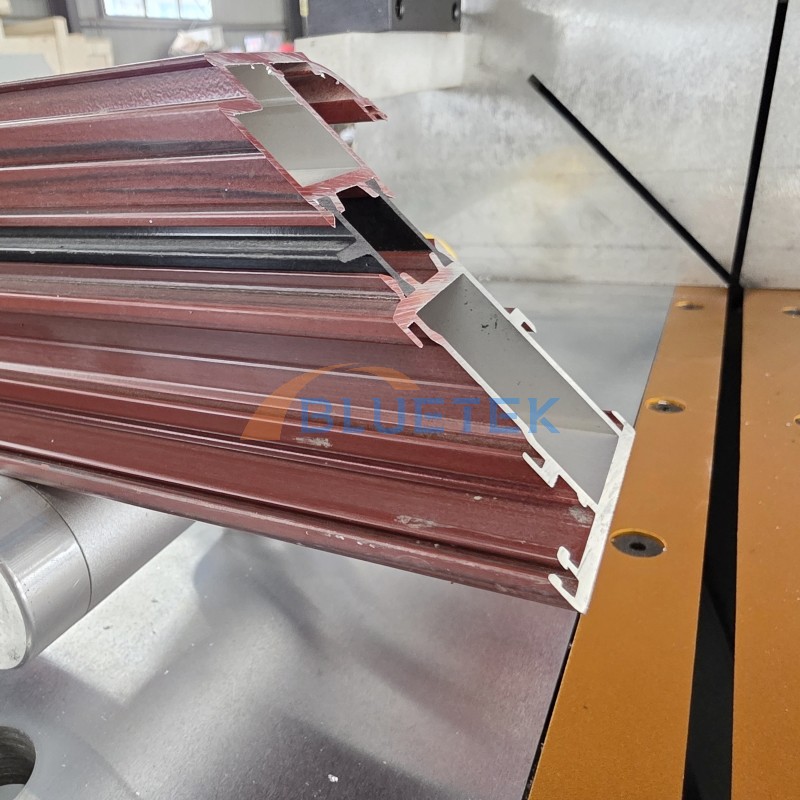

Cutting effect of CNC aluminum cutting machine

Cutting effect for 45 degrees angle.




PAYMENT TERM

  1.   T/T : 30% in advance by T/T , 70% before dispatch by T/T

  2.   L/C : 30% in advance by T/T , 70% by L/C

  3.   Western Union


PACKING

LCL : Plastic Film, Wood Case

FCL :   Plastic Film, Wood Tray

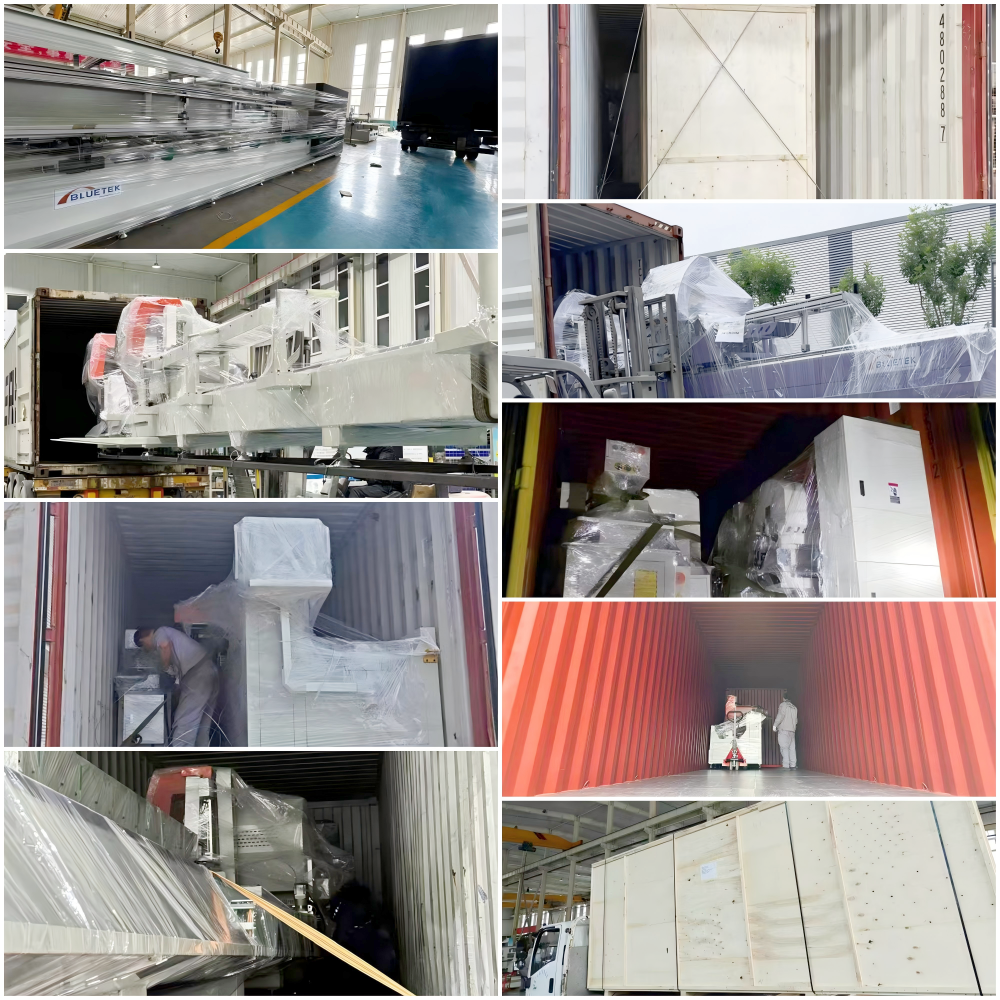

Packing and Shipping

AFTER SALE SERVICE

  1. Two years quality warranty.

  2. Technicians can go overseas for installation, commissioning and training.

  3. Video call to solve emergencies for customers.


OUR EXHIBITION

BLUETEK EXHIBITIONS


OUR CUSTOMERS

Relying on leading technology and perfect service, BLUETEK has won the trust of customers in more than 50 countries and regions.

Our customers come from the United Kingdom, Belgium, Denmark, Russia, Saudi Arabia, UAE, Algeria, Vietnam, India, Thailand, Malaysia,

Australia, South Korea, Canada, the United States, Chile, Peru, Argentina, etc.

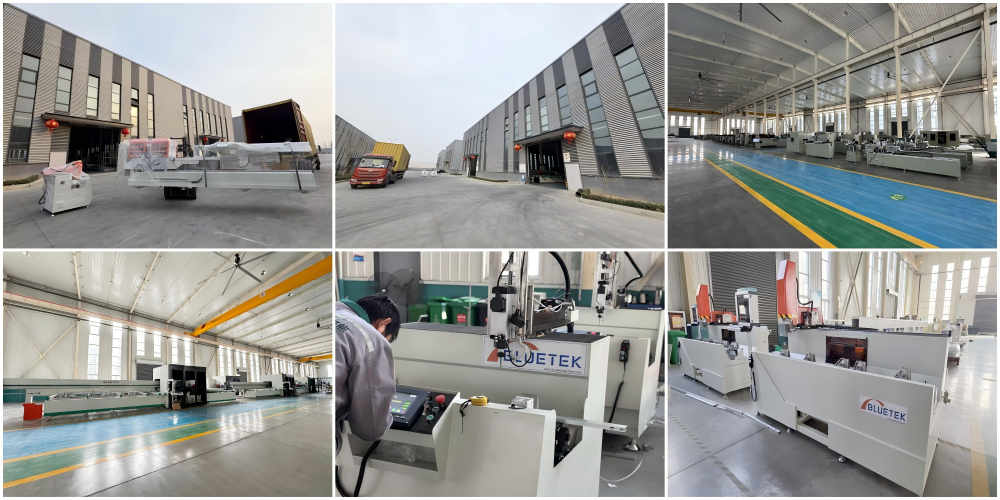

OUR FACTORY

OUR FACTORY

BLUETEK is located in Jinan, Shandong, and have been specialized in mid-to-high-end aluminum door and window manufacturing machines, aluminum curtain wall manufacturing machines, PVC door and window manufacturing machines, as well as industrial aluminum processing equipment and solutions for 20 years.
