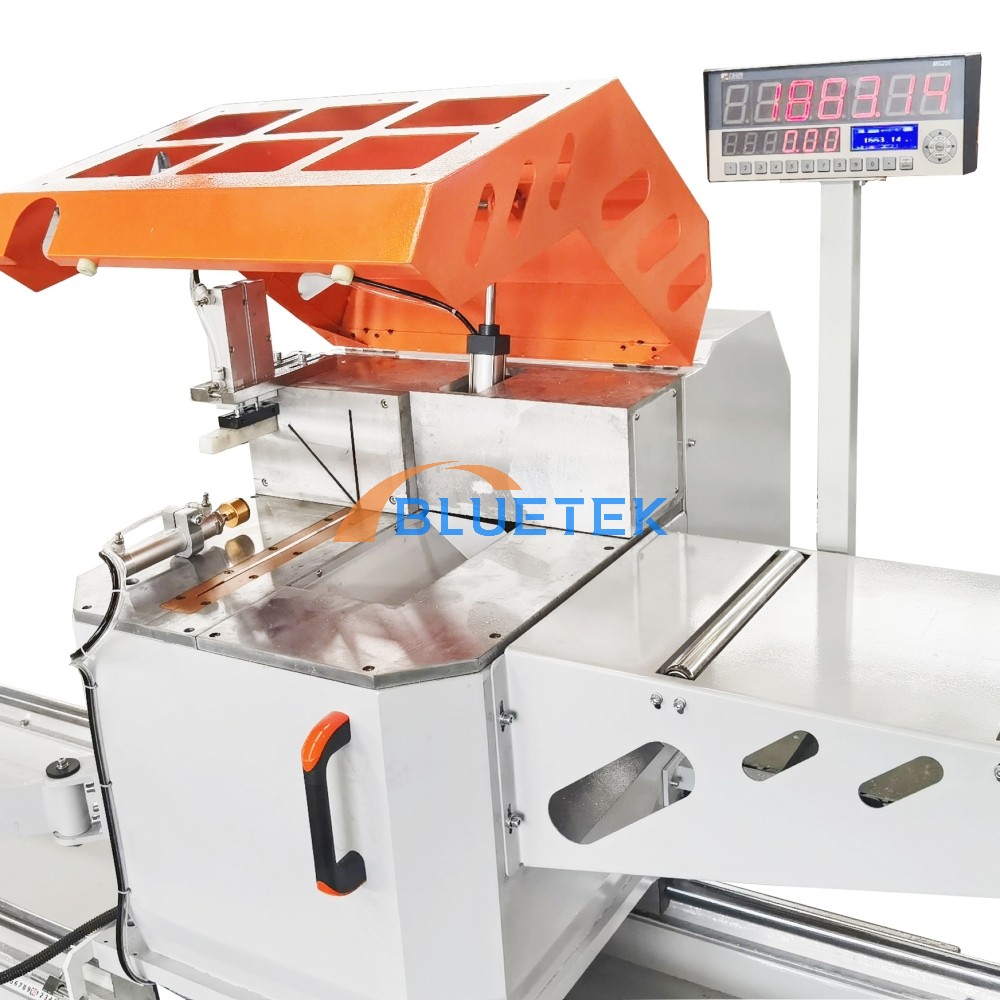

The right machine head is equipped with a digital measuring ruler to facilitate positioning of the cutting length.
Suitable for sawing wide aluminum materials. The cutting width depends on the height of the aluminum material.
Please confirm with the manufacturer.

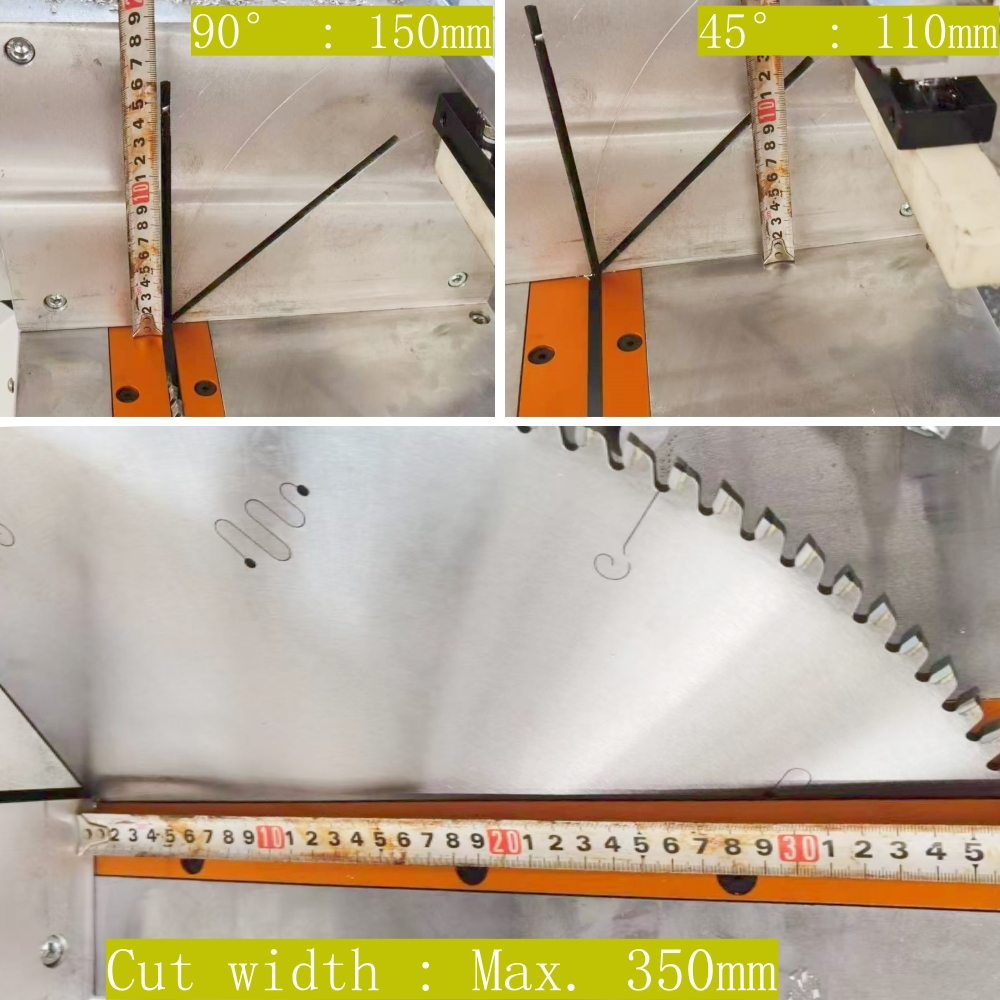

Cutting range for width and height.
MAIN FEATURES
• Saw blade cuts from bottom to top max. width up to 350 mm and is used for cutting aluminum window door ,curtain walls, and industrial aluminum profiles.
• Pneumatic swing angle of 45 and 90 degrees.
• With Digital measuring ruler, convenient and fast.
• Coolant spray to improve cutting quality.
• The longest cutting length is 4200 mm, and customized length is supported.

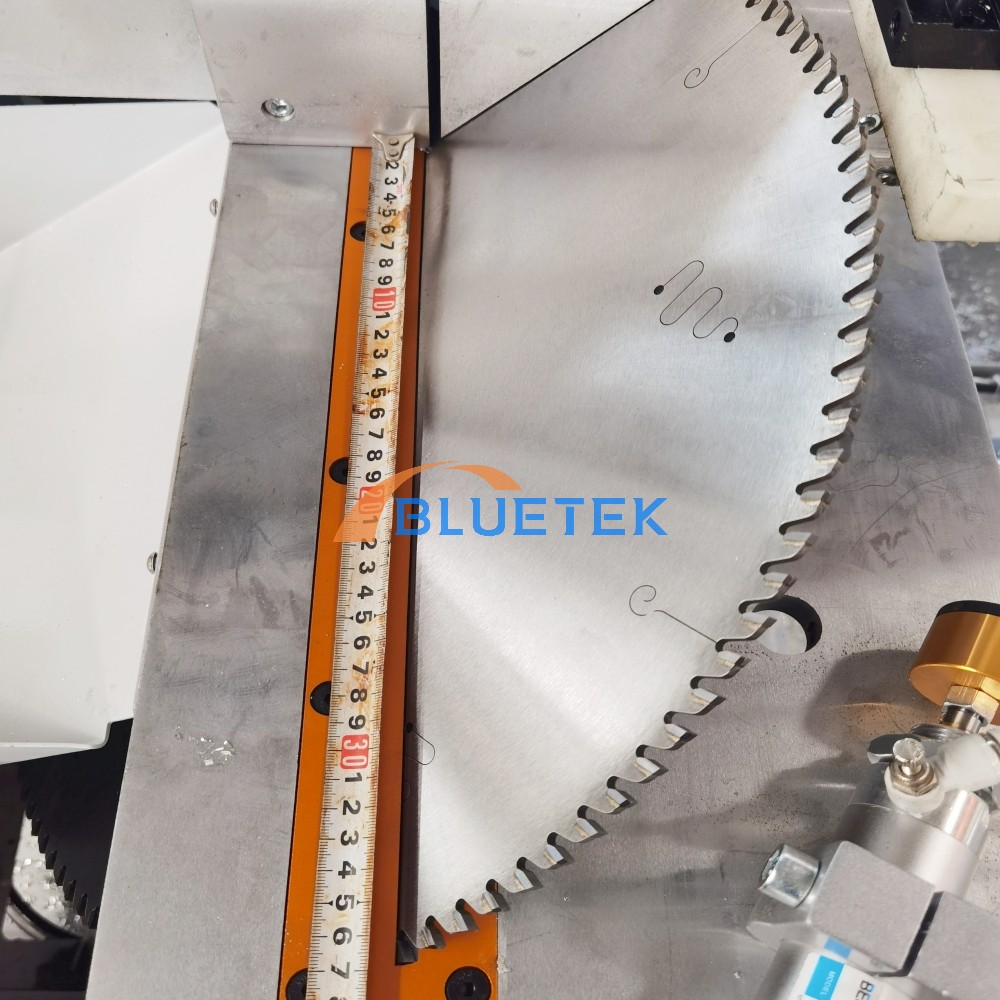

• Diamond saw blades, longer service life and higher precision.

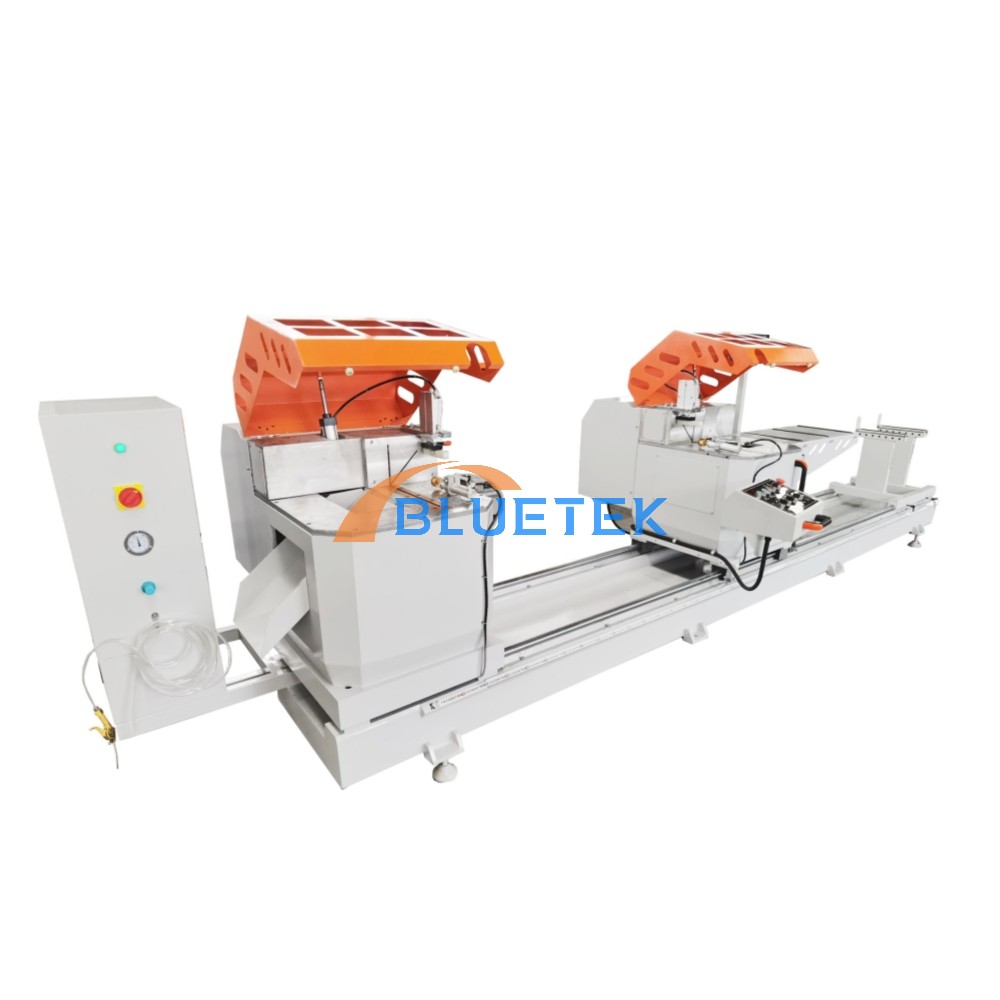

• Both heads have horizontal and vertical clamps.

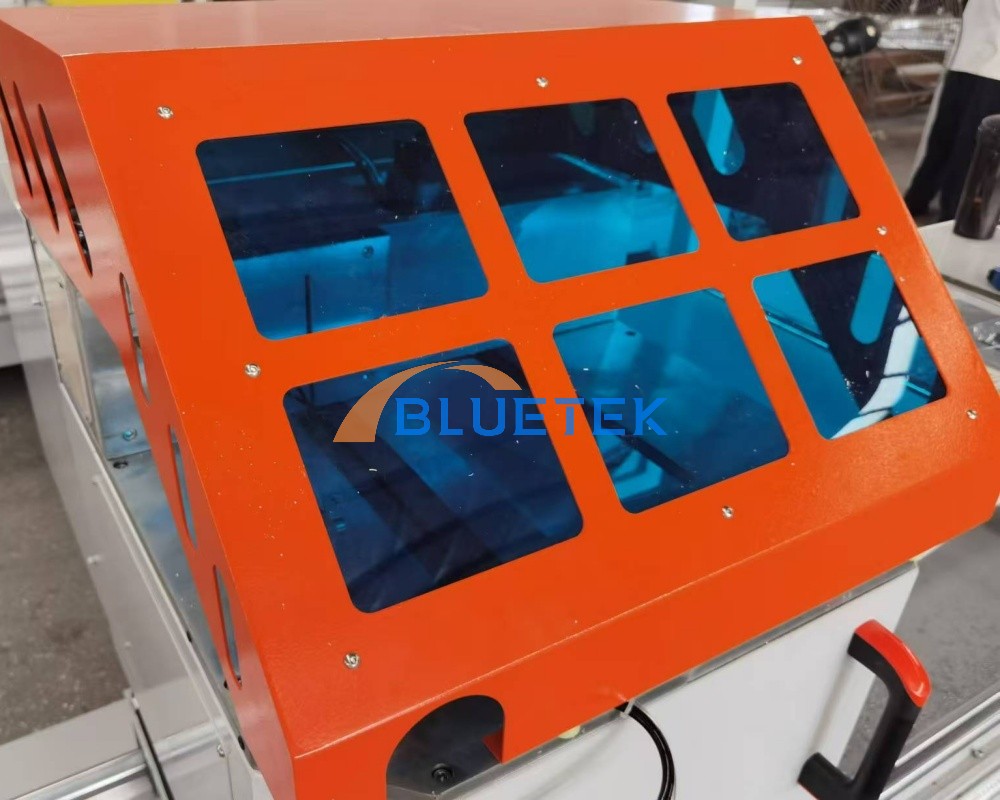

• Auto opening safe shield to make the user safe.
• Equipped with air gun and cooling spray device.
• The saw blades of aluminium double mitre saw are Diamond saw blades, which has high cutting precision, beautiful appearance and long service life.
OPTION

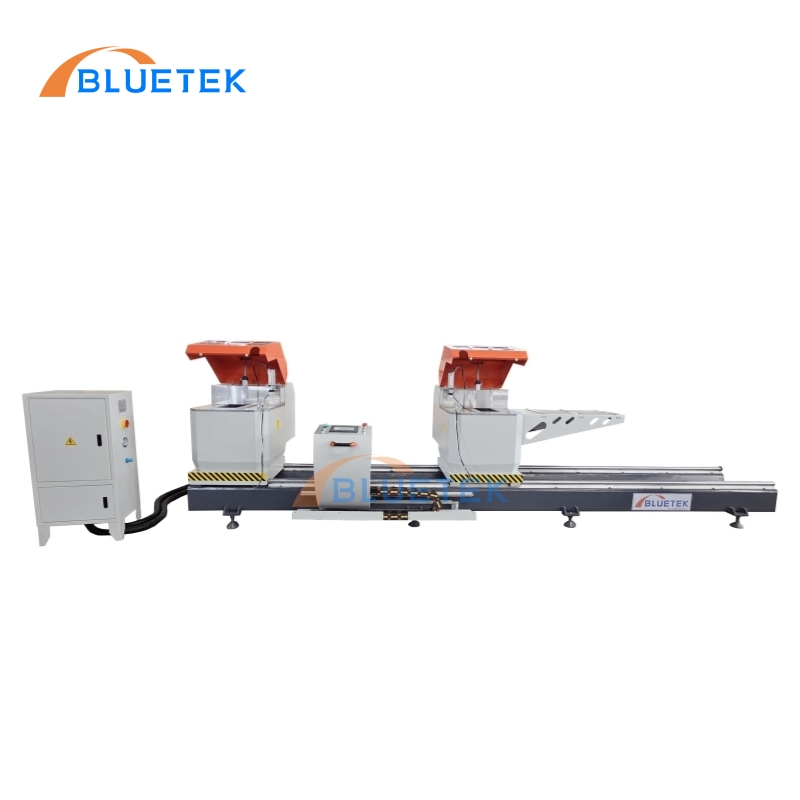

CNC Automatic Aluminium double mitre saw
TECHNICAL SPECIFICATION
Model | LJZ2E-CNS-500X4200 | LJZ2E-CNS-550X4200 |
Total Power | 5.0KW | 5.0KW |
Input Power | 380V 50Hz 3Phase | 380V 50Hz 3Phase |
Motor Power | 2.2KW * 2 | 2.2KW * 2 |
Motor Speed | 2840 r/min | 2840 r/min |
Air Pressure | 0.6-0.8 MPa | 0.6-0.8 MPa |
Diameter of Blades | Φ500mm×φ30mm | Φ550mm×φ30mm |
Cutting Angles | 45°, 90° | 45°, 90° |
Cutting Width | Max.350 mm | Max.370 mm |
Cutting Height 45° | 110 mm | 125 mm |
Cutting Height 90° | 150 mm | 170 mm |
Cutting Length | 300 ~4200mm | 300 ~4200mm |
Overall Dimension | 5800*1500*1800 mm | 5800*1500*1800 mm |
Net Weight | 1500 KGS | 1500 KGS |
Packing Size | 5800*1550*1800mm | 5800*1550*1800mm |
Gross Weight | 1700 KGS | 1700 KGS |
