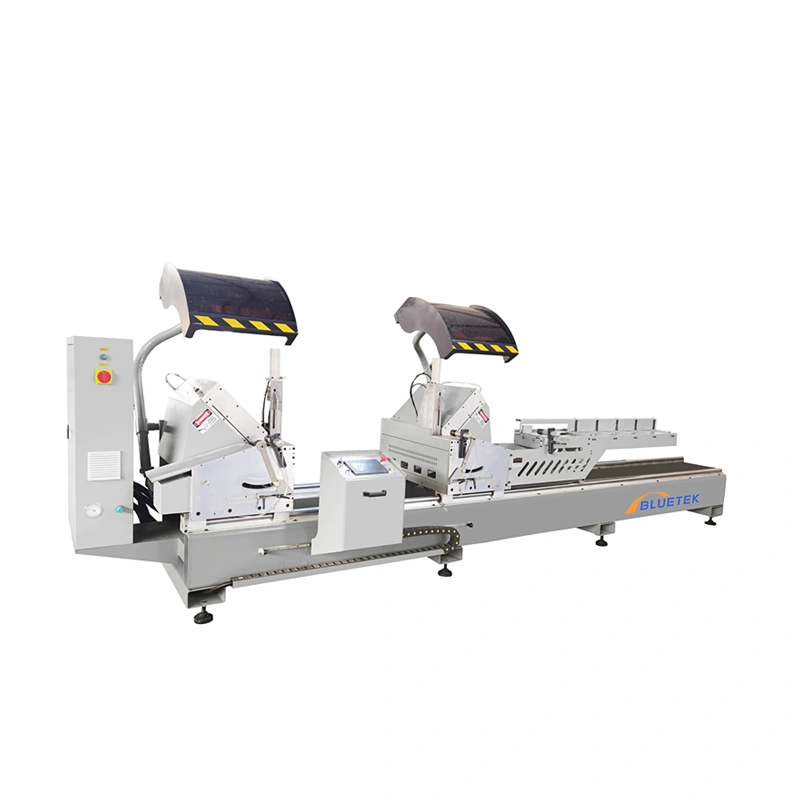

Aluminium Profile CNC Any Angle Double Heads Cutting Machine,
Arbitrary Angles CNC Double Mitre Cutting Saw
MAIN FEATURES

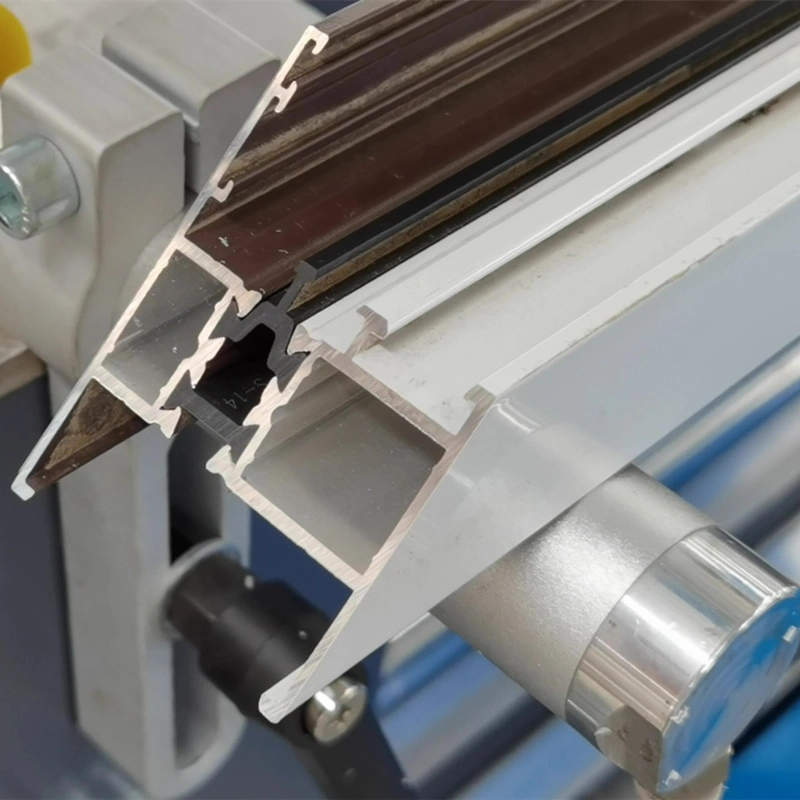

• Any Angle Double Heads Cutting Machine is used for cutting aluminum doors and windows and aluminum curtain walls at any angle
• The right machine head adopts imported servo motor drive, fully closed loop control, high repeat positioning accuracy and fast moving speed

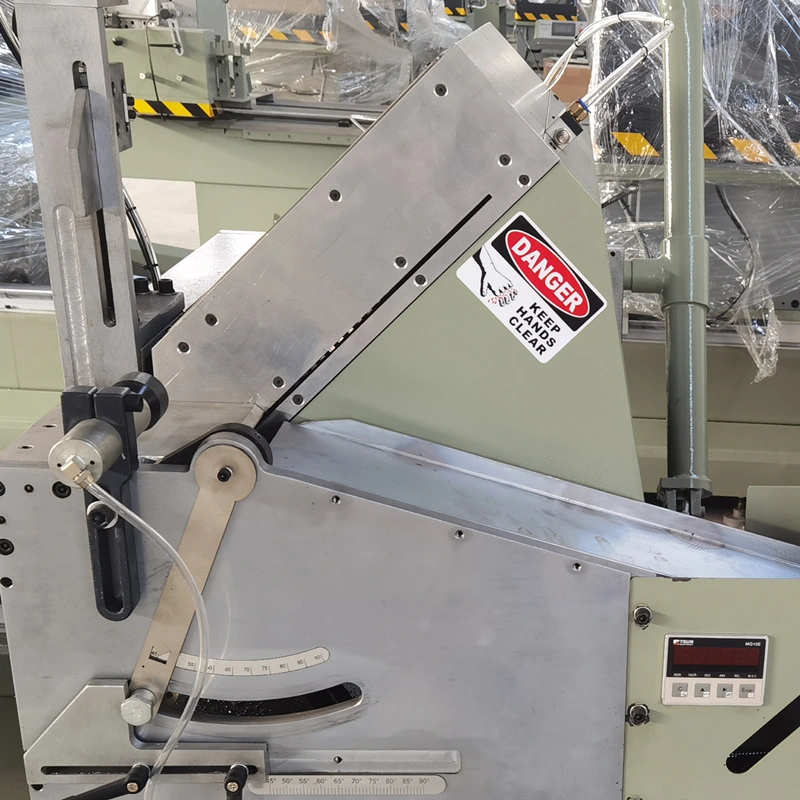

• The cutting angle adopts pneumatic swing angle
• Work list function: quickly select processing profiles
• High-precision electric spindle motors directly connected to the saw blade, stable and reliable operation, low noise, high cutting accuracy
• Saw blade feed adopts gas-liquid damping device, which is very stable
• Electrical parts and pneumatic components adopt world-renowned brands with reliable quality
TECHNICAL SPECIFICATION OF ANY ANGLE DOUBLE HEADS CUTTING MACHINE
| Model | LSRJZ2-CNC-500x5000 |
| Servo System | SIEMENS |
| Motor Power | 2.2KW*2 |
| Air Pressure | 0.6~0.8 MPa |
| Blade Diameter | 500mm*30mm*4.4mm |
| Cutting Angle | 45° , 90° , any angles between 45° ~ 90° |
| Cutting Width | 135mm |
| Cutting Height | 150-300mm |
| Overall Dimension | 6500*13200*1700mm |
| Gross Weight | 1800 KG |
PACKING AND SHIPPING OF ALUMINIUM PROFILE ANY ANGLE DOUBLE HEADS CUTTING MACHINE
The inner packaging of the any angle double heads cutting machine is a waterproof film, and the outer packaging is a fumigation-free plywood. Can be exported to customer countries by sea, rail, etc.
