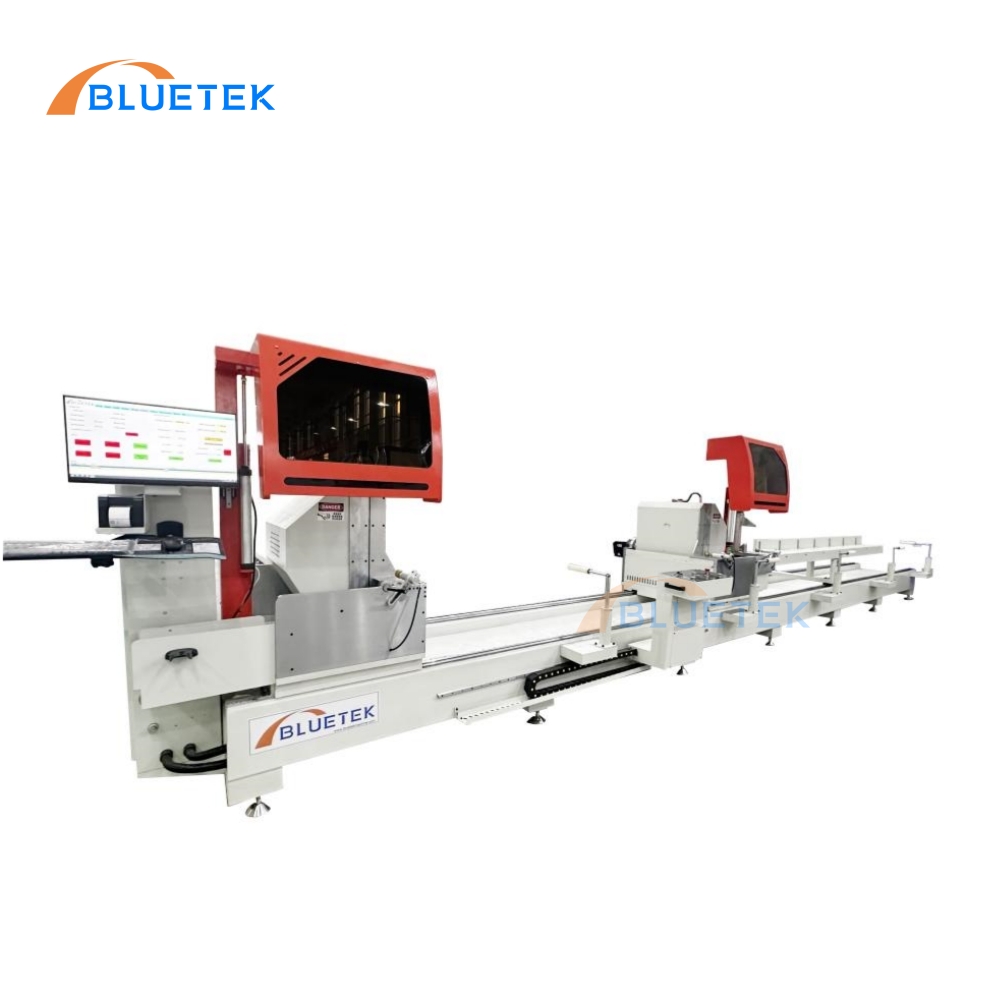

ALUMINUM CURTAIN WALL CUTTING MACHINE, CNC DOUBLE HEADS ARBITRARY ANGLE CUTTING SAW
MAIN FEATURES
1. Double-head CNC arbitrary angle cutting saw, professionally used for sawing large-size aluminum profiles such as aluminum curtain walls and aluminum facades.
2. The independently developed control system can be connected with window software and ERP software, equipped with a barcode scanner and label printer to realize intelligent production.

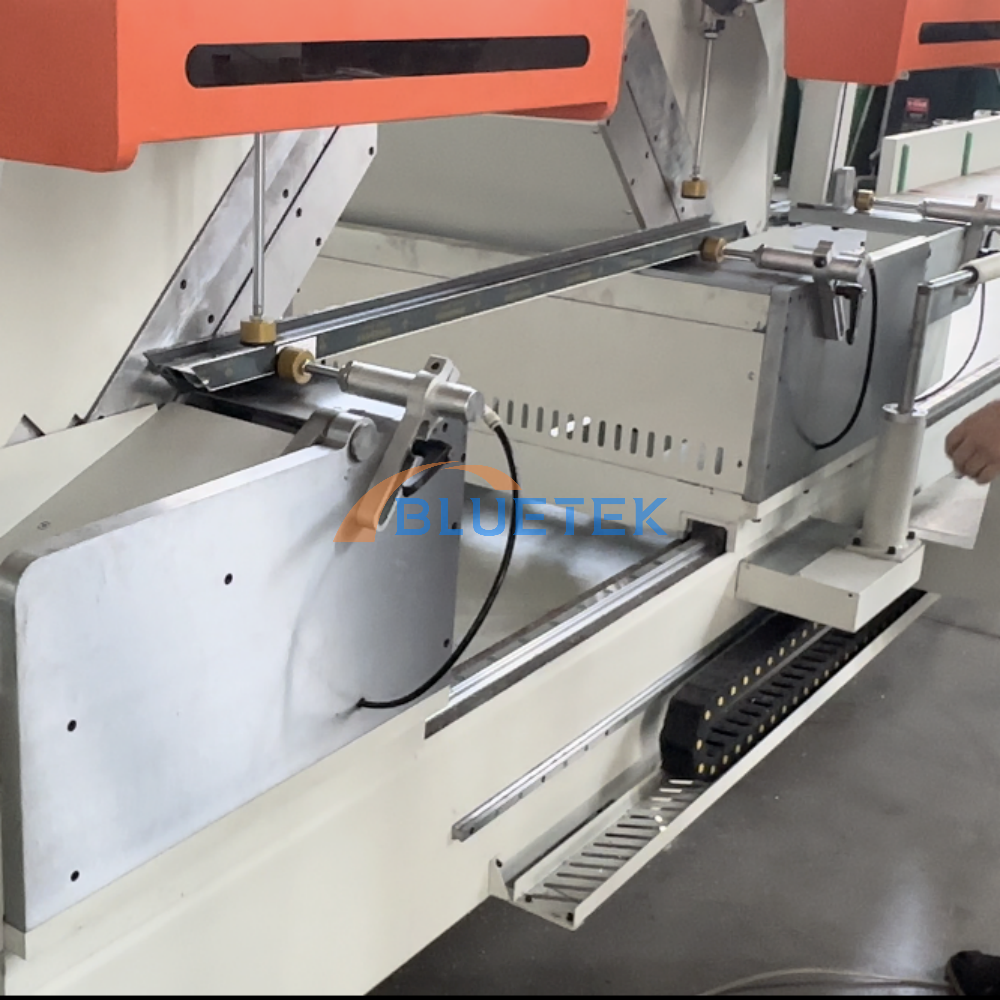

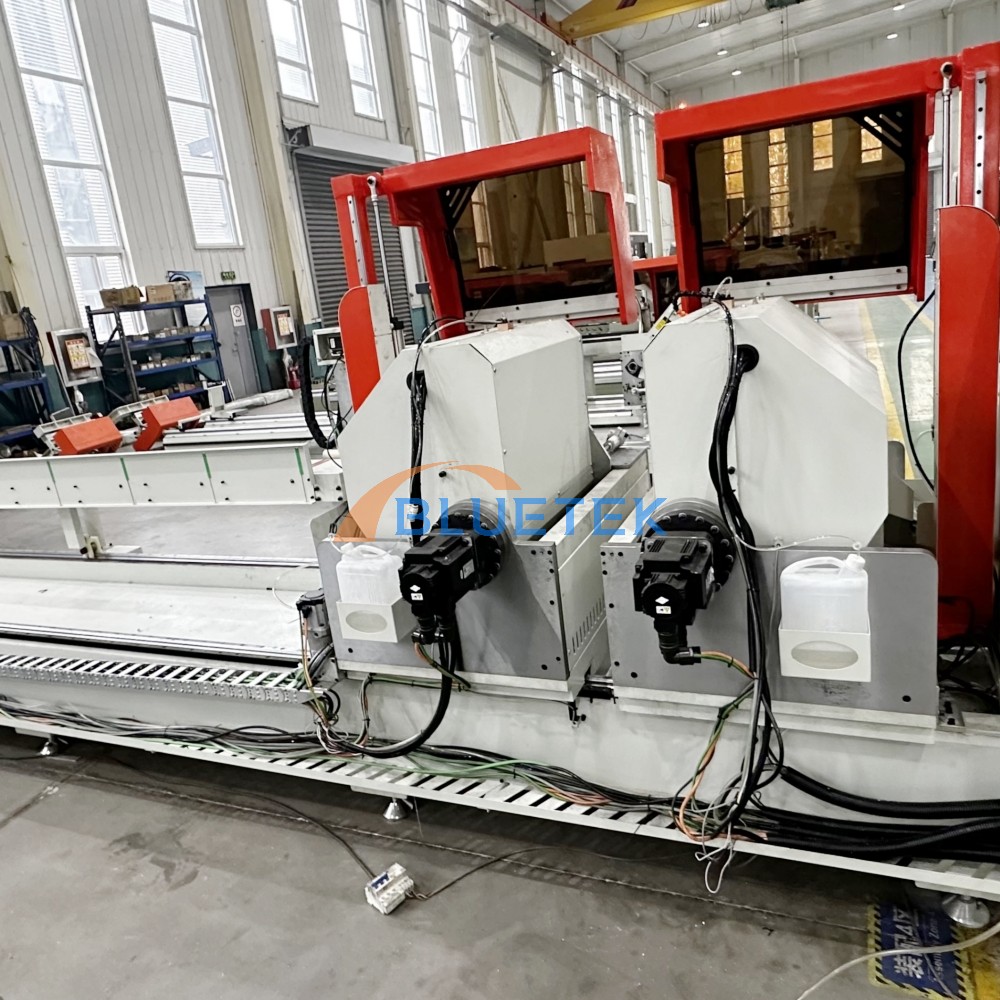

3. The mobile head adopts servo motor and gear rack transmission, full closed-loop control, and high repetition accuracy.
4. The 600 mm diamond saw blade can cut at any angle from 45° to 157.5°.
5. The high-power spindle motor is directly connected to the saw blade, which runs smoothly and reliably, has high cutting accuracy and low rotation noise.
6. The saw blade feed adopts a gas-liquid damping device, which runs smoothly and reliably.
7. The mobile head is equipped with an extended follow-up support frame, and the support frame is equipped with an extended support guide rail.
8. Automatic avoidance bracket makes ultra-long cutting more convenient.
9. It has automatic mode, manual mode, form mode, ultra-short cutting mode, ultra-long cutting mode, etc. to meet different processing scenarios.
10. The machine tool guide rails and saw blade motion guide rails all use linear motion pairs-square rails, which can maintain accuracy for a long time.
11. Low-voltage electrical appliances use Schneider or Siemens, and pneumatic components use Taiwan AirTac to ensure the safety and stability of the machine.
12. The length of the Aluminum Curtain Wall Cutting Machine can be extended according to customer requirements.
13. Two-year warranty for the whole machine and lifetime service.
TECHNICAL SPECIFICATION
| Model | LSKR2-CNC-600X6000 |
| Power Voltage | 380V 50Hz |
| Total Power | 10 KW |
| Spindle Motor Power | 4KW * 2 |
| Speed of Spindle Motor | 2840 r/min |
| Air Pressure | 0.6-0.8 MPa |
| Diameter of Saw Blades | 600mm |
| Cutting Angles | 45°~90°~157.5° |
| Cutting Width | Max. 180mm |
| Cutting Height | 150~ 300mm |
| 90° Cutting Length | 330~ 6000mm |
| 45° Cutting Length | 350~ 6000mm |
| Overall Dimension | 8000*1500*2040mm |
| Net Weight | 2500 KGS |
| Packing Size | 8200*1600*2240mm |
| Gross Weight | 2650 KGS |
DETAILS OF ALUMINUM CURTAIN WALL CUTTING MACHINE

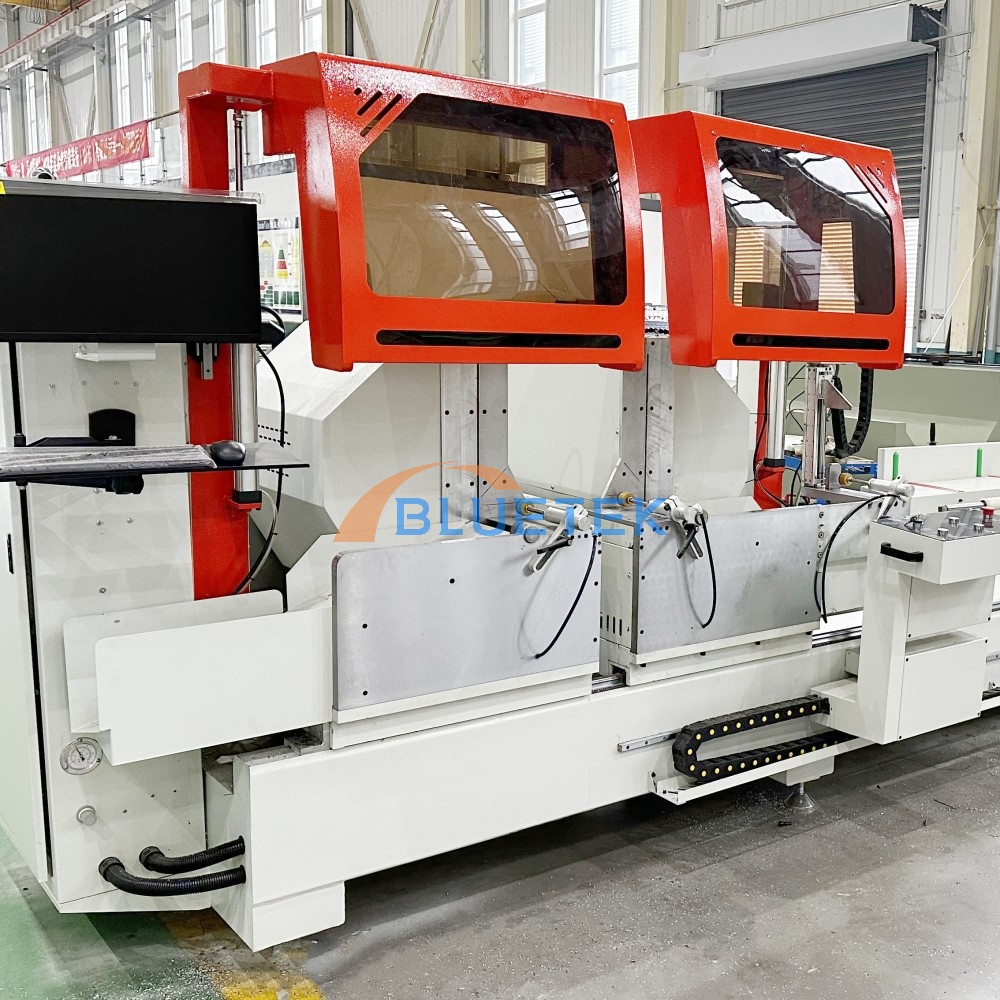

The newly designed appearance structure adopts European design elements, which is simple and beautiful.

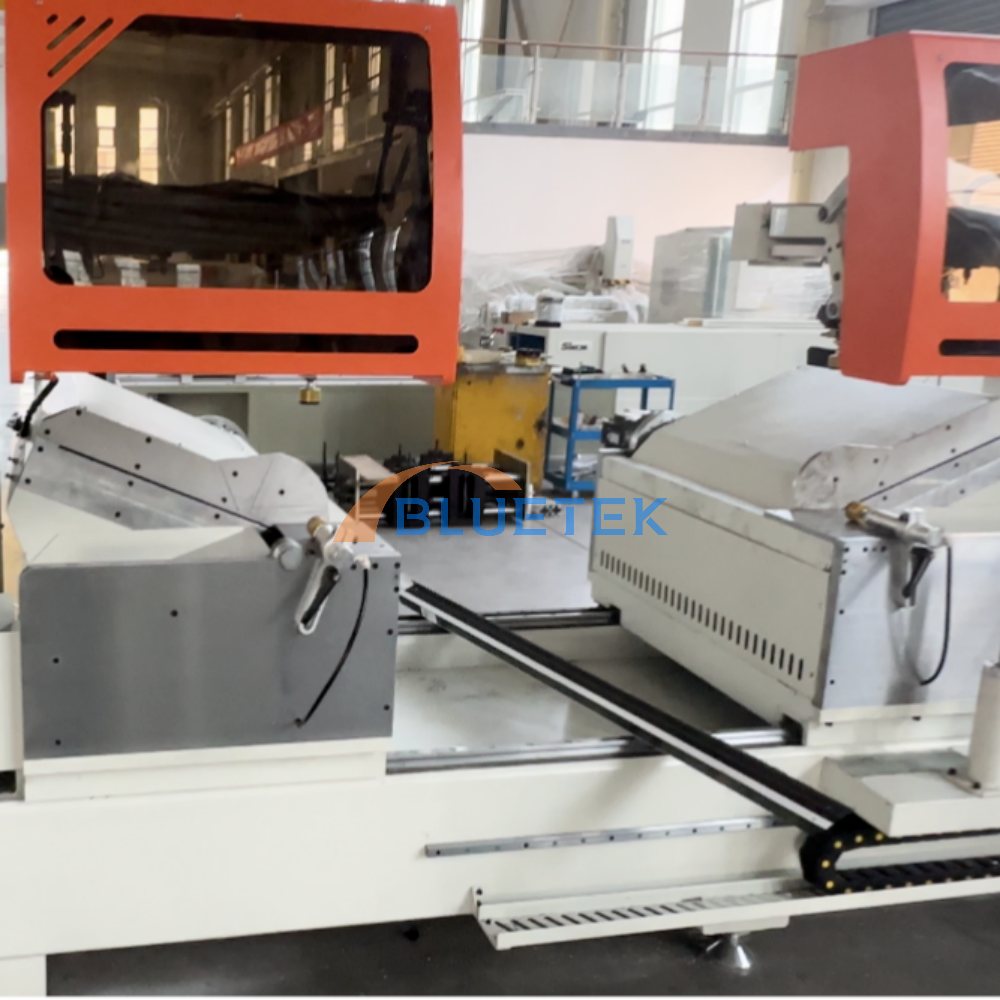

Maximum cutting angle 157.5 degrees
Minimum cutting angle 45 degrees

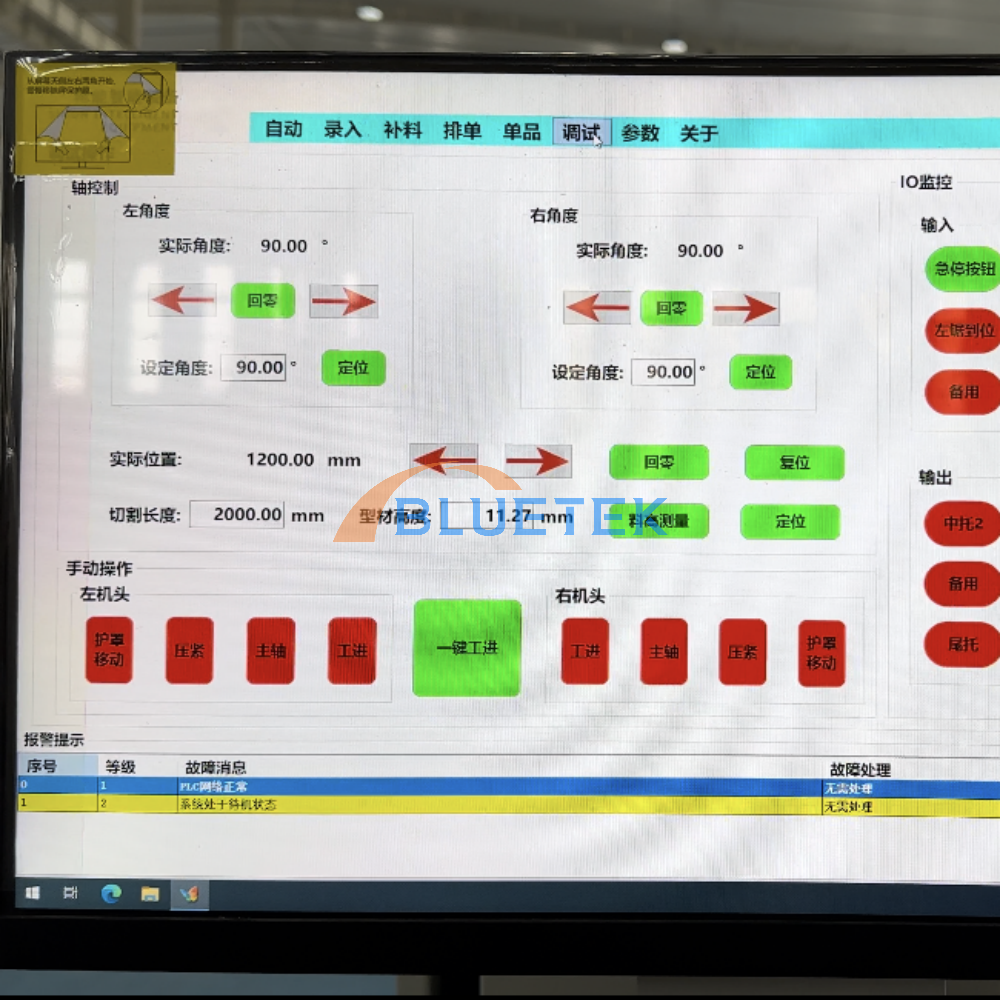

The independently developed control system can be connected to window software and ERP software to achieve multiple cutting modes.
PACKING AND DELIVERY

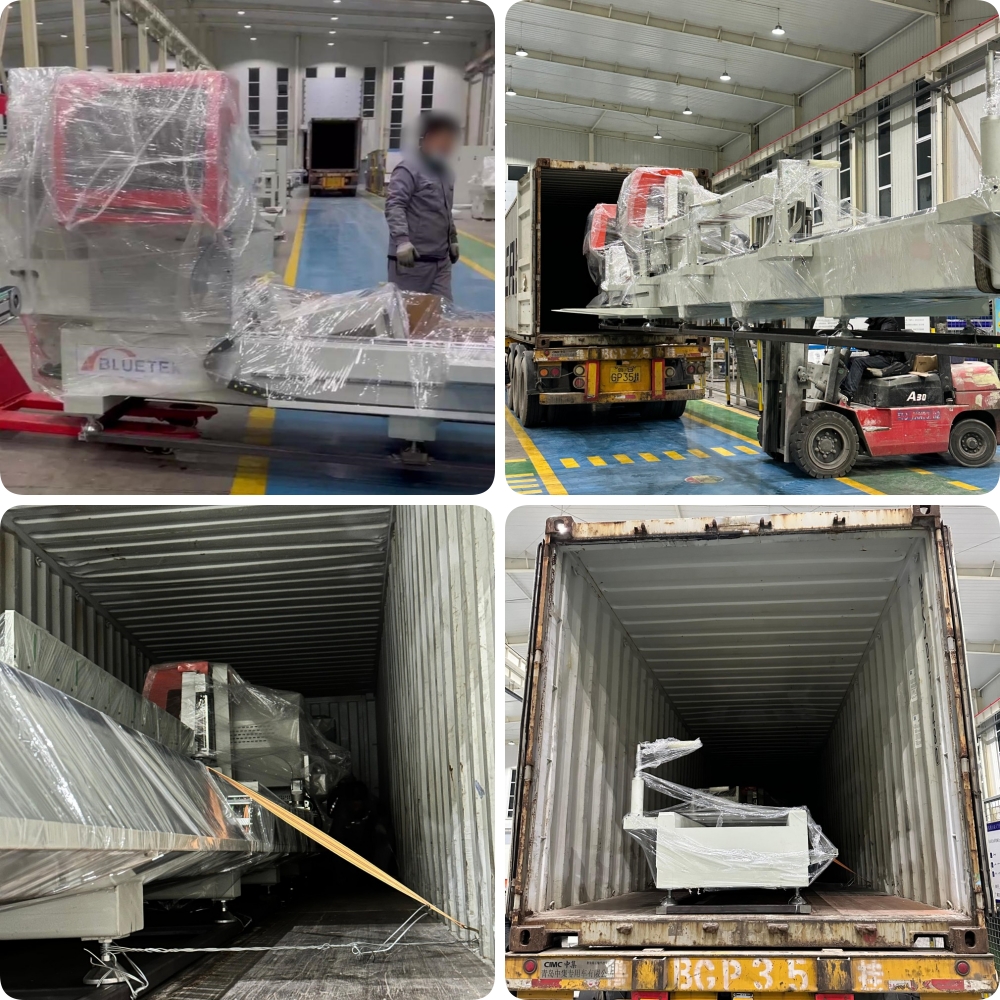

LSKR2-CNC-600X6000 Aluminum curtain wall cutting machine loaded in 40feet container ( FCL ), aboved steel pallet, secured the machine by steel wires and bandages.
