DIGITAL DISPLAY ALUMINUM CUTTING SAW MACHINES

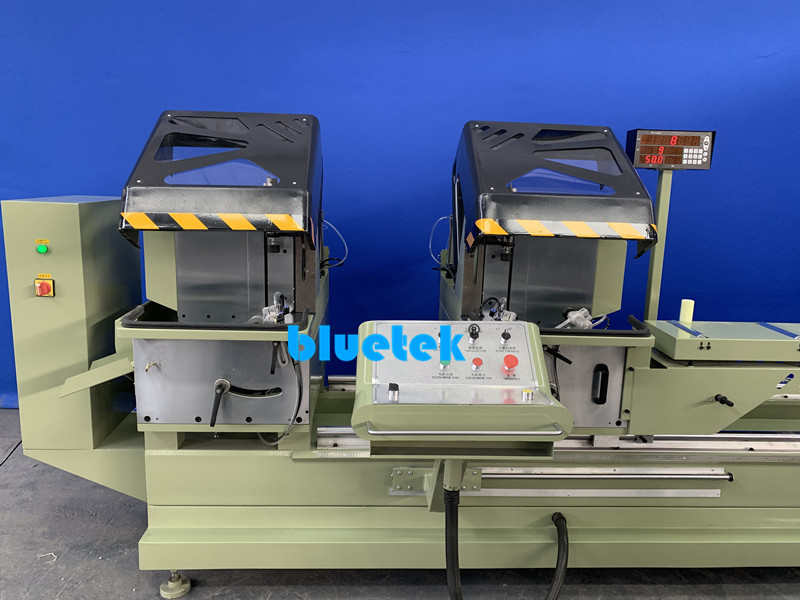

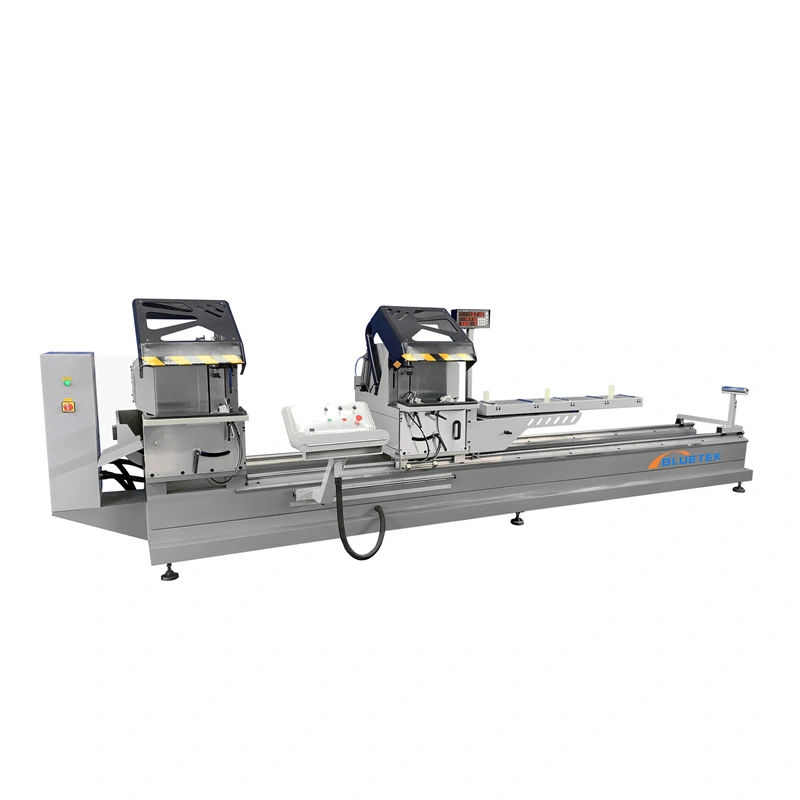

ALUMINIUM DOUBLE HEAD CUTTING MACHINE
MAIN FEATURES
1. Digital display double-head cutting saw, suitable for cutting aluminum alloy profiles.

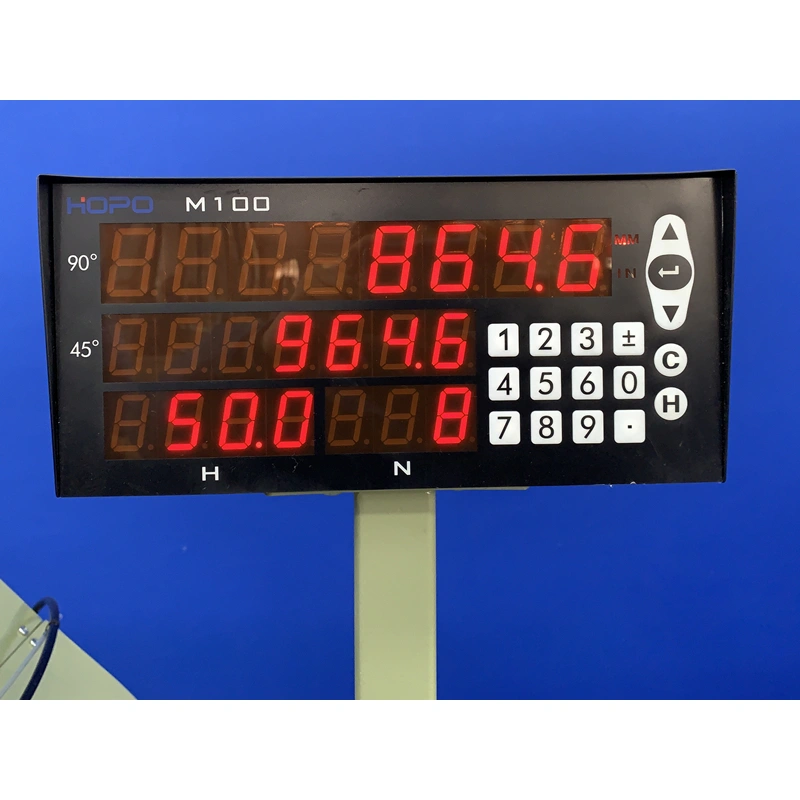

2. Imported magnetic scale and digital display meter, the cutting length is displayed on the large screen, and the positioning accuracy is high.
3. The saw blade feed adopts a gas-liquid damping cylinder, which runs smoothly.
4. Pneumatic swing angle of 45 degrees and 90 degrees.
5. Aluminum cutting saw machines adopt imported saw blades and electrical components are used, and the quality is guaranteed.
TECHNICAL SPECIFICATION
Name | Aluminum Cutting Saw Machines |
Model | LJZ2B-CNS-500x4200 |
Power Supply | 380V 50Hz 3P |
Input Power | 2.2 x2 (Kw) |
Air Pressure | 0.5～0.8(MPa) |
Rotary Speed | 2800(r/min) |
Blade Specification | ￠ 500*30(mm) |
Cutting Angle | 45° / 90° |
Cutting Height | 200~300(mm) |
Cutting Width | 135(mm) |
Cutting Length | 4200(mm) |
Overall Dimension | 5500×1300×1600(mm) |
Weight | 1700(kg) |
STANDARD ACCESSORIES
Low-voltage electrical appliances | Schneider , France |
Buttons | Schneider , France |
Solenoid valve | AirTAC, Taiwan China |
Cylinder | EASUN, Italian joint venture |
Saw Blade | WAGEN, Japan |
Motor | Anhui Zhenyang, China top brand |
Air Filter Device | STNCy, China top brand |
