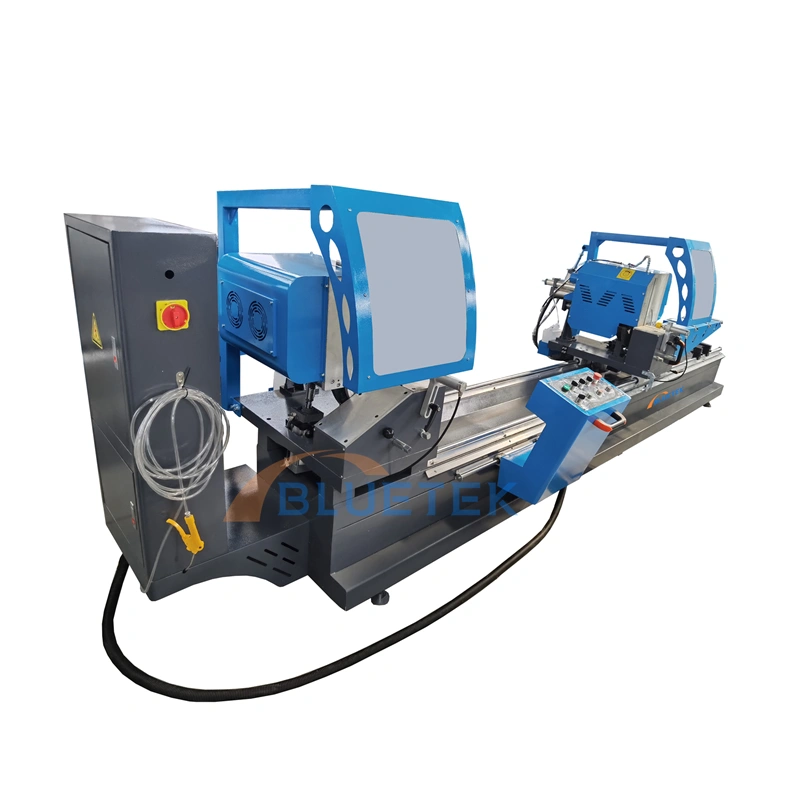

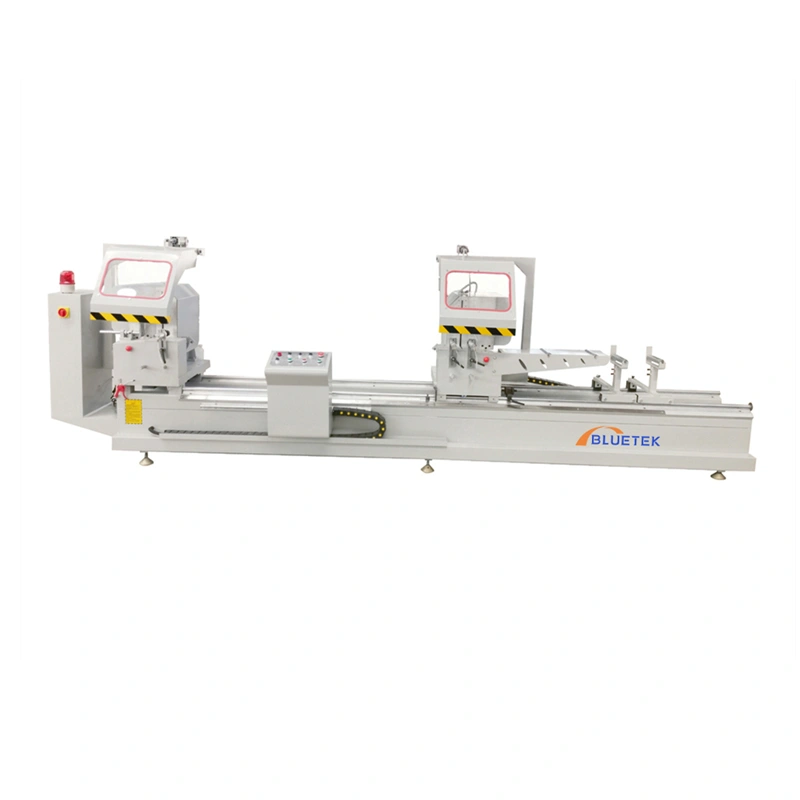

DOUBLE HEAD ALUMINUM PROFILE CUTTING MACHINE
SSJ06-450x3700
MAIN FEATURES
• This machine is used for cutting aluminum door and window.
• Aluminum profile cutting machine can cut for inner 45°,outer 45° and 90° angles.
•Right head can move automatically by motor.
• Blade cutting is from back to front, using the gas-liquid damping mechanism and the linear guide pair, the operation is more stable.
• With middle profile supporter and movable carrier.
• With lubrication cooling spray system.
TECHNICAL SPECIFICATION
Power Supply | 110V / 220V / 380V /415V |
Motor Power | 1.5KW*2 |
Air Pressure | 0.6~0.8 MPa |
Blade Diameter | 450mm*30mm*4.4mm |
Cutting Angle | -45° /+45°/90° |
Cutting Width | 120mm |
Cutting Height | 150-200mm |
Cutting Length | 450~3700mm |
Weight | 1300 KG |
| Machine Size | 4500*1200*1500mm |
STANDARD ACCESSORIES
| low-voltage apparatus | Schneider , France |
| Saw Blade | WAGEN , Japan |
| Solenoid Valve | AirTAC , Taiwan China |
| Air Filter Device | STNC , China |
| Cylinder | EASUN , Italian Joint Venture |
| Motor | Sanyang , China |
Option:
SSJ06-CNS-450x3700 Digital Display Aluminum Profile Cutting Machine
