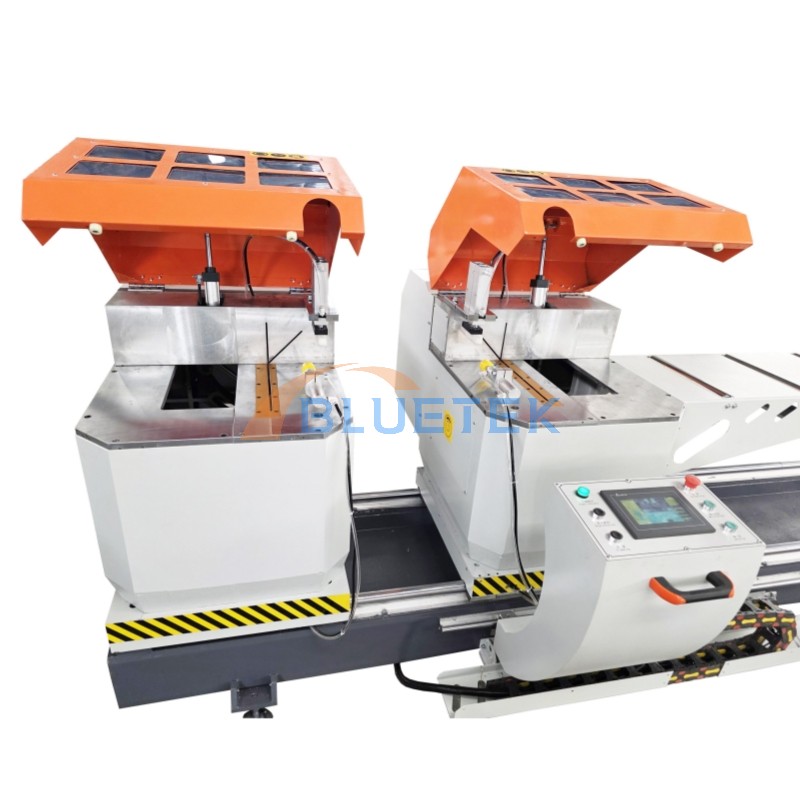

LIZ2E-CNC-500X4200 CNC aluminium cutting machines

Name : CNC aluminium cutting machines, CNC precision aluminium window cutting machine, Double mitre aluminium cutting saw machine, CNC cutting saw.

Model : LJZ2E-CNC-500x4200

Diameter of Sawblade: 500mm


Description

CNC aluminium cutting machines

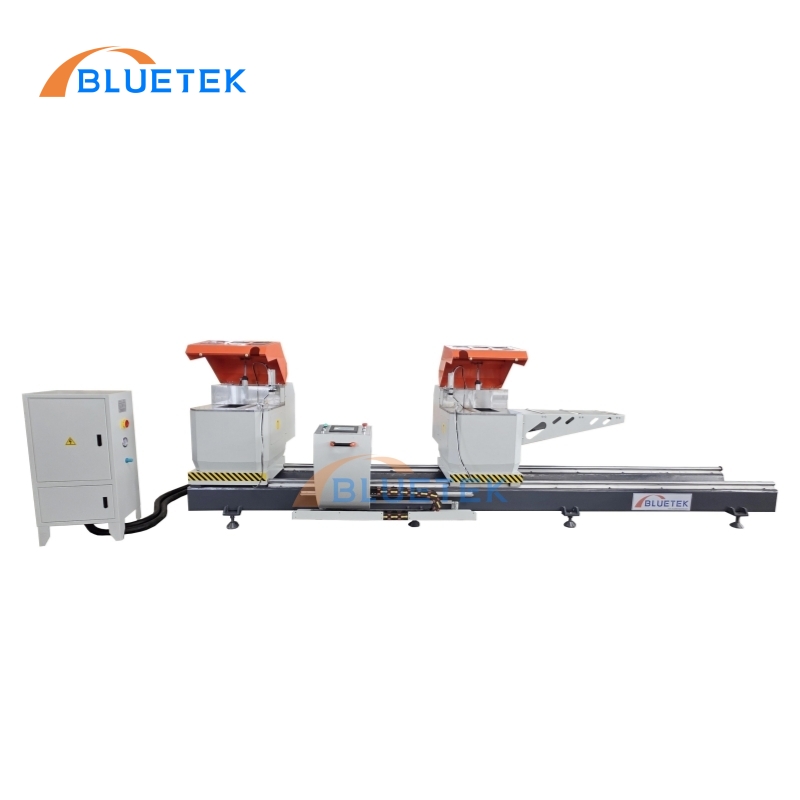

LIZ2E-CNC-500X4200 CNC aluminium cutting machines


MAIN FEATURES

• CNC aluminium cutting machines are mainly used for cutting of aluminum door window profiles, curtain wall profiles, and industrial aluminum.

• With imported carbide saw blades, 45° and 90° angles can be freely converted.

• Up Cutting : Feeding and cutting is from bottom to top

• Two direction cylinder clamping device for smoother sawing and positioning.

• Auto opening safe shield with rubber seal make the user safe.

• With middle profile supporter and movable carrier.

• The safety cover is automatically opened and closed, and the double-button operation is safer when sawing.

• It adopts automatic control system from SIEMENS ( Option : DELTA ), including PLC, touch screen, servo motor,servo driver,etc.

• Right head can feed and cut automatically when cut 90 degrees angle.


TECHNICAL SPECIFICATION

Model

LJZ2E-CNC-500X4200

LJZ2E-CNC-550X4200

Total Power

5.5KW

5.5KW

Input Power

380V 50Hz 3Phase

380V 50Hz 3Phase

Motor Power

2.2KW * 2

2.2KW * 2

Motor Speed

2840 r/min

2840 r/min

Air Pressure

0.6-0.8 MPa

0.6-0.8 MPa

Diameter of Blades

Φ500mm×φ30mm

Φ550mm×φ30mm

Cutting Angles

45°,  90°

45°,  90°

Cutting Width

Max.350 mm

Max.370 mm

Cutting Height 45°

110 mm

125 mm

Cutting Height 90°

150 mm

170 mm

Cutting Length

300 ~4200mm

300 ~4200mm

Overall Dimension

5800*1500*1800 mm

5800*1500*1800 mm

Net Weight

1500 KGS

1500 KGS

Packing Size

5800*1550*1800mm

5800*1550*1800mm

Gross Weight

1700 KGS

1700 KGS


DETAILS OF LIZ2E-CNC-500X4200 CNC ALUMINIUM CUTTING MACHINES

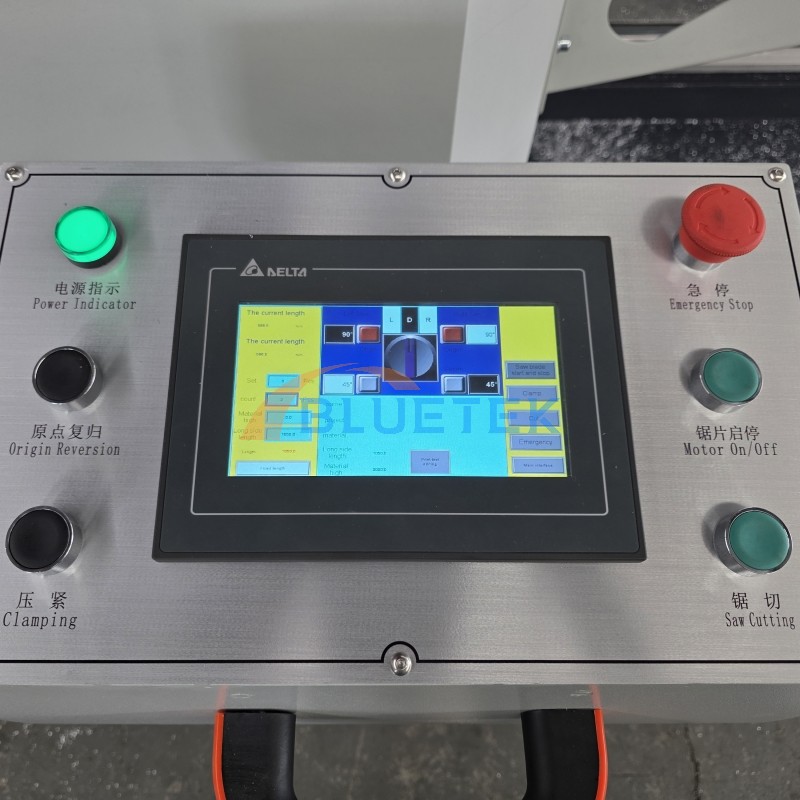

Control Panel of CNC aluminium cutting machines

Control Panel

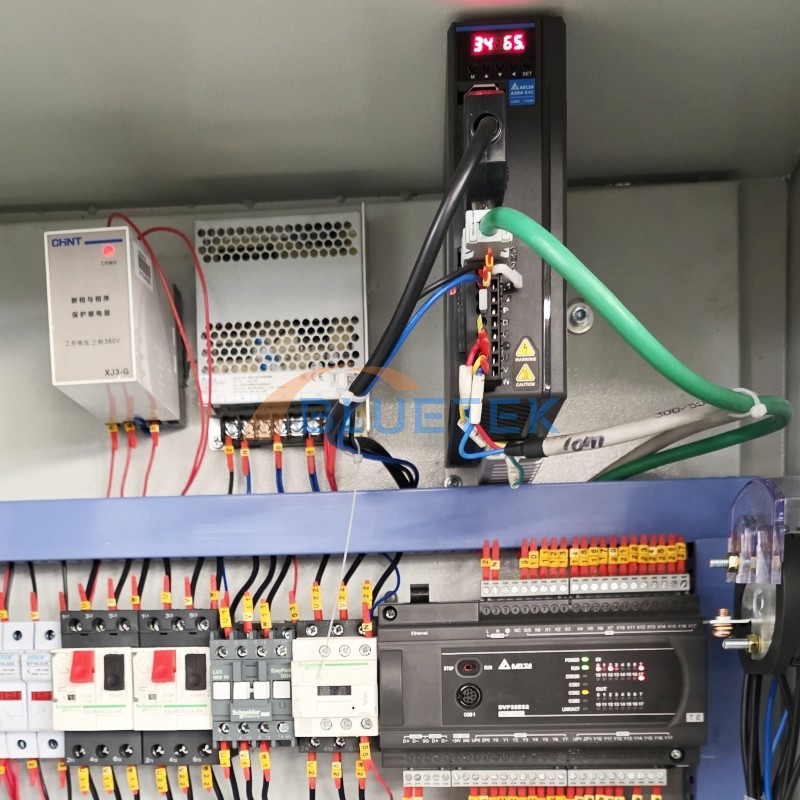

Control system : Taiwan DELTA

Control system : Taiwan DELTA

Electric Parts :  France Schneider


数控双头下摆锯 (4).jpg

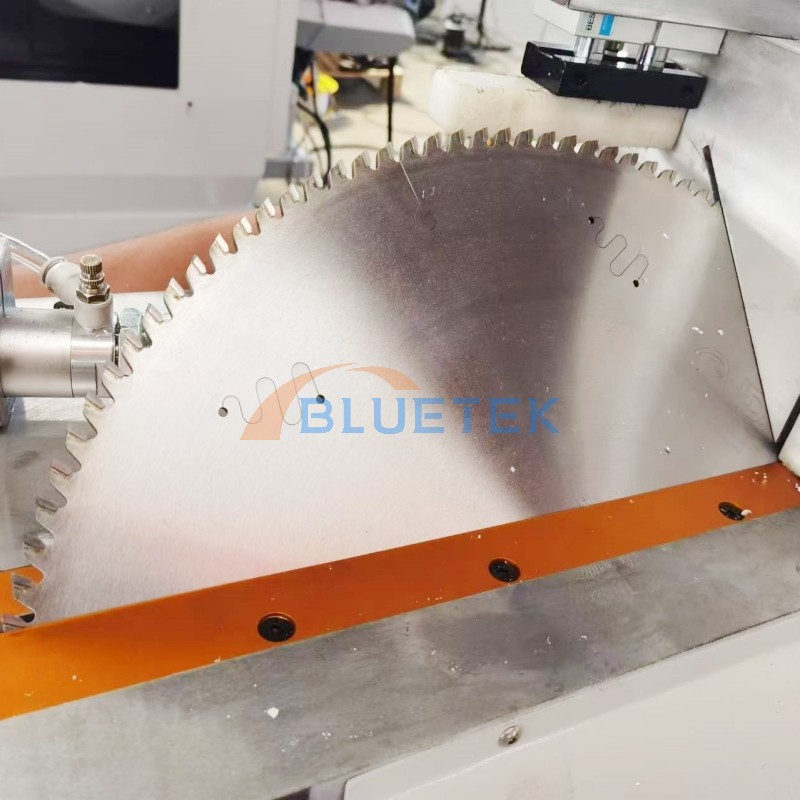

Cutting Mode: Up Cutting

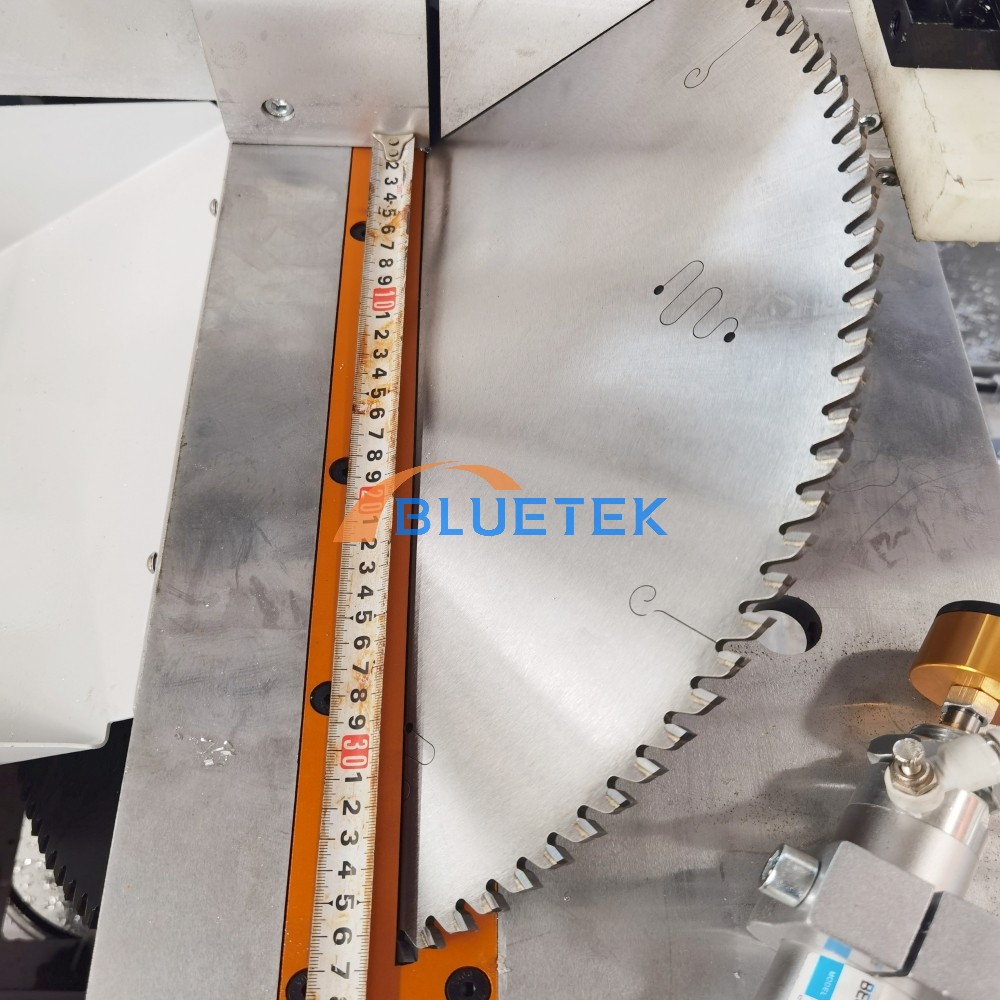

Cutting Width: Max. 350mm

Cutting Width: Max. 350mm


WOODEN CASE PACKING

Wooden case packing for CNC aluminium cutting machines
