Digital Display Aluminium Double Head Cutting Machine

DIGITAL DISPLAY ALUMINIUM DOUBLE HEAD CUTTING MACHINE

LJZ2B-CNS-500x4200

MAIN FEATURES

1. The aluminium double head cutting machine has left and right cutting heads, which are used for cutting aluminum doors and windows, aluminum curtain walls and other industrial aluminum materials.

2. Digital display type cutting machine, large size digital display meter, can display the positioning length of the right saw head, move the right head, the number will change accordingly. The displayed numbers are error-free, which is convenient for workers to operate.

3. Two heads can cut at the same time or separately; rotate the button to select 45 degrees or 90 degrees, and the cylinder will automatically swing the motor head with a high degree of automation.

4. Automatic material height measurement function. There is a lifting clamp next to the right handpiece. After the aluminum material is placed, the clamp is lowered and pressed against the aluminum material. The height is automatically measured and displayed on the digital display.

5. The motor start, cutting, swing angle, and opening and closing of the protective cover of the cutting machine are all operated by buttons without worker intervention; if you need to change the cutting length, manually loosen the fixed lock on the right machine head guide rail. Move the right handpiece to the required length position by hand, and then lock it.

6. The diameter of the saw blade is 500mm, Japanese brand WAGEN, the maximum cutting width is 135mm, and the maximum cutting length between the two heads is 4200mm. If the customer has special requirements, the cutting length can be extended.

7. The factory price aluminium double head cutting machine is a heavy-duty machine for processing metal, which requires high accuracy. In order to ensure the accuracy and stability of the machine, all machine tools are super-rigid design and undergo natural aging treatment. After more than ten years of use, the machine still maintains high accuracy and stability.

TECHNICAL SPECIFICATION

STANDARD ACCESSORIES

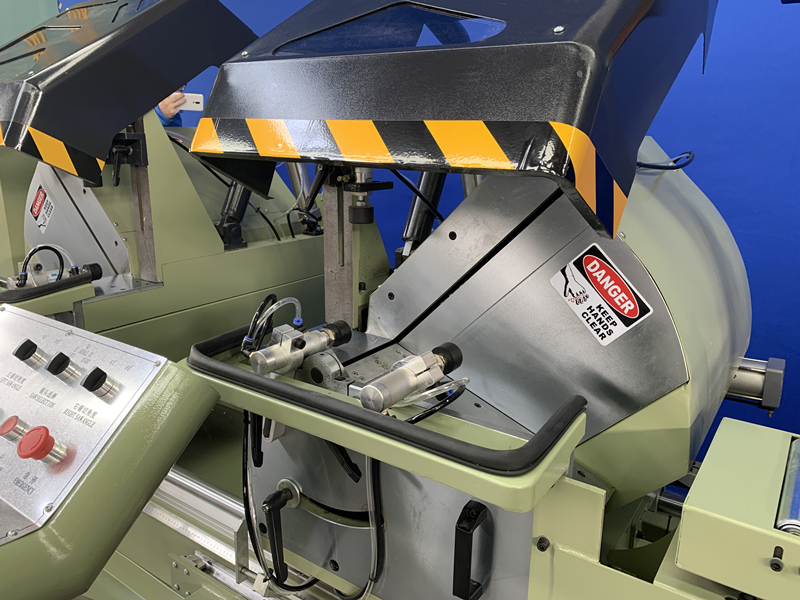

DETAILS OF FACTORY PRICE ALUMINIUM DOUBLE HEAD CUTTING MACHINE
