Insulating Glass Sealing Robot

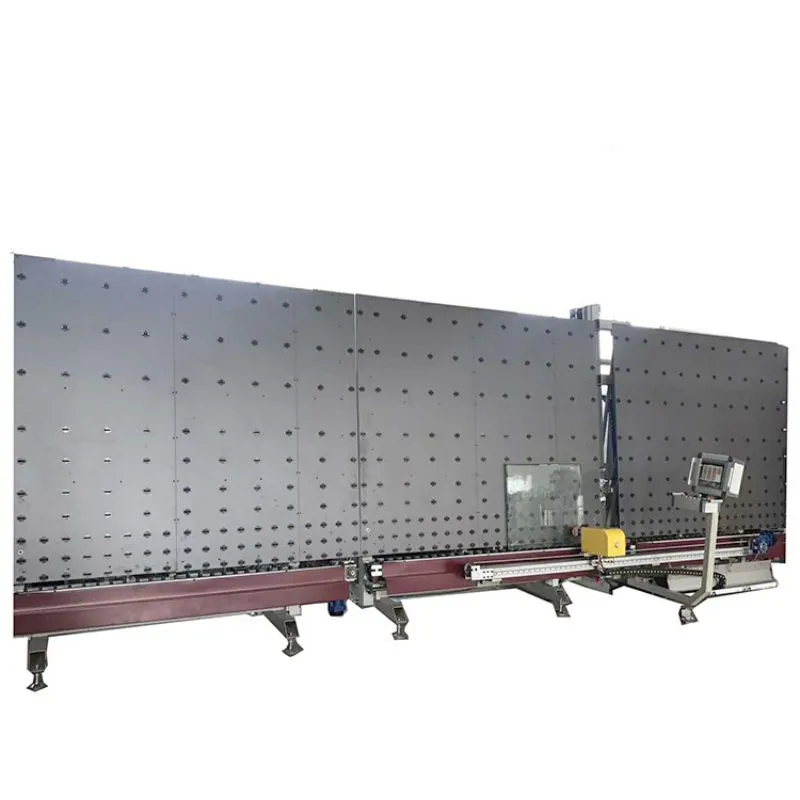

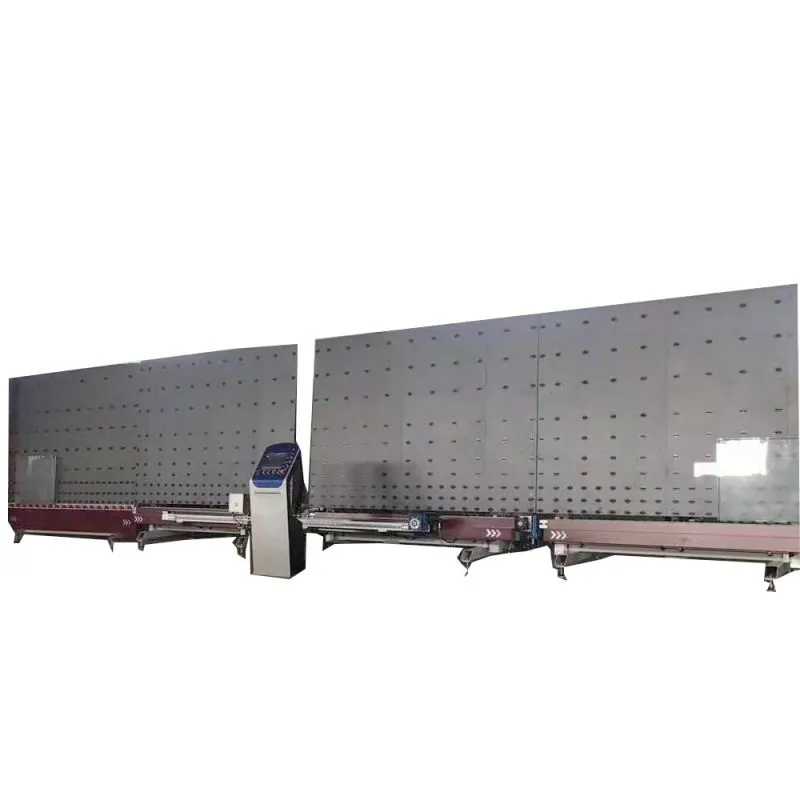

INSULATING GLASS CNC AUTOMATIC SEALANT SEALING ROBOT

1. The double glazing insulating glass sealing robot is composed of three parts: inputting section, outputting section, and waiting section, to realize uninterrupted production.

2. The transmission of each motion unit is controlled by a servo motor, combined with a high-precision sensor, to achieve precise positioning.

3. The back-to-back wheels on each section are installed in a mosaic style to make the wheel surface smoother, the glass conveying is more stable, and the straightness of the sealant will be better.

4. It consists of a two-component glue control system and a hydraulic system. Under the control of the electrical system, it realizes sealing glue supply and secondary pressurization, so as to realize the effect of stable glue dispensing.

5. Using high-precision accessories, the mechanical structure is stable, the stable operation of the equipment is guaranteed, and the service life is long.

6. The main vitality parts and control systems are all internationally renowned brands with stable and reliable performance.

7.The operation interface of Insulating Glass CNC Automatic Sealant Sealing Robot is reasonably distributed, each movement unit can be operated individually, and the requirements for the glue effect can be adjusted at any time, which is simple and easy to learn and easy to operate.

8. The processing parameters of insulating glass can be stored in the system, edited into different file names, and selected from the list when used again, all parameters such as speed, pressure, and mechanical position will change automatically.

9. When sealing, each side and each corner can realize independent interface parameter adjustment. The sealing effect is good, the corners are full, and the plane is full, without repairing.

10. It can be connected to the vertical insulating glass production line to realize the flow operation and online sealing.

11. Insulating Glass CNC Automatic Sealant Sealing Robot Line is suitable for large-scale doors, windows, curtain walls, and decoration enterprises. It has the characteristics of high production efficiency and reduced labor intensity, and can be continuously produced.

TECHNICAL SPECIFICATION

STANDARD ACCESSORIES
