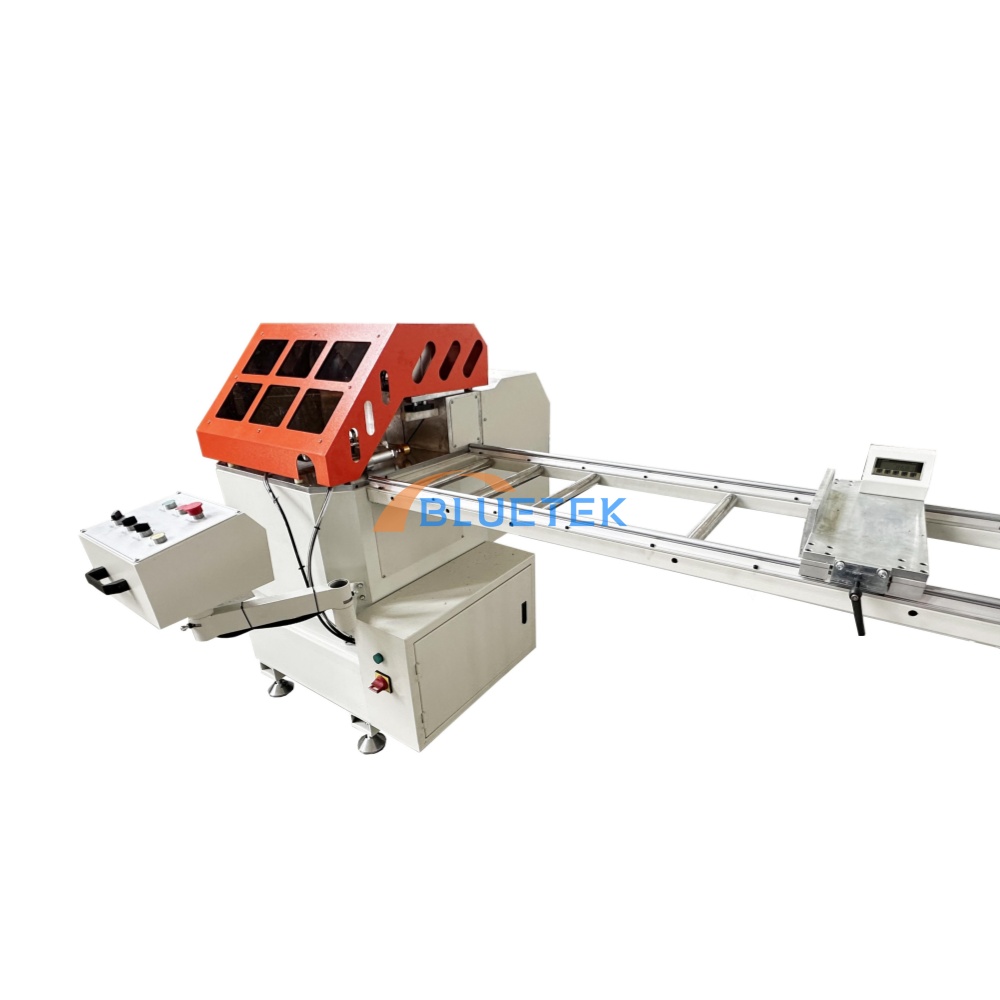

Single head T slot aluminium cutting machine is used for cutting aluminium tube, aluminium extrusion, aluminium window door profile, aluminum curtain wall, radiator aluminium, and other aluminium profiles.
Pneumatic safety cover, which automatically falls when cutting, and automatically rises when cutting, which is safe and convenient.
Up cutting for 45° and 90° , Max.cutting width 250mm
MAIN FEATURES
• Heavy-duty precision cutting saw, suitable for cutting T slot aluminum, aluminium window door, aluminium tube.
• Saw blade imported from Japan, beautiful cutting, long service life.
• Saw blade diameter 500mm, large cutting range.
• Single head T slot aluminium cutting machine cuts 45° and 90° angles.
• Low-voltage electrical appliances use Schneider, safe and durable.
• Optional : Digital display measuring ruler.
CNC automatic end-stop
TECHNICAL SPECIFICATION OF T SLOT ALUMINIUM CUTTING MACHINE
Model | LJD-500 |
Power Voltage | Free Customized |
Motor Power | 3KW |
Air Pressure | 0.6~0.8 MPa |
Motor Speed | 2800 r/min |
Blade Diameter | 500mm*30mm*4.4mm |
Cutting Angle | 45° /90° |
Cutting Width | 250-300mm |
Cutting Height | 110~150mm |
Gross Weight | 380KG |
Machine Dimension | 1400*1400*1412mm |
CUTTING APPLICATIONS
