MAIN FEATURES
• CNC double head cutting saw is used for cutting aluminum profile, only cutting 45° angle
• Using SIEMENS CNC system, stable and reliable.
• The spindle motor is directly connected to the saw blade, with high precision and high stability.
• The saw blade imported from Japan with a diameter of 550mm is adopted, with perfect cutting effect and long service life.
• The feed system adopts linear square guide rail, which is very stable.
TECHNICAL SPECIFICATION
Name | Aluminium CNC double head cutting saw |
Model | LJZ2F-CNC-550x4200 |
Power Supply | 110V/ 220v/380V |
Input Power | 3 x2 (Kw) |
Air Pressure | 0.5～0.8(MPa) |
Rotary Speed | 2800(r/min) |
Blade Specification | ￠ 550*30(mm) |
Cutting Angle | 45° |
Cutting Height | 200~300(mm) |
Cutting Width | 160(mm) |
Cutting Length | 100~4200(mm) |
Overall Dimension | 6500×1300×1600(mm) |
Weight | 2400(kg) |
Touch Screen | SIEMENS, Germany |
PLC | SIEMENS, Germany |
Servo Driver | SIEMENS, Germany |
Servo Motor | SIEMENS, Germany |
Low-voltage electrical appliances | Schneider , France |
Buttons | Schneider , France |
Solenoid valve | AirTAC, Taiwan China |
Square Guide Rail | HIWIN,Taiwan China |
Cylinder | EASUN, Italian joint venture |
Saw Blade | WAGEN, Japan |
Motor | Anhui Zhenyang, China top brand |
Air Filter Device | STNCy, China top brand |

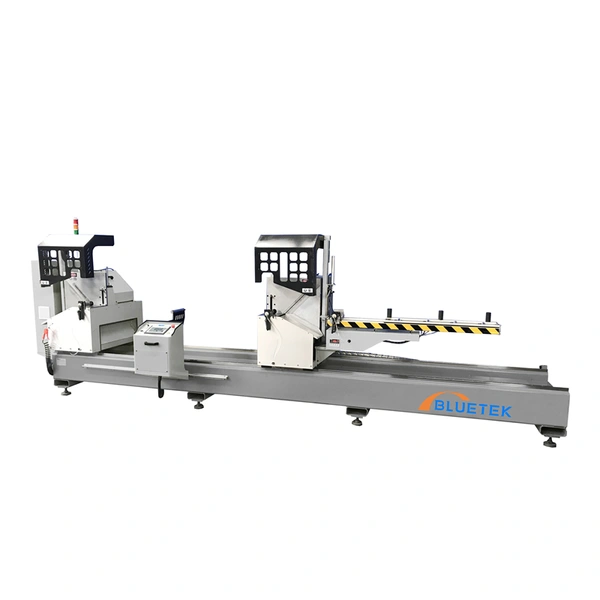

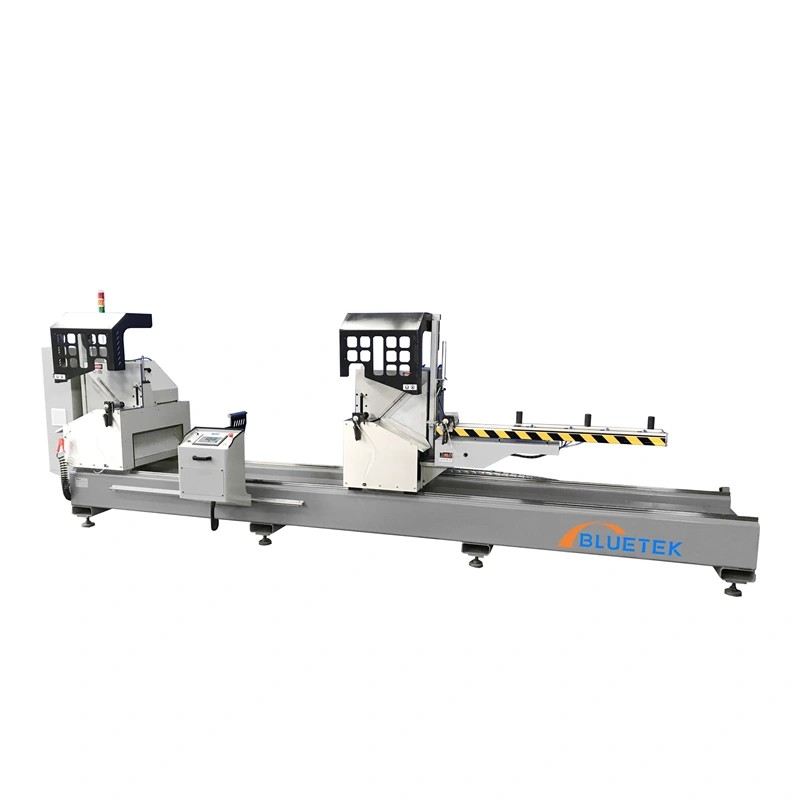

DETAILS OF 45° ALUMINIUM CNC DOUBLE HEAD CUTTING SAW
