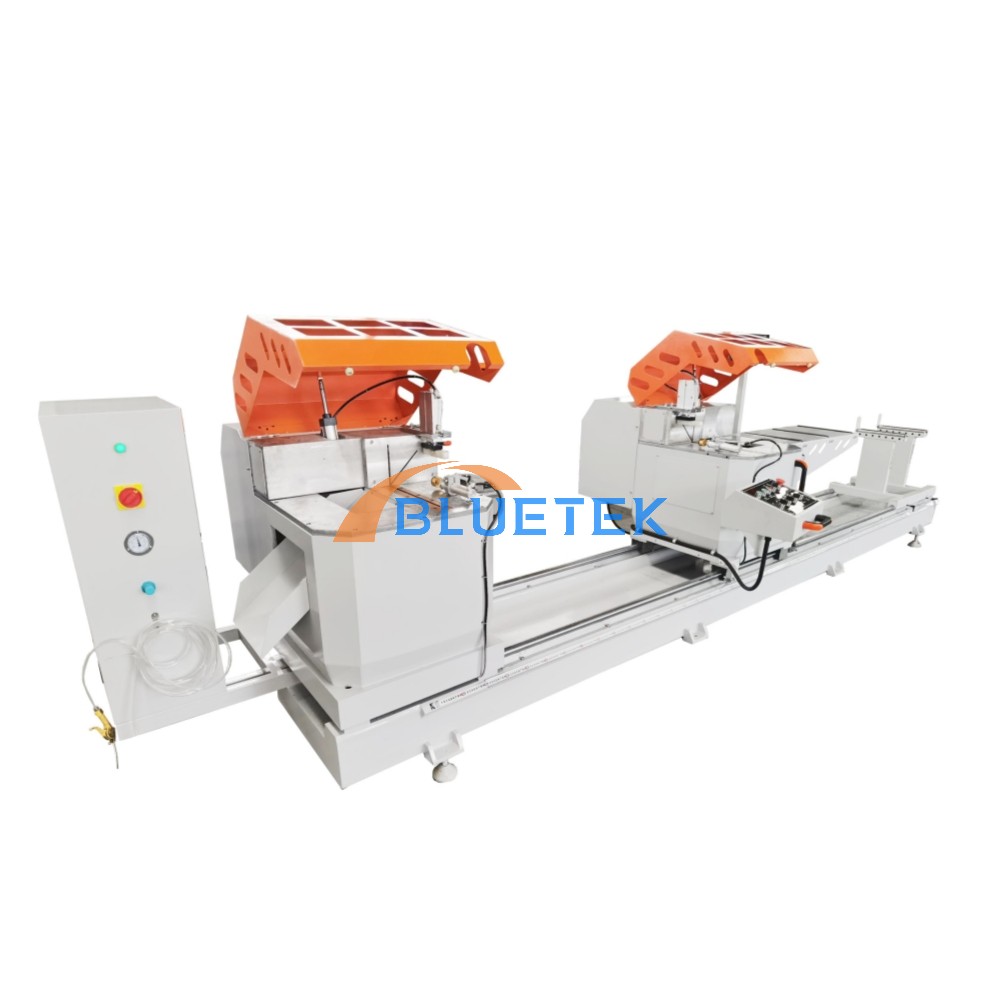

HIGH PRECISION ALUMINIUM WINDOW DOUBLE HEADS CUTTING SAW
MAIN FEATURES
Aluminium window and door making machine for up cutting 45 degrees and 90 degrees angles.
• Saw blade cuts from bottom to top max. width up to 350 mm and is used for cutting aluminum window door ,curtain walls, and industrial aluminum profiles.
• Pneumatic swing angle of 45 and 90 degrees.
• With Digital measuring ruler, convenient and fast.
• Coolant spray to improve cutting quality.
• The longest cutting length is 4200 mm, and customized length is supported.
• Diamond saw blades, longer service life and higher precision.
• Both heads have horizontal and vertical clamps.
• Auto opening safe shield to make the user safe.
• Equipped with air gun and cooling spray device.
TECHNICAL SPECIFICATION
Model | LJZ2E-CNS-500X4200 | LJZ2E-CNS-550X4200 |
Total Power | 5.0KW | 5.0KW |
Input Power | 380V 50Hz 3Phase | 380V 50Hz 3Phase |
Motor Power | 2.2KW * 2 | 2.2KW * 2 |
Motor Speed | 2840 r/min | 2840 r/min |
Air Pressure | 0.6-0.8 MPa | 0.6-0.8 MPa |
Diameter of Blades | Φ500mm×φ30mm | Φ550mm×φ30mm |
Cutting Angles | 45°, 90° | 45°, 90° |
Cutting Width | Max.350 mm | Max.370 mm |
Cutting Height 45° | 110 mm | 125 mm |
Cutting Height 90° | 150 mm | 170 mm |
Cutting Length | 300 ~4200mm | 300 ~4200mm |
Overall Dimension | 5800*1500*1800 mm | 5800*1500*1800 mm |
Net Weight | 1500 KGS | 1500 KGS |
Packing Size | 5800*1550*1800mm | 5800*1550*1800mm |
Gross Weight | 1700 KGS | 1700 KGS |
STANDARD ACCESSORIES
Low-voltage electrical appliances | Schneider , France |
Buttons | Schneider , France |
Solenoid valve | AirTAC, Taiwan China |
Square Guide Rail | HIWIN,Taiwan China |
Cylinder | EASUN, Italian joint venture |
Saw Blade | Diamond Saw Blades |
Motor | Anhui Zhenyang, China top brand |
Air Filter Device | STNC, China top brand |

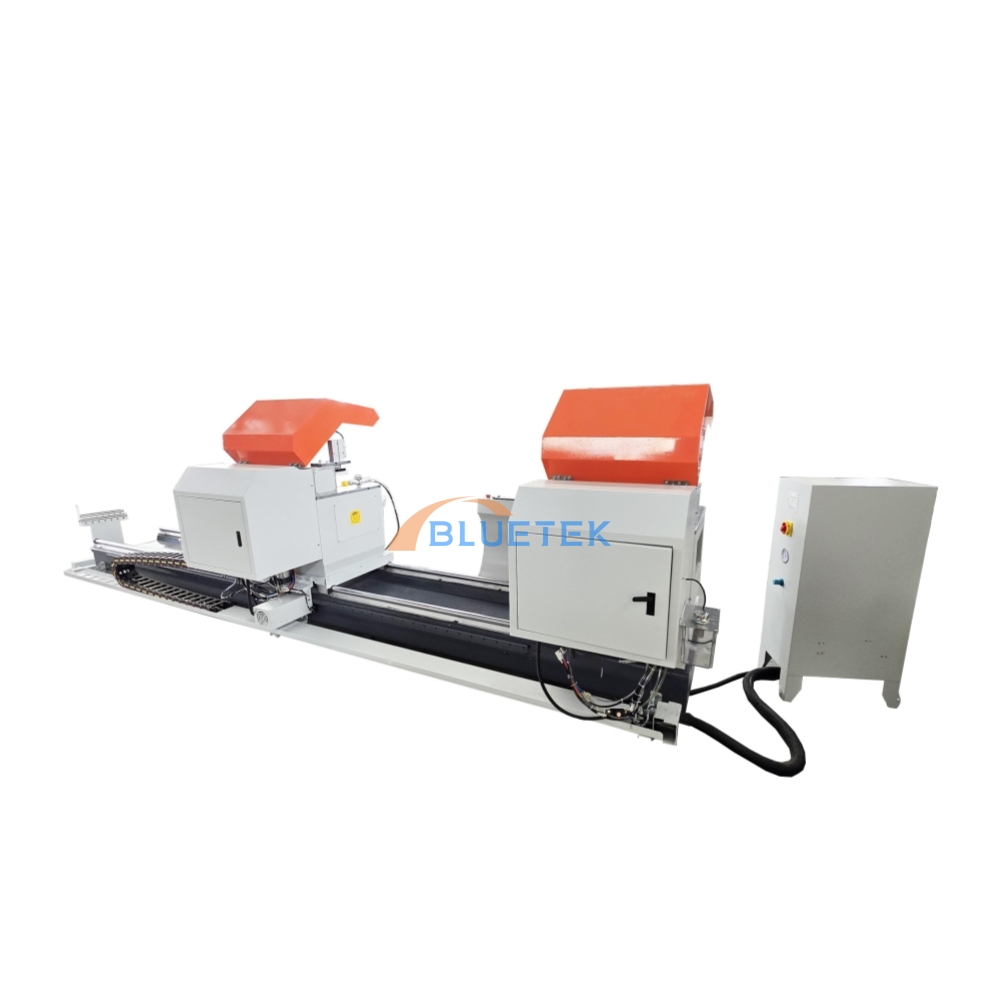

DETAILS OF LJZ2E-CNS-500X4200 HIGH PRECISION DOUBLE HEAD CUTTING SAW

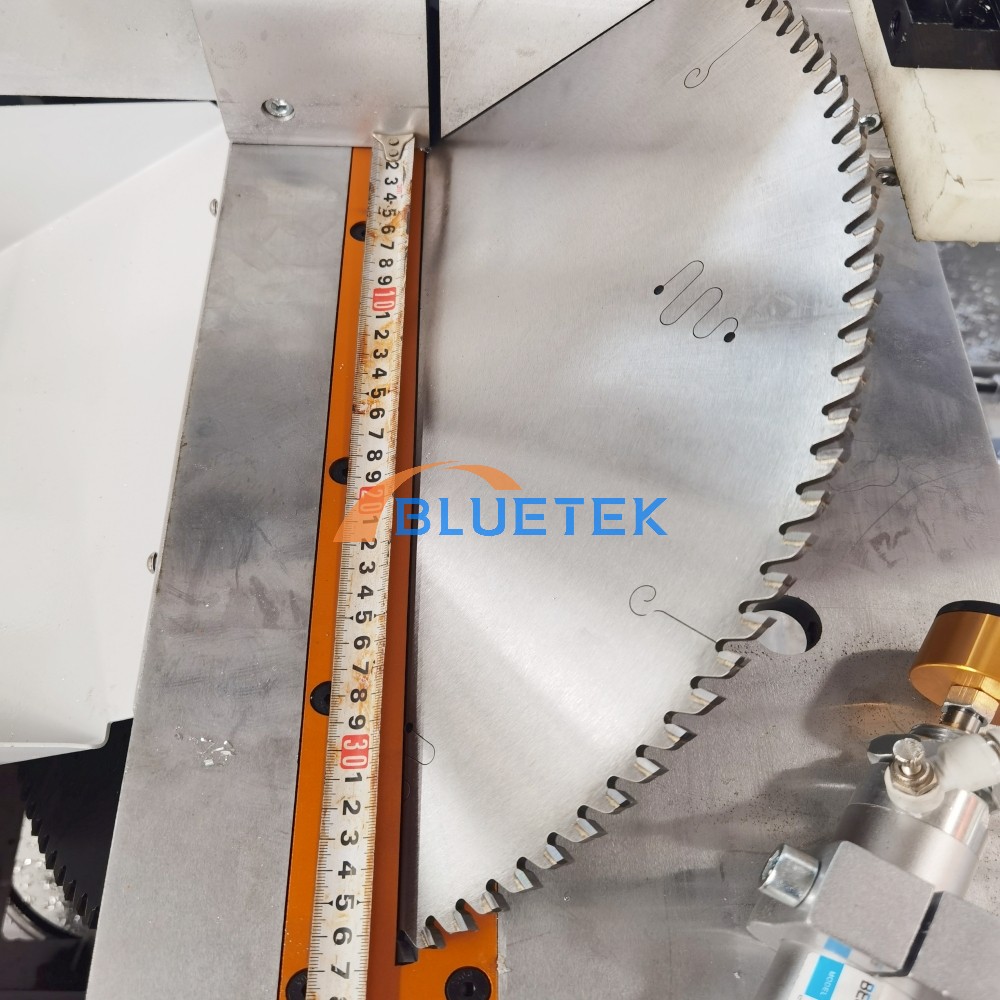

Up cutting for inner 45° and 90° angles, suitable for cutting extra wide aluminum profiles.
Digital measuring ruler, convenient for positioning the cutting length. Supports conversion between inches and millimeters.

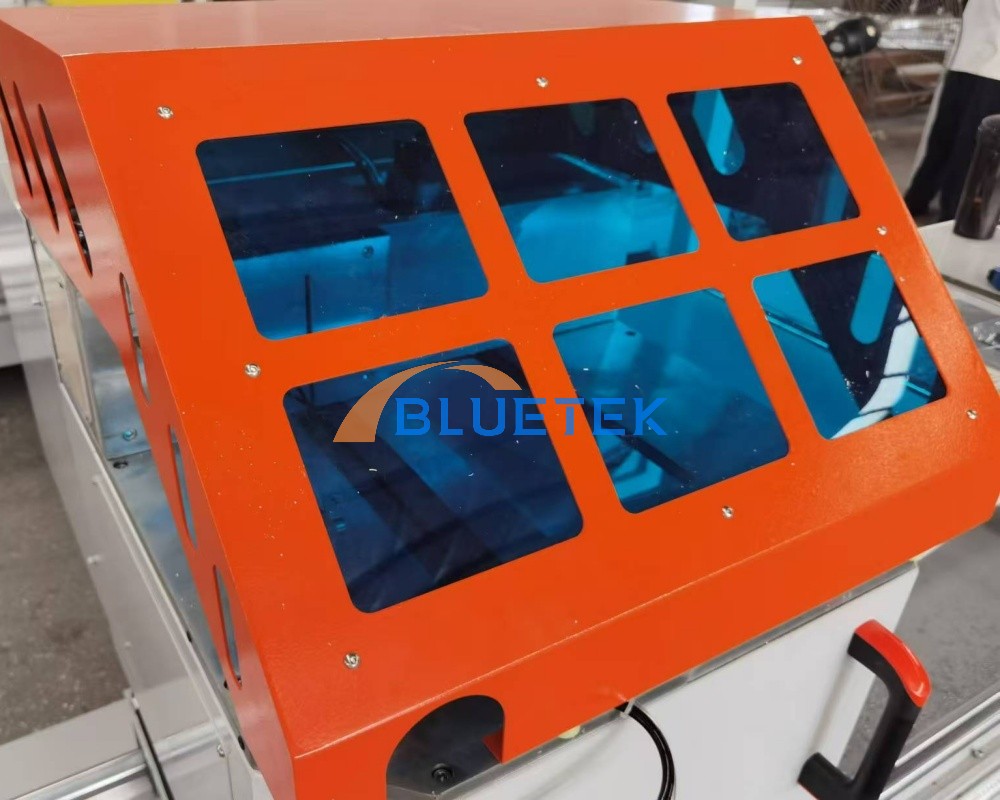

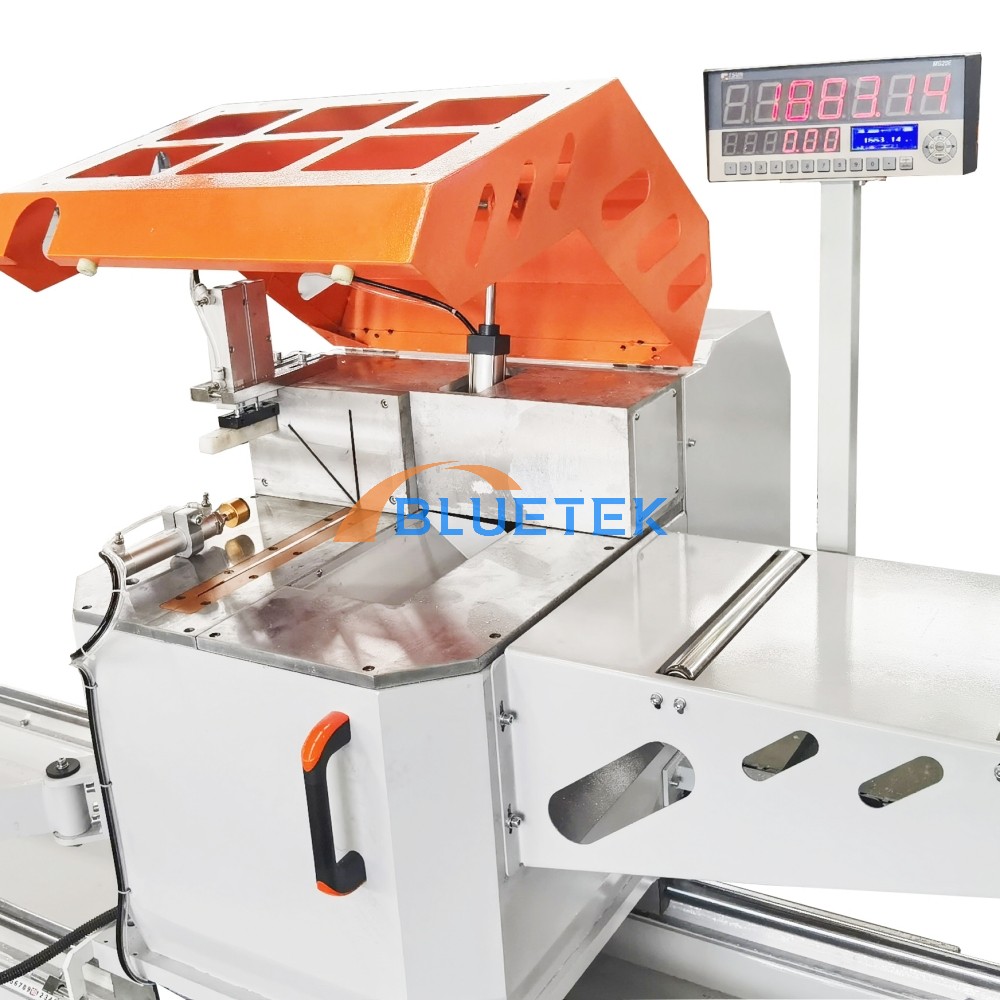

Automatic protective cover, which is safer.

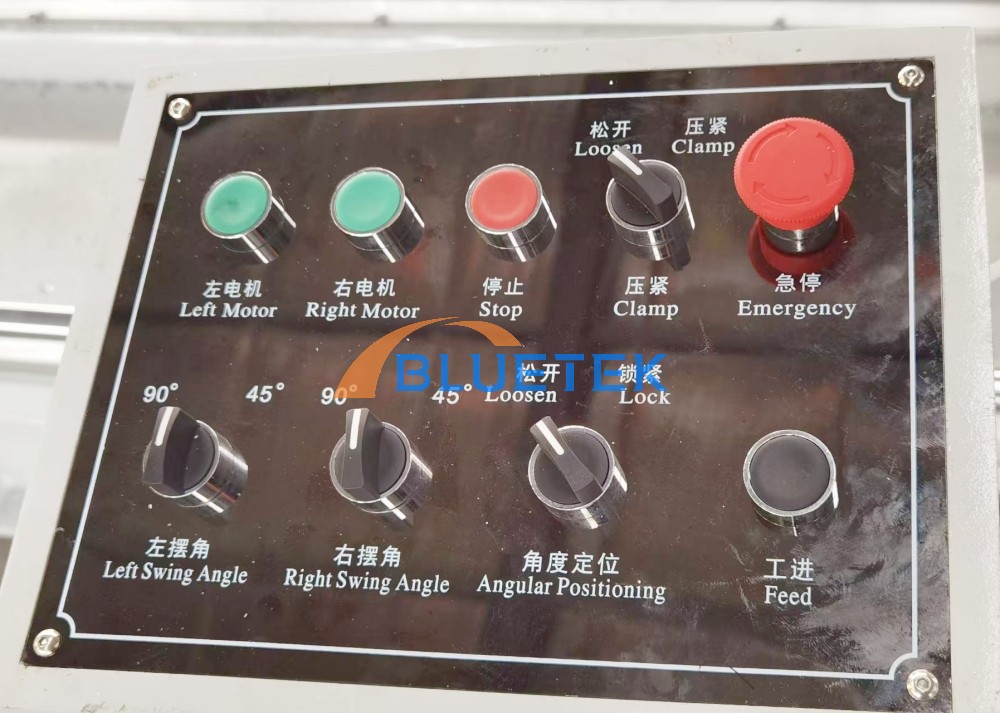

Control panale
ABOUT BLUETEK
BLUETEK is located in Jinan, Shandong, and have been specialized in mid-to-high-end aluminum door and window manufacturing machines, aluminum curtain wall manufacturing machines, PVC door and window manufacturing machines, as well as industrial aluminum processing equipment and solutions for 20 years.

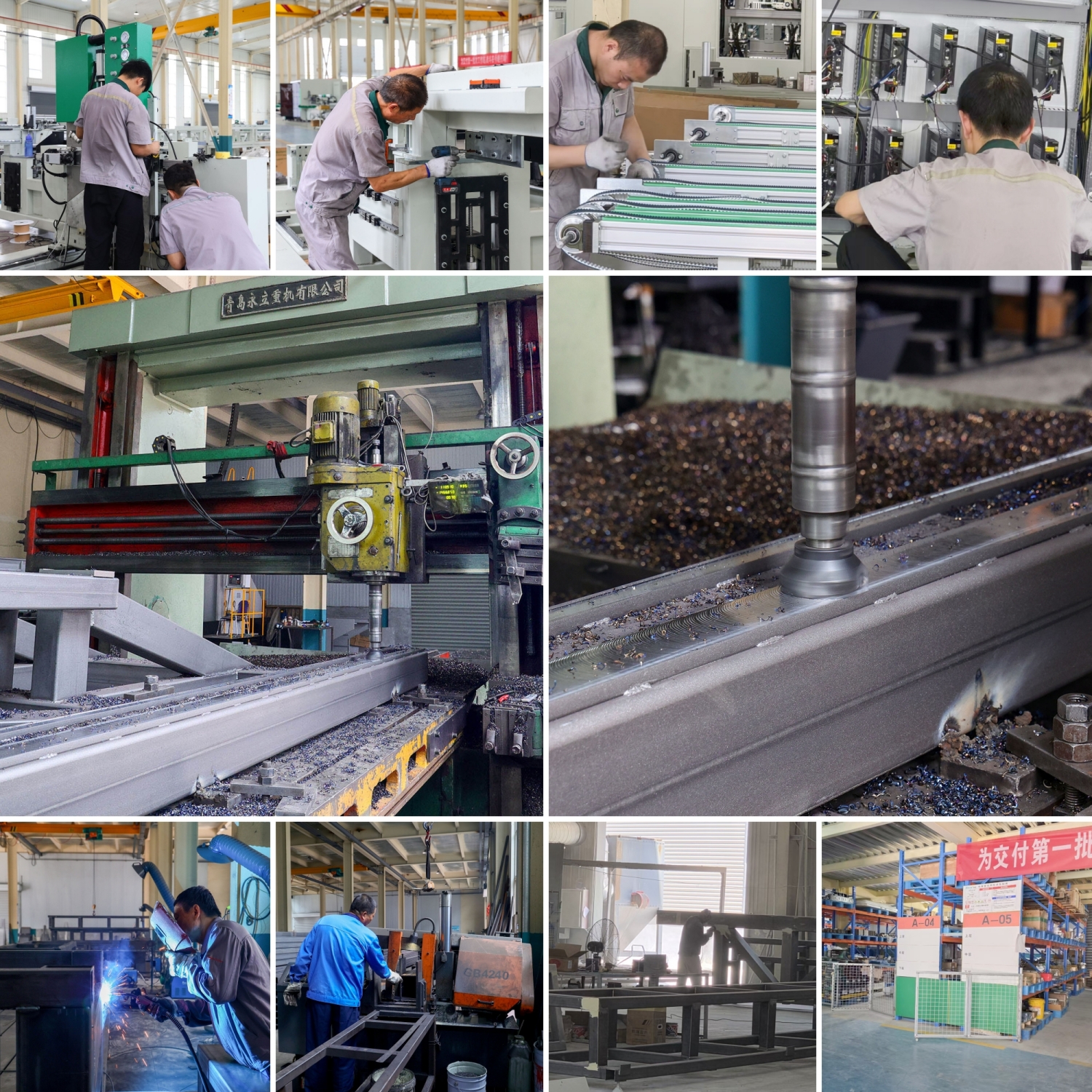

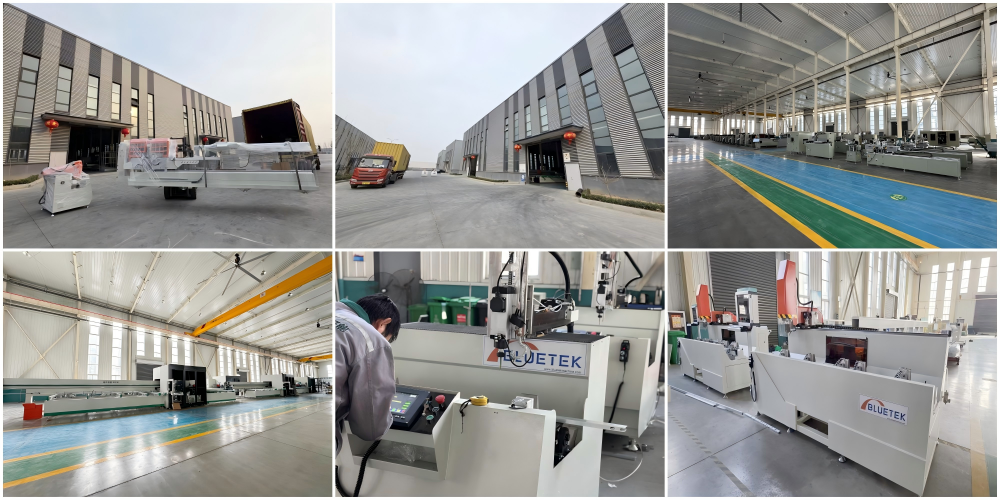

Our company currently has three modern workshops with a total area of 18,000 square meters, with its own machining, sheet metal processing, and spraying. The total number of employees is more than 100, with a research and development team of more than a dozen people.
Professional exhibitions at home and abroad

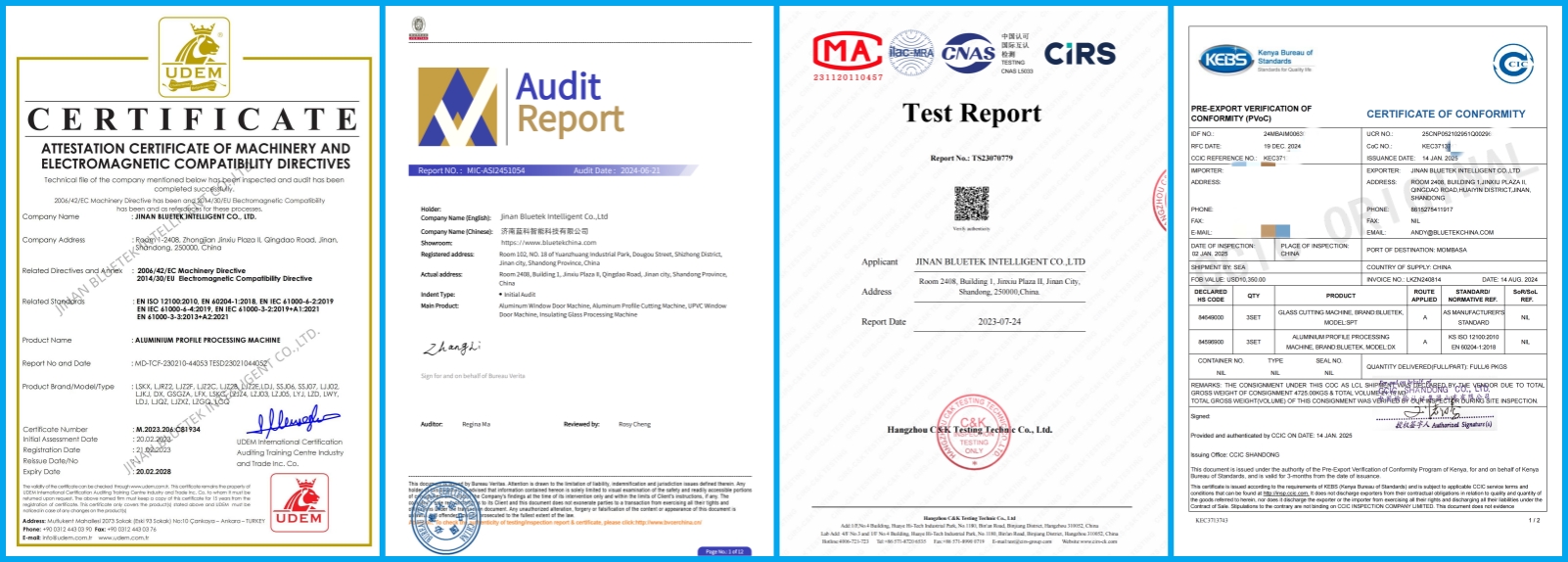

Our products have passed European CE certification, BV certification, CNAS test report, etc., ensuring the safety of the products.

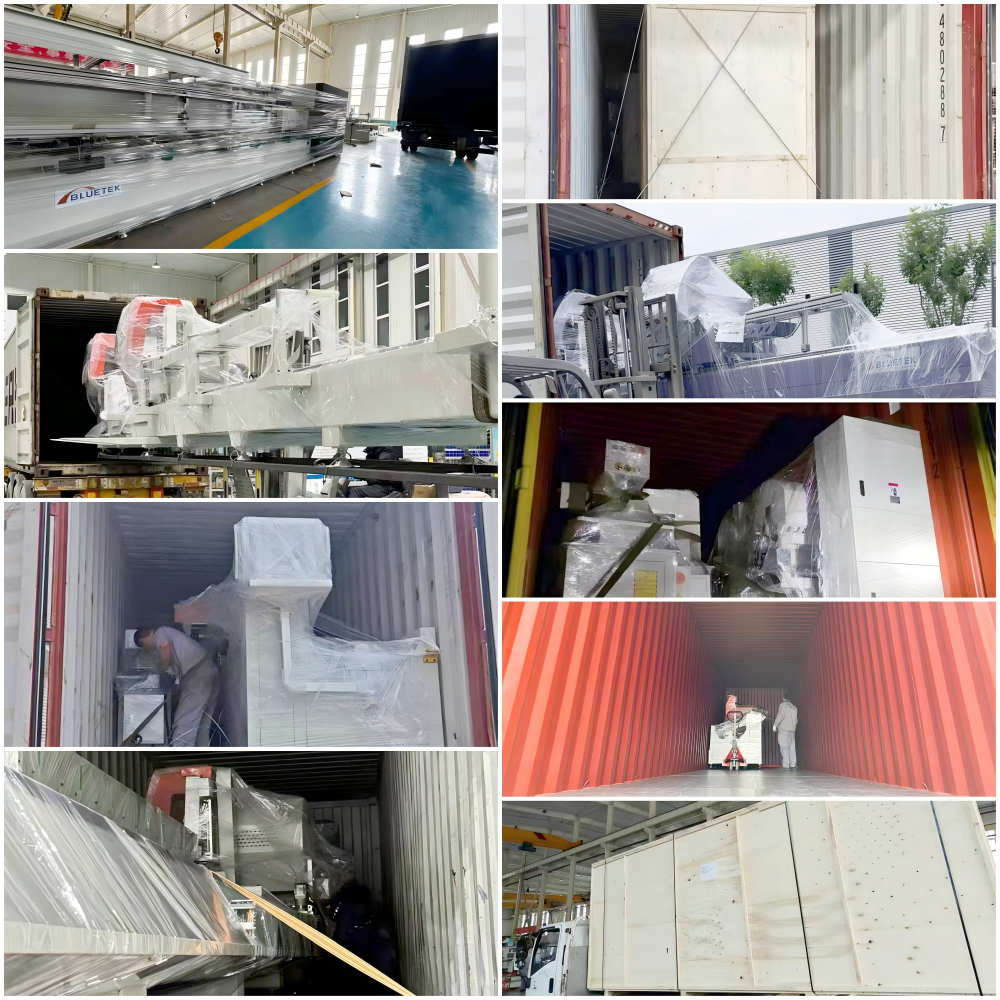

Transportation mode: By sea, rail, land
Loading mode: FCL, LCL
Packing: plastic waterproof film + plywood box
