MAIN FEATURES OF GLASS LIFTING SUCTION CUP:
1. The electric Glass Lifting Suction Cup can lift and install large or heavy glass with a weight of 400kg to 1200kg, and there are various configuration options, easy to install large and long panels and small and narrow glass panels, widely used in glass workshops and construction area.
2. The electric glass Lifting Suction Cup is equipped with a hydraulic tilting mechanism. Motorized swivel movement is optional, then the glass element can be rotated from 0° to 360°. Thanks to the double vacuum system, the maximum lifting capacity can always be fully utilized.
3. The glass regulator of glass suction cup has a radio remote control for radio remote suction and release.
4. A variety of structures and suction cups can be combined freely, equipped with a digital display pressure gauge.
5. Packed in a specially designed plywood box, the Glass Lifting Suction Cup can be easily transported without special equipment.
TECHNICAL SPECIFICATION OF GLASS LIFTING SUCTION CUP
| Capacity(kg) | Pads size | Pads Number | Battery V/AH | Charger V/A | Tilt | Vacuum Lifter Size | Packing Size(mm) | Weight(kg) |
| 400 | Φ300 | 4 | 24V/20AH | 24V/6A | 90° | 840*930 | 1100*940*500 | 160 |
| 600 | Φ300 | 6 | 24V/20AH | 24V/6A | 90° | 2420*1100 | 1100*940*500 | 175 |
| 800 | Φ300 | 8 | 24V/20AH | 24V/6A | 90° | 1980*1620 | 1100*940*500 | 190 |
| 1000 | Φ300 | 10 | 24V/20AH | 24V/6A | 90° | 1980*1620 | 1100*940*500 | 198 |
| 1200 | Φ300 | 12 | 24V/20AH | 24V/6A | 90° | 1980*1620 | 1100*940*500 | 207 |
DETAILS OF GLASS LIFTING SUCTION CUP

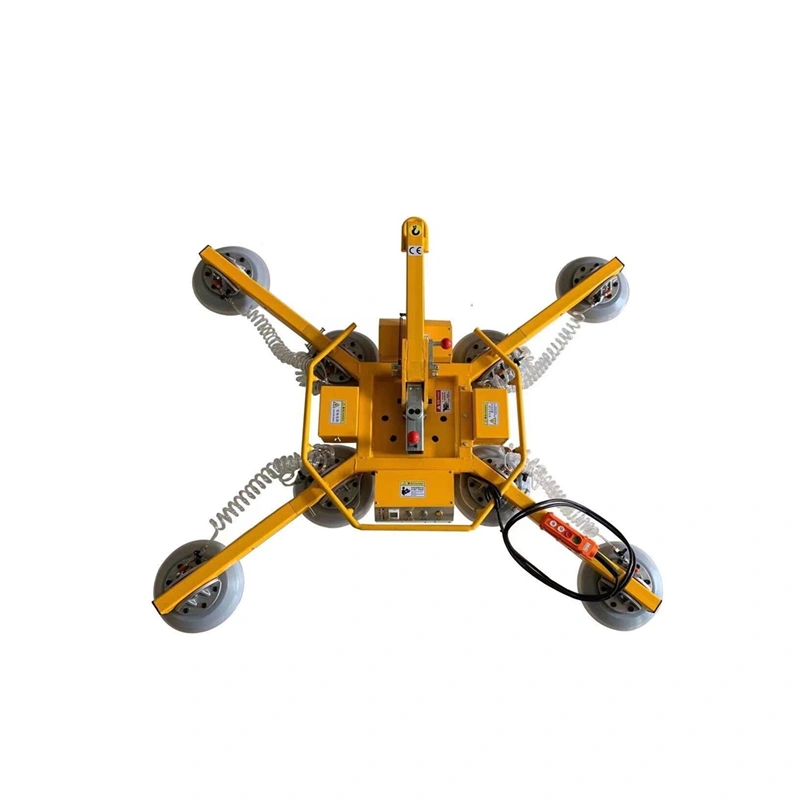

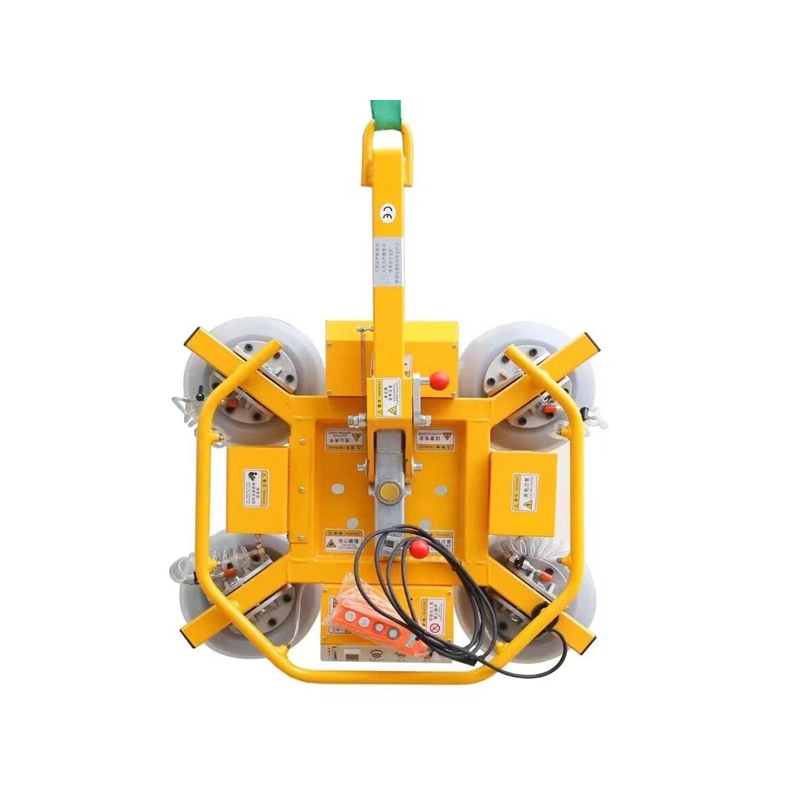

ACTUAL GLASS LIFTING SUCTION CUP IMAGES
APPLICATION SCENARIO OF GLASS LIFTING SUCTION CUP
Suitable for various high-altitude operations:
glass handling, steel plate handling, building material handling, aluminum plate handling and so on.
