MAIN FEATURES

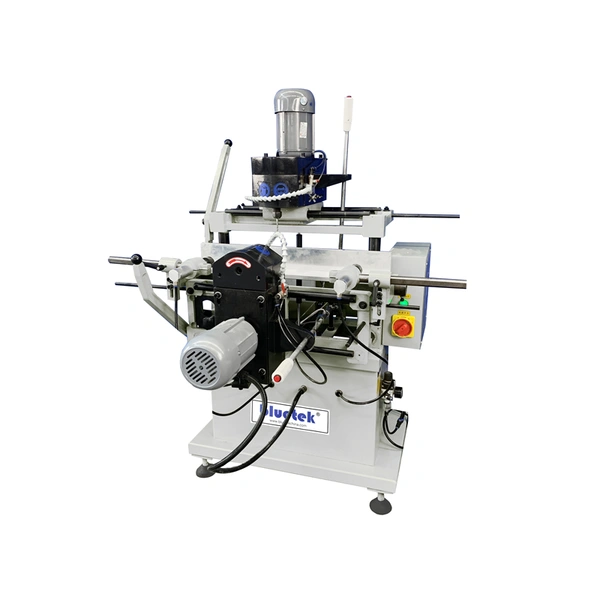

Double axis aluminium copy router for sale is also called double-head copy milling machine, is used to mill holes and slots of various shapes on aluminum door and window profiles for installing handles and other hardware.
After the aluminum material is put on and pressed, the horizontal and vertical directions can be processed without turning the profile, which improves work efficiency.
The left handle is used to control the depth of milling, and the right handle controls the shape of the milling. The size ratio of the profiling template and the actual hole is 1:1. There will be no error in size.
In order to improve and extend the tool life, double axis aluminium copy router for sale has a spray cooling device. In order to ensure that the milling process is always carried out in the state of spray cooling, the state of the spray and the pneumatic clamping are manually controlled by the same switch.
TECHNICAL SPECIFICATION
| Product Name | Aluminum Copy Router Machine for Sale |
| Model | SX01-100 |
| Power Supply | Free Customize |
| Spindle Power | 1.1 KW x 2 |
| Spindle Speed | 12000r/min |
| Air Pressure | 0.5~0.8MPa |
| Diameter of Milling Cutter | 5mm , 8mm |
| Milling Range | 300x100mm |
| Size | 1000x1000x1500mm |
| Weight | 260 KGS |
PROCESSING SAMPLE OF DOUBLE AXIS ALUMINUM COPY ROUTER MACHINE FOR SALE
