PVC WINDOW MANUFACTURING MACHINES
PVC WINDOW FOUR HEAD SEAMLESS WELDING MACHINE
DETAILS PHOTO

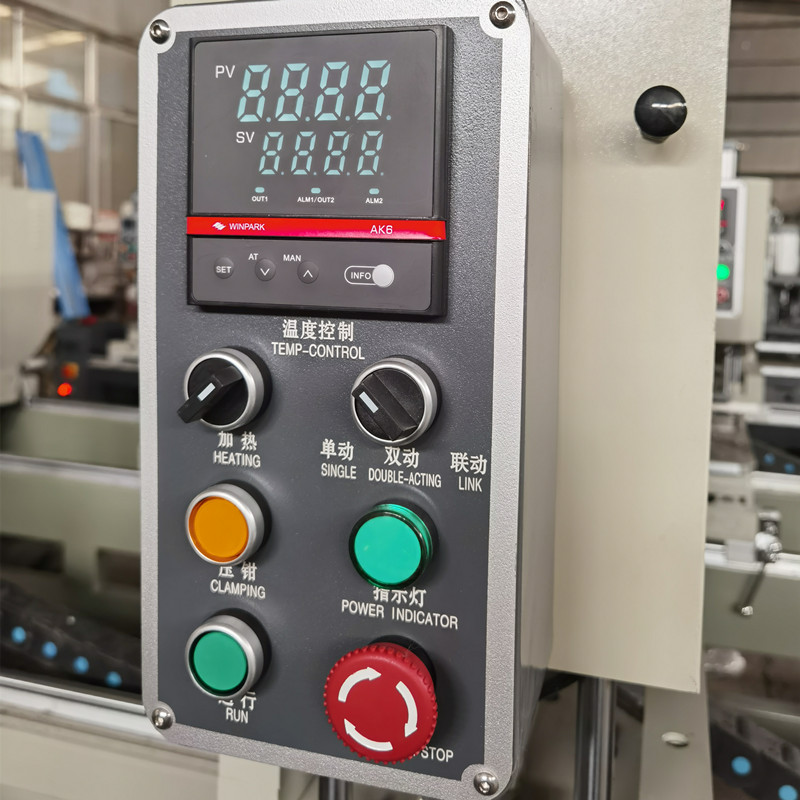

Control panel and buttons for PVC window manufacturing machines
The latest structure of the cleaning tool can maintain long-term stability and achieve perfect seamless welding.
MAIN FEATURES OF PVC WINDOW MANUFACTURING MACHINES
• The cutter adopts dual structure to cut the upper and lower sides of any PVC profile at one time in any state.
• The lower working table adopts an integrated plate structure, and the lower pressing clamp runs on a precise square rail, which is very stable and precise.
• Precision square rails are also used for the up and down movement of the welding plate to ensure full verticality during melting and increase welding strength.
• Each machine head has an independent lubrication system, which can lubricate and maintain the guide rails in the machine head.
• One-click replacement of welding cloth is very convenient.
• The cutter tool of PVC Window Seamless Welding Machine adopts Cr12MOV material, which has a long service life; the tool realizes the standardization and supports tool replacement.
TECHNICAL SPECIFICATION OF PVC WINDOW MANUFACTURING MACHINES
Model | WFH-4A | WFH-2A | WFH-1A |
Heads No. | 4 Heads | 2 heads | 1 head |
Power Supply | Free Customize | Free Customize | Free Customize |
Input Power | 3.5 KW | 2.5 KW | 1.5 KW |
Air Pressure | 0.6~0.8 MPa | 0.6~0.8 MPa | 0.6~0.8 MPa |
Welding Height | 120mm | 120mm | 120mm |
Welding Width | 120mm | 120mm | 120mm |
Welding Length | 450~4500mm | 450~4500mm | / |
Weight | 2000 KG | 1300 KG | 400 KG |
Machine Size | 5400*1200*2000mm | 5400*1200*2000mm | 900*1200*1800mm |
How to choose PVC window manufacturing machines ？
1. PVC WINDOW DOOR CUTTING SAW
There are many kinds of PVC cutting saws, double head cutting saw, single head cutting saw, CNC full cutting saw, semi automatic cutting saw. customer can choose the suitable cutting saw based on budget. According our experience LJZ2-450x3700 and SJZ2-350x3500 are most popular for foreign countries. If need higher degree of automation ， SSJ07-CNC-450x3600 CNC double mitre cutting saw is best in China.
2. GLAZING BEAD CUTTING SAW
It's normal type is enough for most customers , even it has CNC type glazing bead cutting saw. It's worktable can adjust height to chamfer.
3. END MILLING MACHINE
It is used for cutting /milling window mullion end-face , so that the mullion end can match and joint with crossbeam. The cutter should be customized for different mullion profiles. It can process aluminium window also.
4. COPY ROUTING MACHINE WITH TRIPLE DRILLING
This machine not only can mill holes and slot for hardware , but also can drill triple holes for lock.
5. WATER SLOT MILLING MACHINE 2/3 AXIS
It can mill drain holes for 3 directions, finishing by one time.
6. SCREW DRILLING FASTENING MACHINE
We have single / two / four/ head screw drilling machine and CNC automatic screw drilling machine. Add a steel lining to the cavity of the PVC profile and fix with a screw fastening machine to improve the strength of PVC doors and windows.
7. FOUR HEAD PVC WINDOW WELDING MACHINE
PVC window welding machine is the MOST IMPORTANT in all these machines. It not only determines the production output of PVC doors and windows, but also determines the quality and aesthetics.
CNC 4 Corner Welding Machine and Four Head Welding Machine are good for large factory ; Three Head PVC Window Welding Machine , Double head Welding Machine and Single Head Welding Machine are suitable for middle and small factory.UPVC Window Making Machine Best Price in India.
Now Four Head PVC Window Welding Machine is more and more popular. After welding window it can cut welding slag at same time, window corner is more beautiful and corner strength is also high.
The best choice is BLUETEK brand Double Head UPVC window seamless welding machine , We have mastered the best seamless welding technology, which can bring customers better products and increase selling points.
8. PVC WINDOW CORNER CLEANING MACHINE
We have CNC corner cleaning machine with 3 tools . 5 tools or 6 tools, also have Semi automatic corner cleaning machine as a economical choice, and portable corner cleaning machine is also available.
9. PVC WINDOW ARC BENDING MACHINE
It is necessary machine to produce arc window . We recommend electric heating type , not oil heating.
