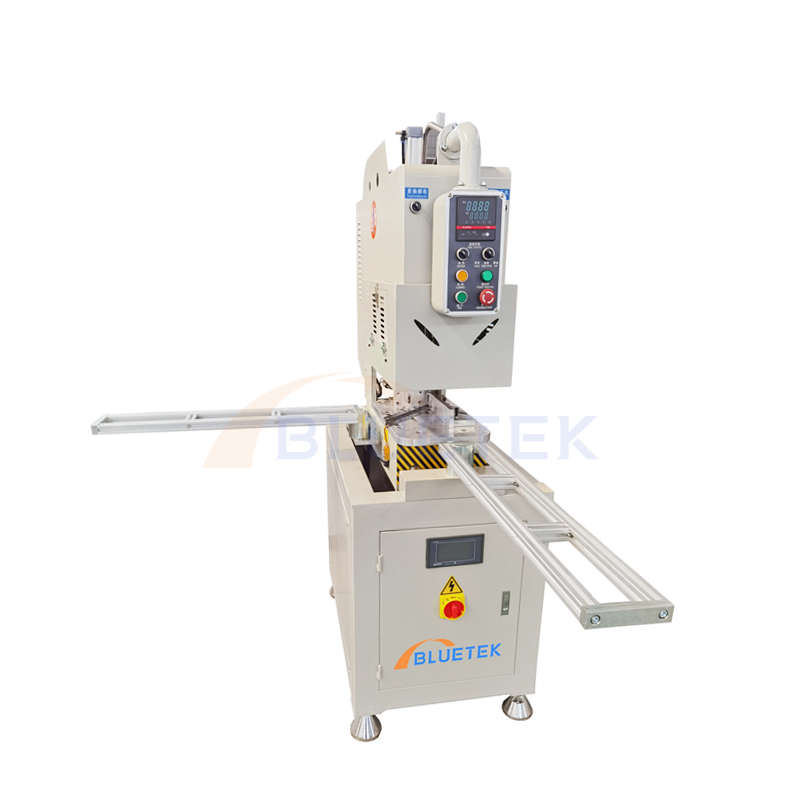

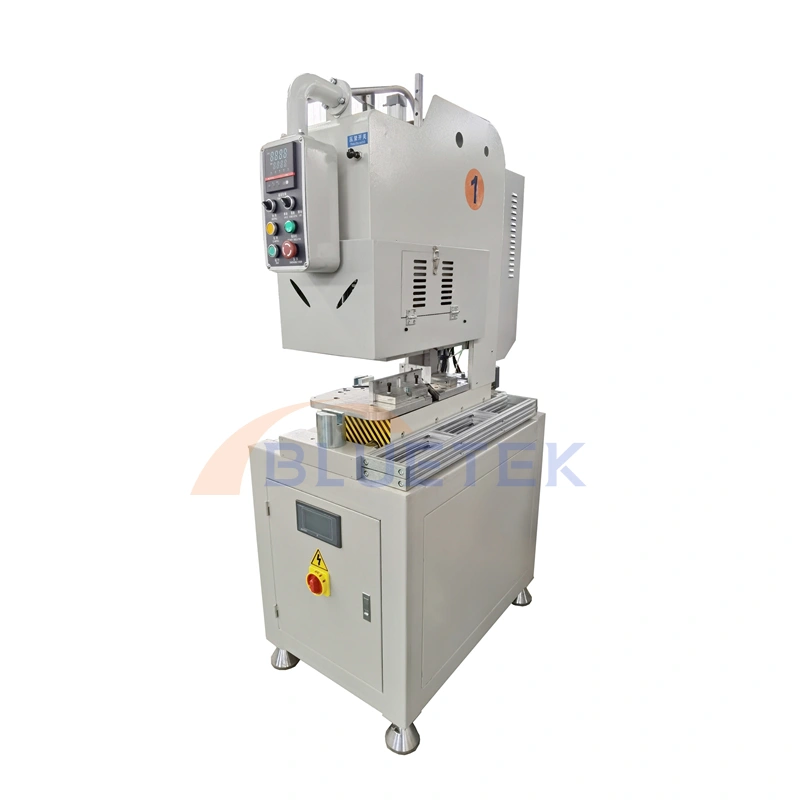

PVC WINDOW SINGLE HEAD WELDER FOR SEAMLESS WELDING
SINGLE HEAD PVC WINDOW DOOR SEAMLESS WELDING MACHINE
MAIN FEATURES
• Best PVC Window Single Head Seamless Welder Machine in China.
• Double sides seamless welding for 0.2mm seam.
• It can process white PVc and colored PVC both.
• PLC and teamperature controller are from Omron ,Japan.
• It's movement structure adopts precise linear square rail, high precision and stable operation.
TECHNICAL SPECIFICATION
| Model | WFH-1A |
| Name | PVC Window Single Head Welder |
| Power Supply | Free Customize |
Input Power | 1.5 KW |
Air Pressure | 0.6~0.8 MPa |
Welding Height | 120mm |
Welding Width | 120mm |
Weight | 400 KG |
Machine Size | 900*1100*1700mm |
DETAILS OF PVC WINDOW SINGLE HEAD WELDER FOR SEAMLESS WELDING
Welding head of PVC window single head welder has 8 pieces of knives, not only can weld 90 degrees corner, but also weld T mullion, both seamless 0.2mm
Simple and intuitive operation panel, the buttons are from Schneider, and the temperature controller is from a well-known Chinese brand.
The lubricating oil pot behind the machine head automatically fills the machine's guide rails and other mechanical structures with oil to prevent rust and prolong life.
More Options :
1. Two Heads PVC Window Seamless Welding Machine
2. Four heads PVC Window Seamless Welding Machine
3. CNC Four Corners Welding Machine
