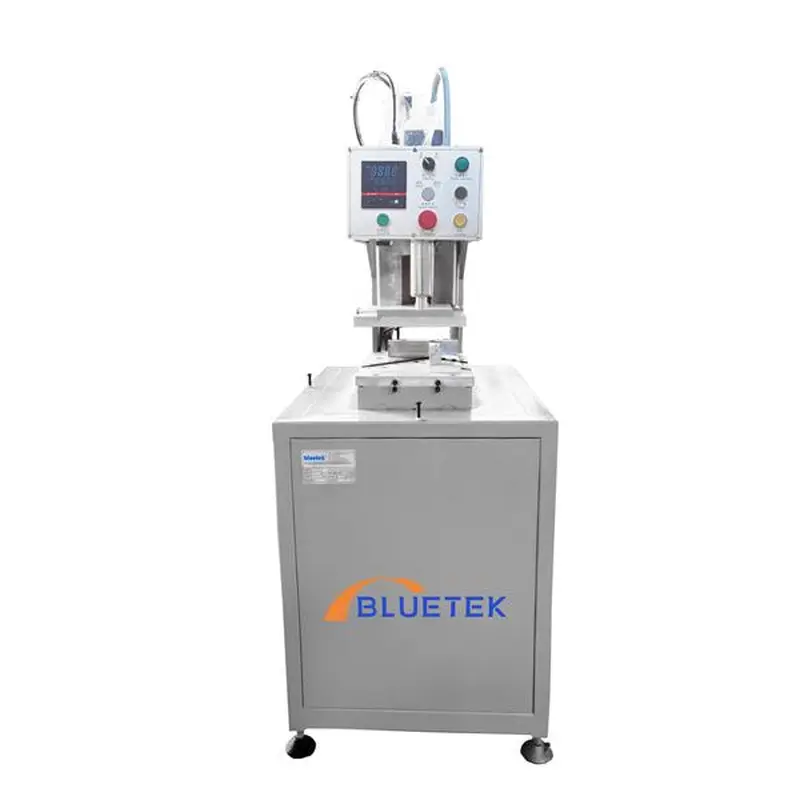

BEST PRICE SINGLE HEAD PVC WINDOW WELDING MACHINE
MAIN FEATURES
• Single head PVC window welding machine is the most economical PVC door and window welding machine.
• The welding angle is 90 degrees, and an angle ruler can be installed to adjust to any angle.
• Can weld mullion of doors and windows.
• Operation Process:
Turn on the heating switch and wait for the temperature to rise to about 250 degrees Celsius;
Press "RUN" , the positioning plate rises, place the first piece of PVC profile in back;
Press "CLAMP" , the back press clamp falls;
Place the second piece of PVC profile in front, press "CLAMP", the front press clamp will fall;
Press the "RUN", the positioning plate will be lowered to the bottom of the table, and heating plate will be dropped from the top to the middle of the two profiles, the single head pvc window welding machine will automatically complete the corner welding, jointting, cooling, a window corner is finished.
TECHNICAL SPECIFICATION
| Model | HJ02-120 |
| Power Supply | 220V 50Hz Single Phase |
Input Power | 1.5KW |
Air Pressure | 0.6~0.8 MPa |
Welding Height | 120mm |
Welding Width | 120mm |
Weight | 300 KG |
Machine Size | 900*1000*1700mm |
DETAILS PHOTO OF SINGLE HEAD PVC WINDOW WELDING MACHINE
Top and bottom clamps and heating plate, heating temperature can reach 250~260 degrees Celsius
Control panel and buttons of single Head PVC Window Welding Machine
Pressing cylinder is from China famous brand - EASUN
PACKING OF SINGLE HEAD PVC WINDOW WELDING MACHINE
The outer packaging of each single-head welding machine adopts a fumigation-free wooden box, and the packaging size is about 1000*1000*1800mm
