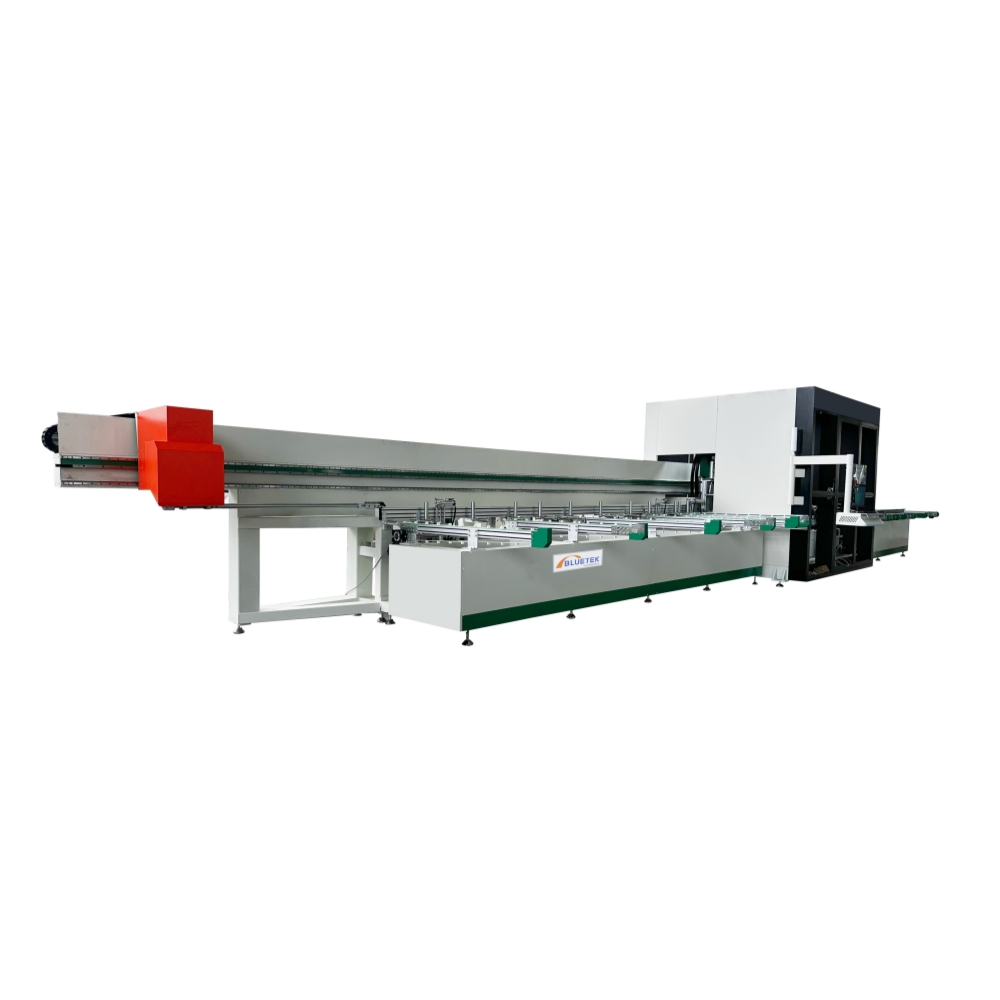

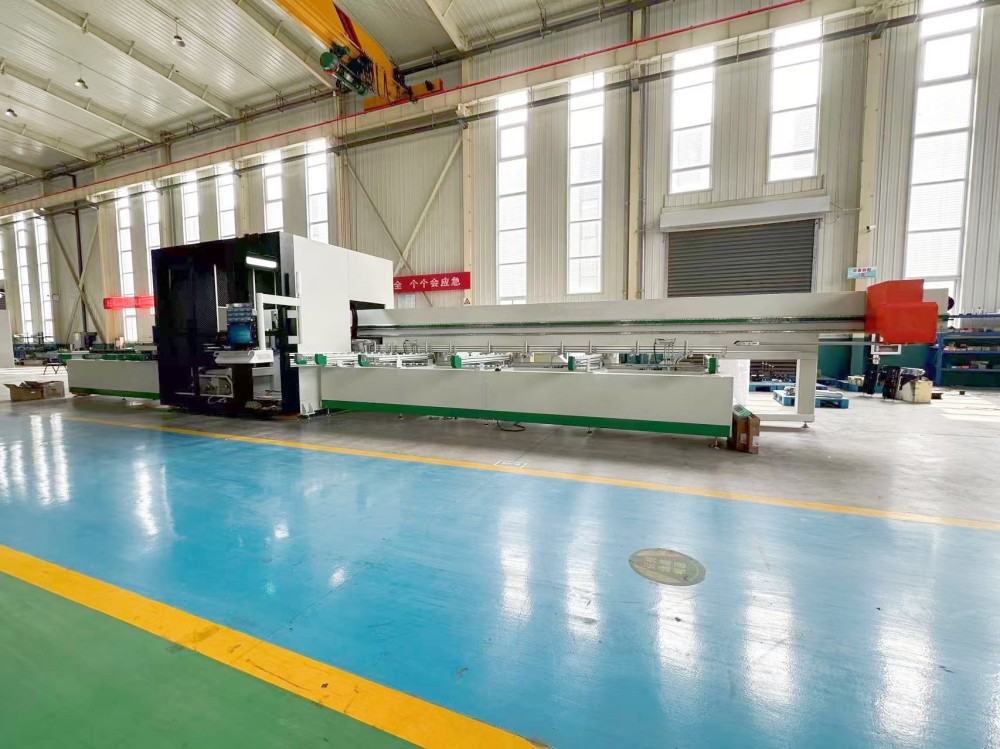

The whole Aluminum Window Door Workstation is divided into three parts : Automatic loading mechanism, Composite processing cabin, and Automatic unloading mechanism.
This workstation is an innovative and developed intelligent workstation to solve the problem of diversification, batching, labor-intensive, and low production capacity of home decoration doors and windows. From loading, compound processing, and unloading, the glue injection holes, corner holes, pin holes, drainage holes, mounting holes, key holes, lock box holes, mullion markings, driver chamfering, and 45 / 90 degrees cutting are all completed in one go.
Aluminum window door workstation has16 bus servo axes, 8 pieces of milling spindles, 3 saw blades, and 2 laser markings. Realized by CNA communication, frequency converter, driver, and PLC program control, the data transmission is stable and fast, and the processing accuracy is very high.
Intelligent three-zone processing technology: The composite processing cabin is composed of milling unit, sawing unit and a drilling unit. These three units process at the same time without interfering with each other.
Cutting angles of aluminum window door workstation: Two fixed 45-degree angles - up cutting ; one fixed 90-degree angle - horizontal cutting.
Tools 1 , 2 : Laser marking
Tools 3, 4, 5, 6 : Lock hole, Water slot, Installation hole, ...
Tools 7, 9 ： Conrer connect hole, Pin hole
Tools 8, 10 : Glue injection hole
Automatic unloading device and printer. The length of the unloading table can be customized according to customer requirements.
SZA610 Aluminum Window Door Workstation adopts industrial-grade computer systems and bus servo drive control units, which are connected with ERP management software and door and window software to achieve intelligent production and management.
High precision, high efficiency for making aluminum window door.
TECHNICAL PARAMETERS OF SZA610 ALUMINUM WINDOW DOOR WORKSTATION
| Model | SZA610 |
| Product Name | Aluminum Window Door Workstation |
| Power Voltage | 380V 0Hz 3 Phase or As Request |
| Total Power | 45.55KW |
| Spindle Speed | 2850 r/min |
| Diameter of Saw Blade | Φ 550x4.4xΦ30 120T |
| Cutting Angles | Left 45° , Right 45° , 90° |
| Processing Range Height * Width | 150*180 mm |
| Processing Length | 100~6500 mm |
| Cutting Accuracy | ±0.2MM |
| Loading Quantity of Bars | 9+1 pcs |
| Manipulator Feeding Stroke | 6500 mm |
| Manipulator Discharge Stroke | 1000 mm |
| Blade Cutting Speed | 20~25 M/min |
| Overall Dimension | 17000*4000*3000 mm |
| Gross Weight | 12000 KGS |
